Operating Cylinder: Installation

WARNING: This page is about a different variant/trim than selected.

Install in the reverse order of removal.
NOTE: Before installing operating cylinder, apply grease (SUNLIGHT 2: P/N 003602010) to contact point of release lever and operating cylinder.
1. Tightening torque:
2. T1: 18 N.m (1.8 kgf-m, 13.0 ft-lb)
3. T2: 37 N.m (3.8 kgf-m, 27.5 ft-lb)

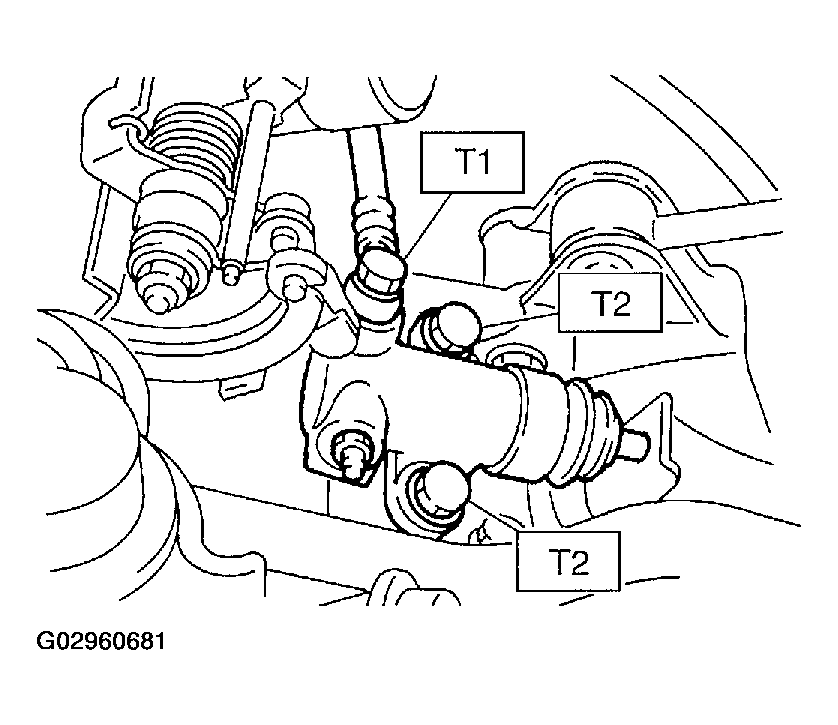

Fig 1: Installing Operating Cylinder To Transmission
Courtesy of SUBARU OF AMERICA, INC.
After bleeding air from operating cylinder, ensure that clutch operates properly.
1. Refer to CLUTCH FLUID AIR BLEEDING .
