Transmission Control Module (TCM) I/O Signal: Measurement: Waveform

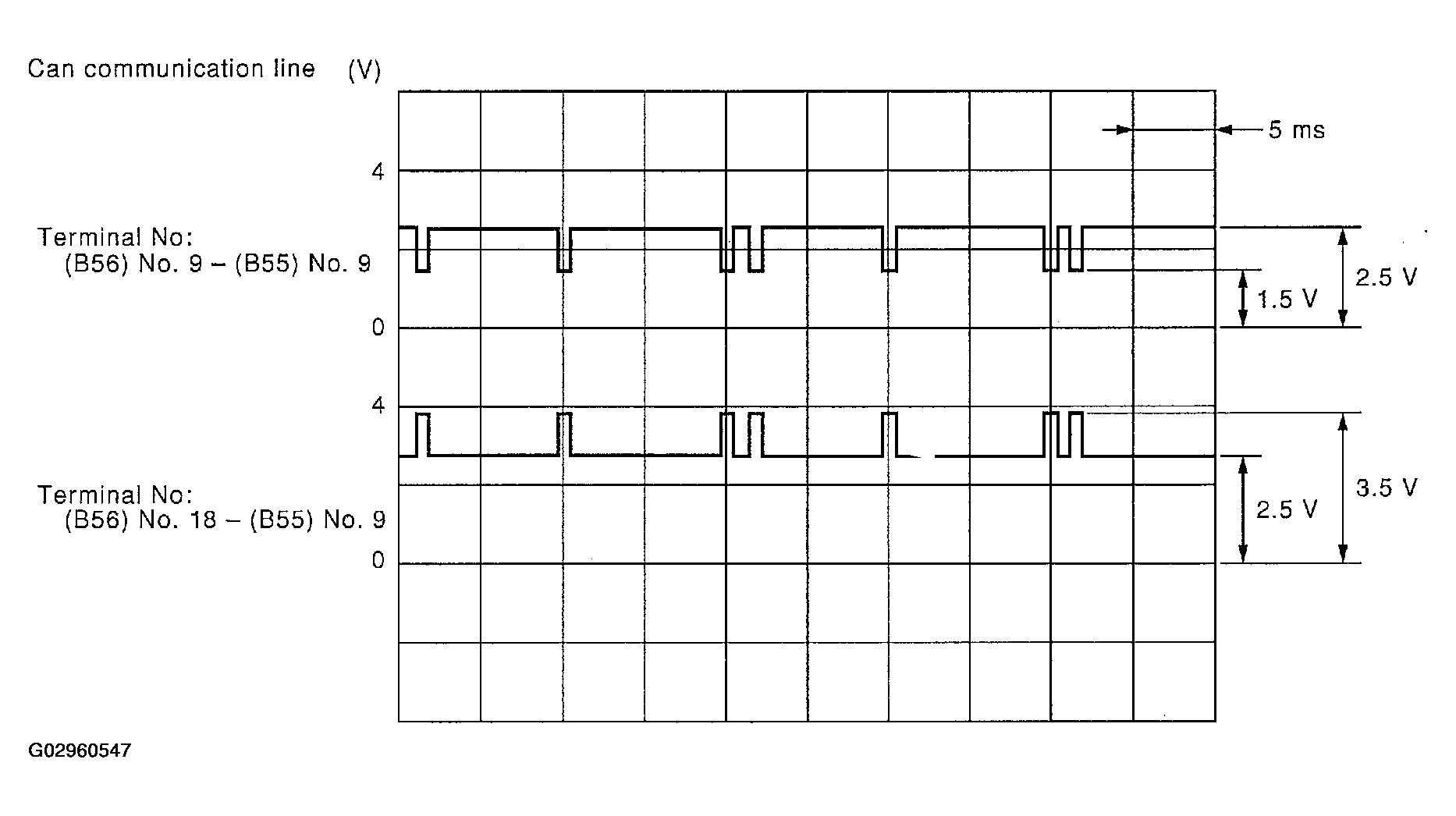

Fig 1: Measuring Input/Output Signal Voltage Waveform
G02960547Courtesy of SUBARU OF AMERICA, INC.
