Automatic Trans
>>
Automatic Transmission (Diagnostics)
>>
Transmission Control Module (TCM) I/O Signal
>>
Schematic
>>
Without VDC System
April 5, 2026:
LEMON Manuals is launched!
Read the announcement.
Without VDC System

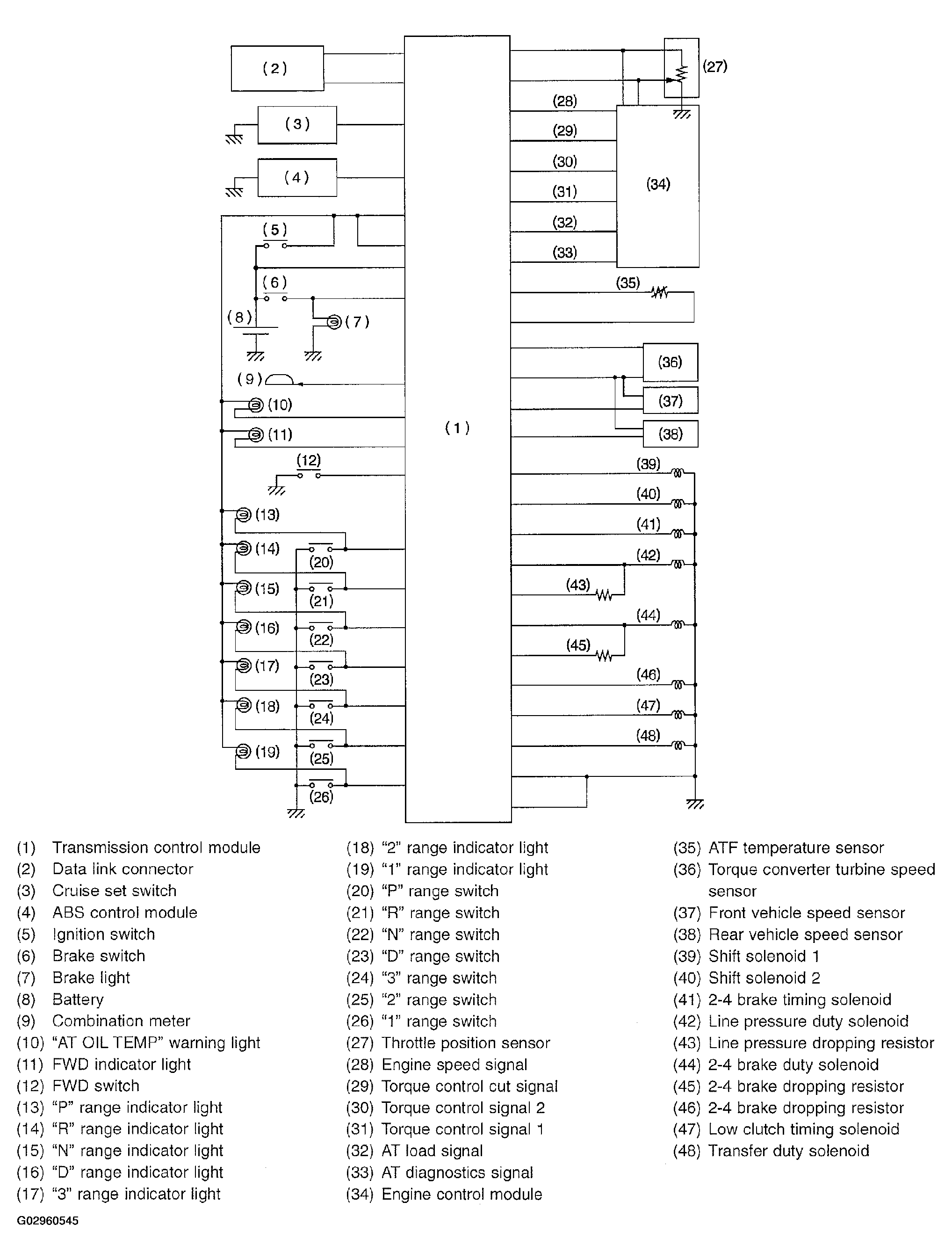

Fig 1: Transmission Control Module Schematic - Without VDC System
Courtesy of SUBARU OF AMERICA, INC.
