Control Valve Body: Installation

Set the select lever in "N" position.
Install the control valve and ground earth connectors.
1. Tightening torque: 8 N.m (0.8 kgf-m, 5.8 ft-lb)

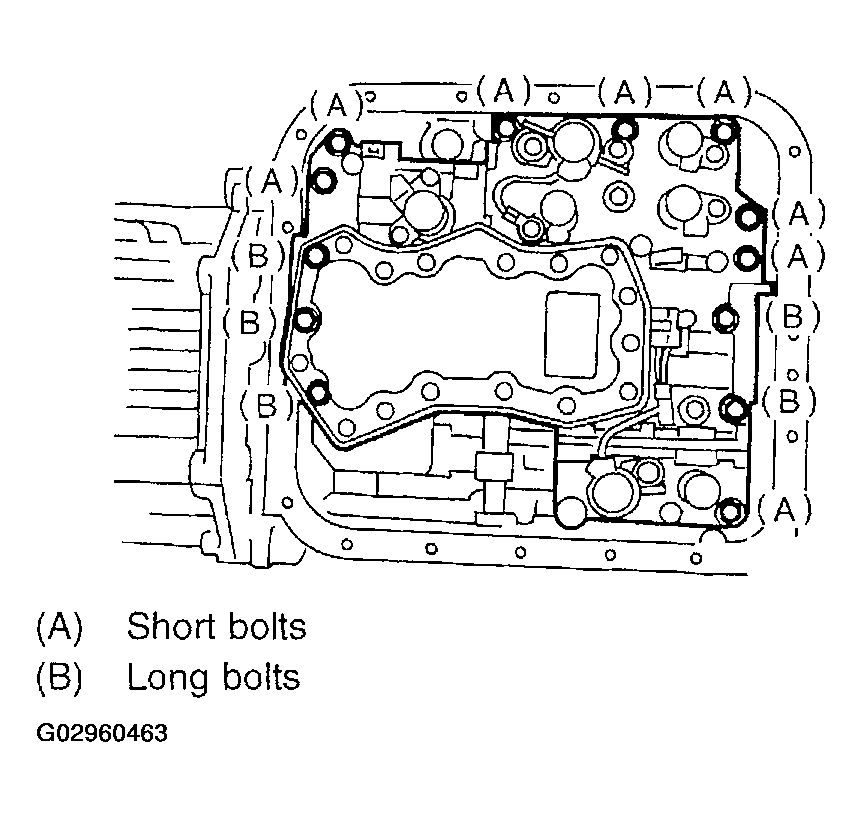

  Fig 1: Installing Control Valve
  Courtesy of SUBARU OF AMERICA, INC.
Connect all connector.

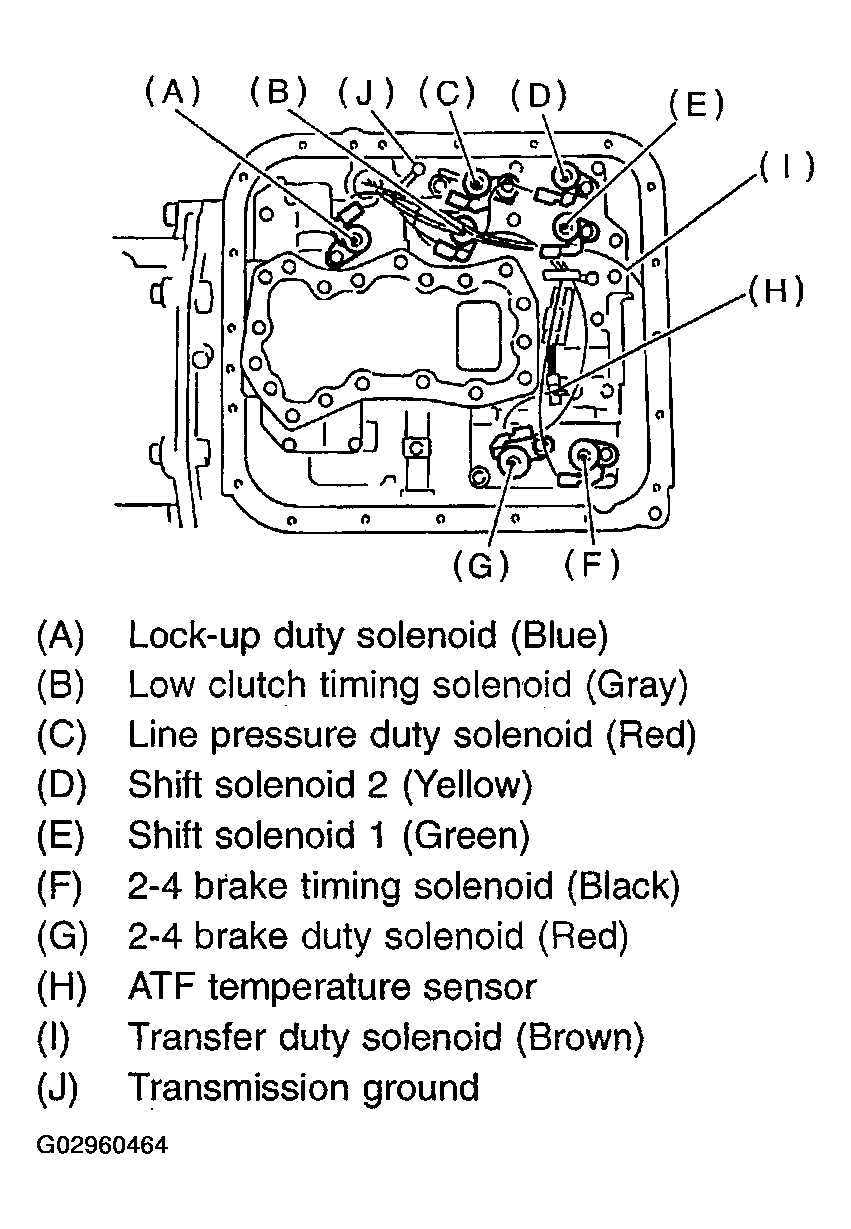

Fig 2: Connecting All Connectors
Courtesy of SUBARU OF AMERICA, INC.
Attach the magnet at the specified position.

Fig 3: Attaching Magnet
Courtesy of SUBARU OF AMERICA, INC.
Apply proper amount of liquid gasket to the entire oil pan mating surface.
1. Fluid packing: THREE BOND 1217B

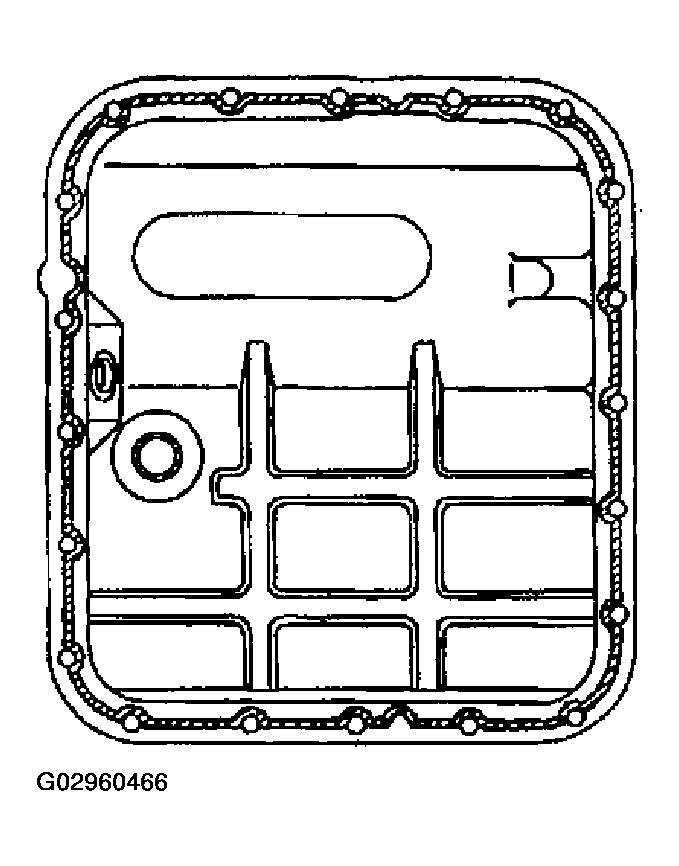

Fig 4: Applying Proper Amount Of Liquid Gasket To Entire Oil Pan Mating Surface
Courtesy of SUBARU OF AMERICA, INC.
Apply liquid gasket fully to 3 holes other than screw holes on the transmission case.
1. Fluid packing: THREE BOND 1217B

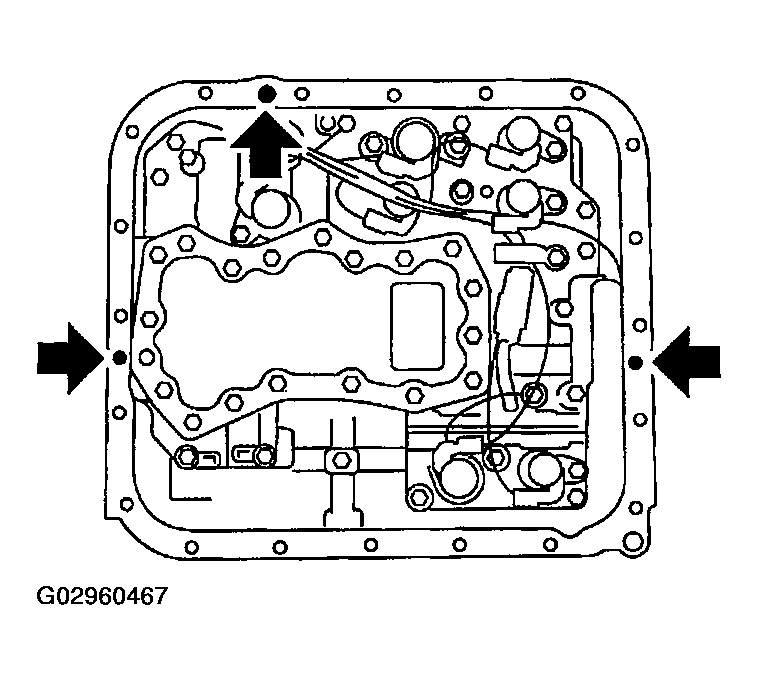

Fig 5: Applying Liquid Gasket Fully To Three Holes
Courtesy of SUBARU OF AMERICA, INC.
Install the oil pan.
NOTE: Uniformly tighten the bolts in several passes.
1. Tightening torque: 4.9 N.m (0.5 kgf-m, 3.6 ft-lb)
Pour ATF into the oil charge pipe.
1. Recommended fluid: Dexron III type automatic transmission fluid
2. Fluid capacity: 9.3 - 9.6 l (9.8 - 10.1 US qt, 8.2 - 8.4 Imp qt)
Check the level of the ATF.
