Transmission Control Module (TCM): Installation

  1. Install transmission control module.
    1. Tightening torque:  7.5 N.m (0.76 kgf-m, 5.5 ft-lb)

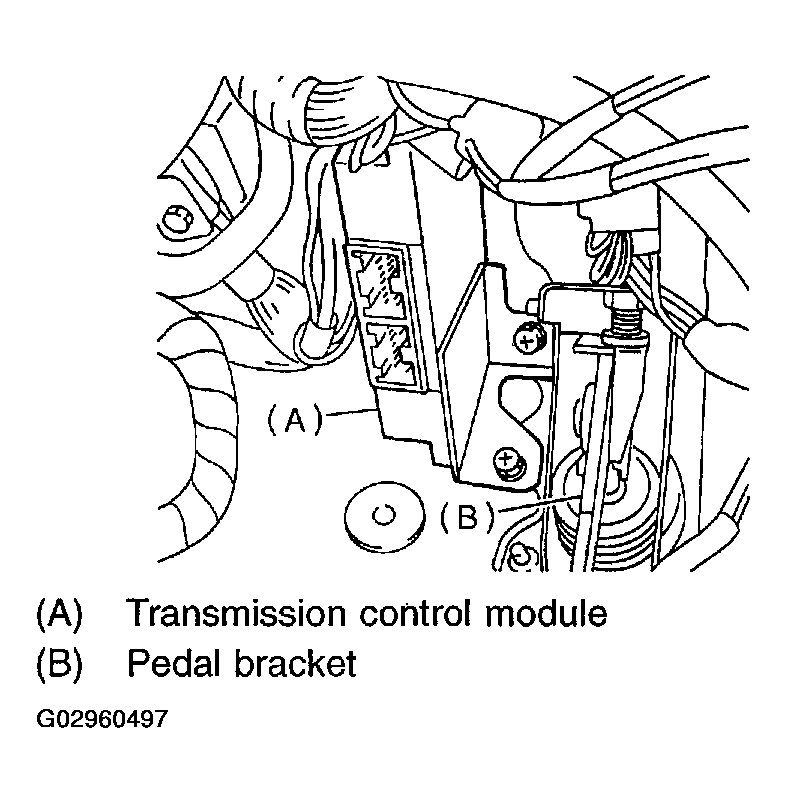

    Fig 1: Installing Transmission Control Module (MPT Model)
    G02960497Courtesy of SUBARU OF AMERICA, INC.

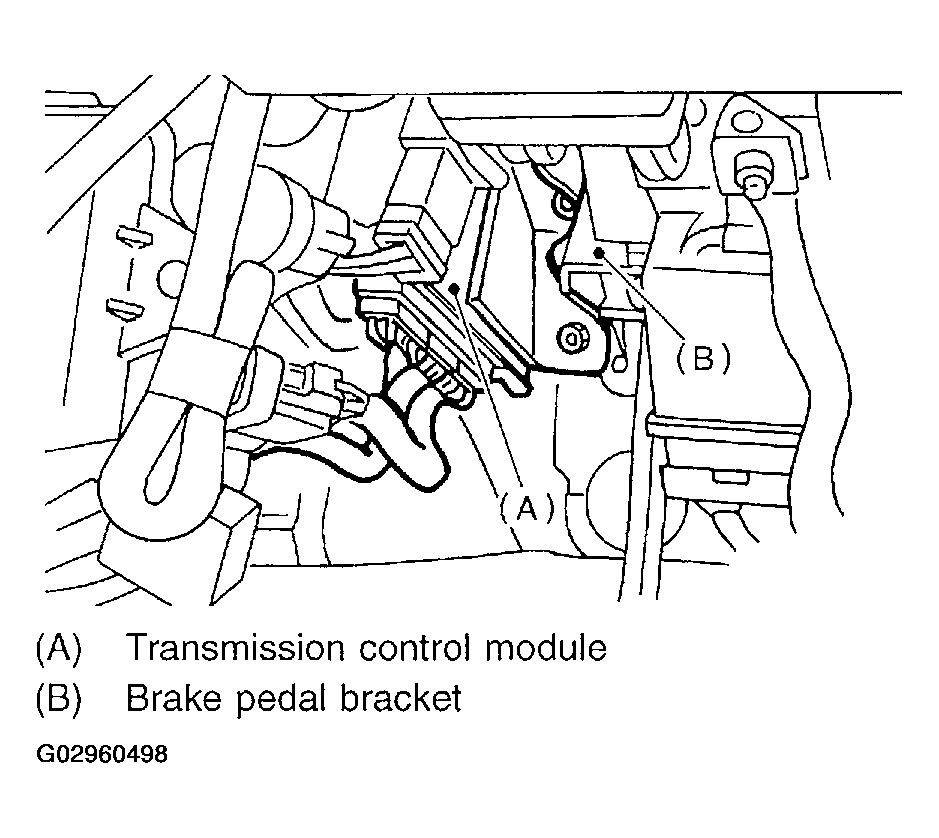

    Fig 2: Installing Transmission Control Module (VTD Model)
    G02960498Courtesy of SUBARU OF AMERICA, INC.
  2. Connect connectors to transmission control module.
  3. Install in the reverse order of removal.
