Transmission Control Module (TCM): Removal

Disconnect battery ground cable.

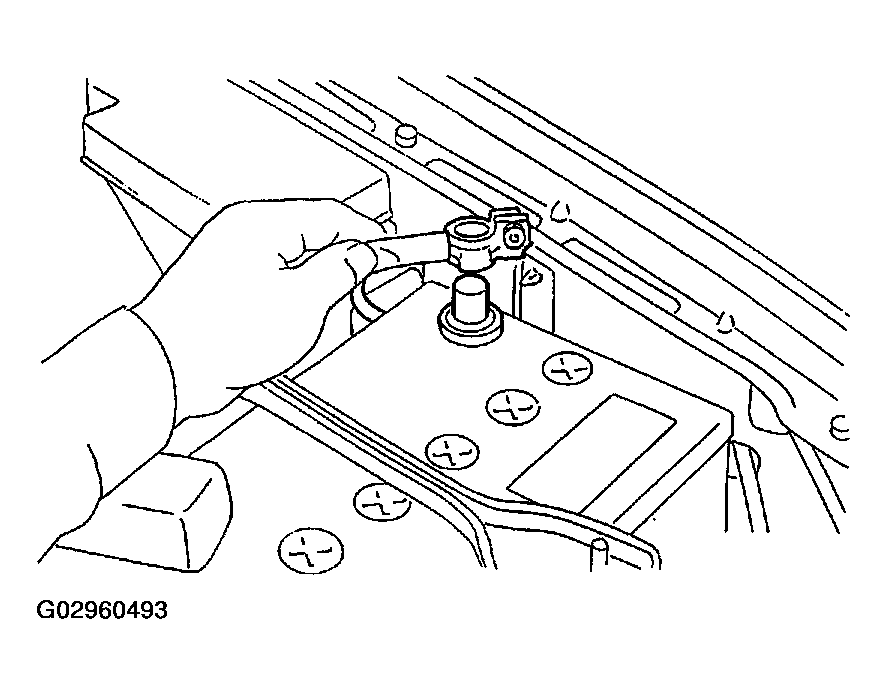

Fig 1: Disconnecting Battery Ground Cable
Courtesy of SUBARU OF AMERICA, INC.
Remove lower cover and then disconnect connector.

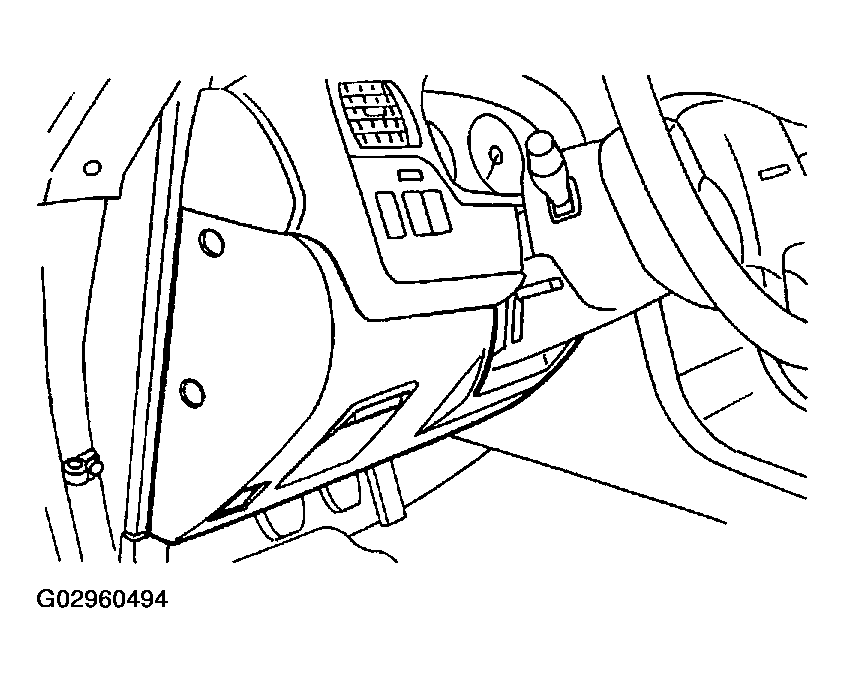

Fig 2: Removing Lower Cover & Disconnecting Connector
Courtesy of SUBARU OF AMERICA, INC.
Disconnect connectors from transmission control module.

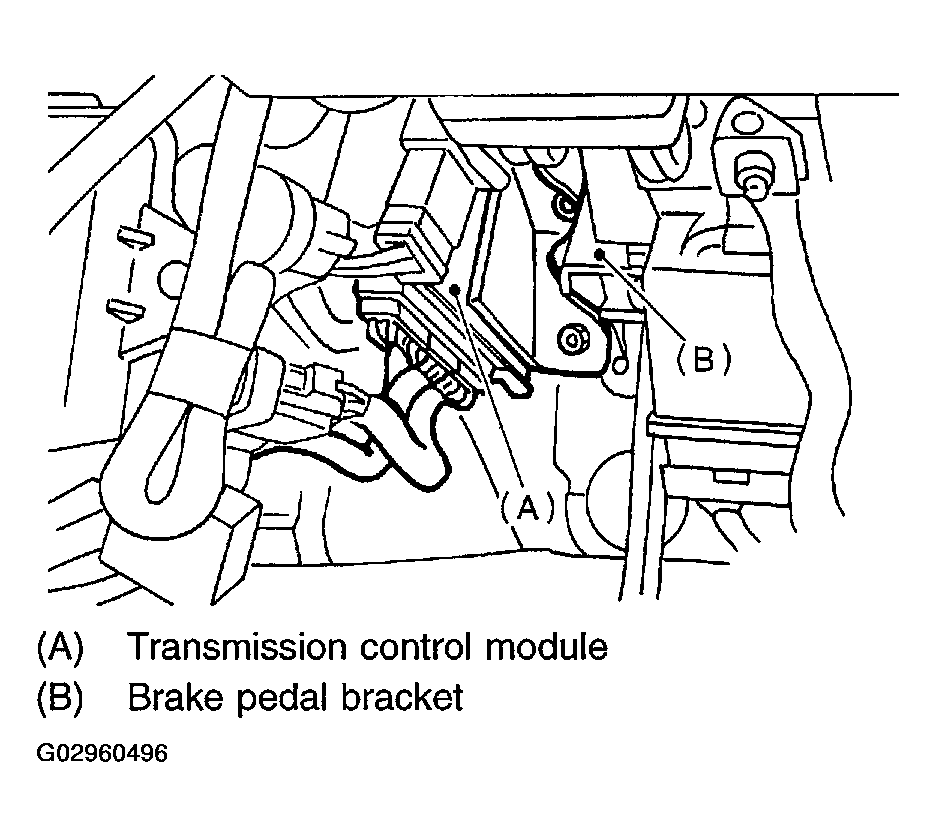

Fig 3: Disconnecting Connectors From Transmission Control Module (MPT Model)
Courtesy of SUBARU OF AMERICA, INC.

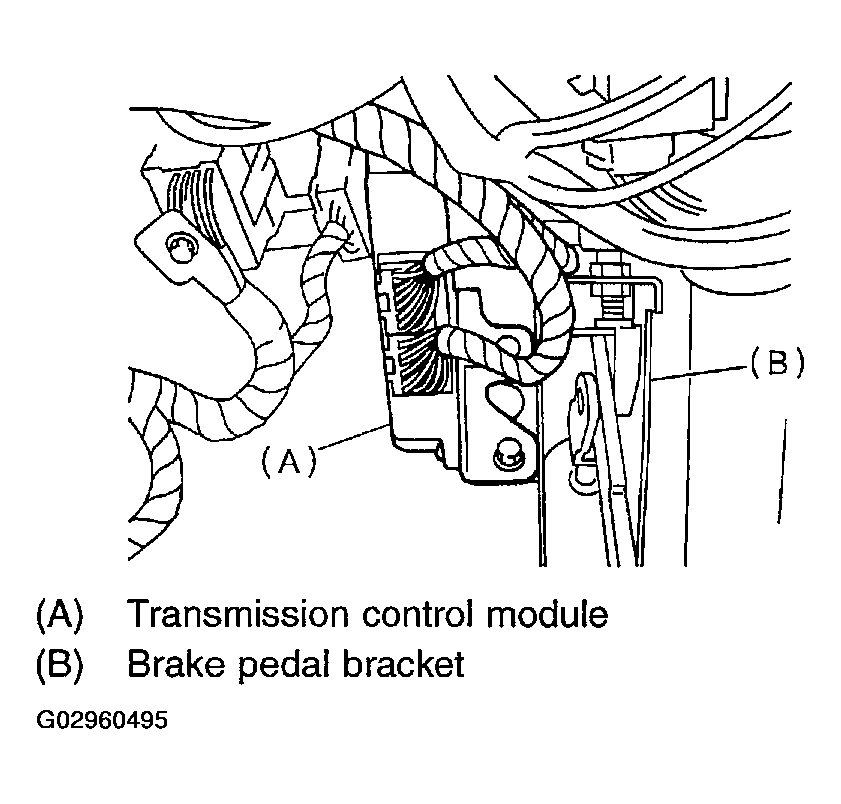

Fig 4: Disconnecting Connectors From Transmission Control Module (VTD Model)
Courtesy of SUBARU OF AMERICA, INC.
Remove transmission control module.
