Select Lever Shift Lock Cannot Be Released

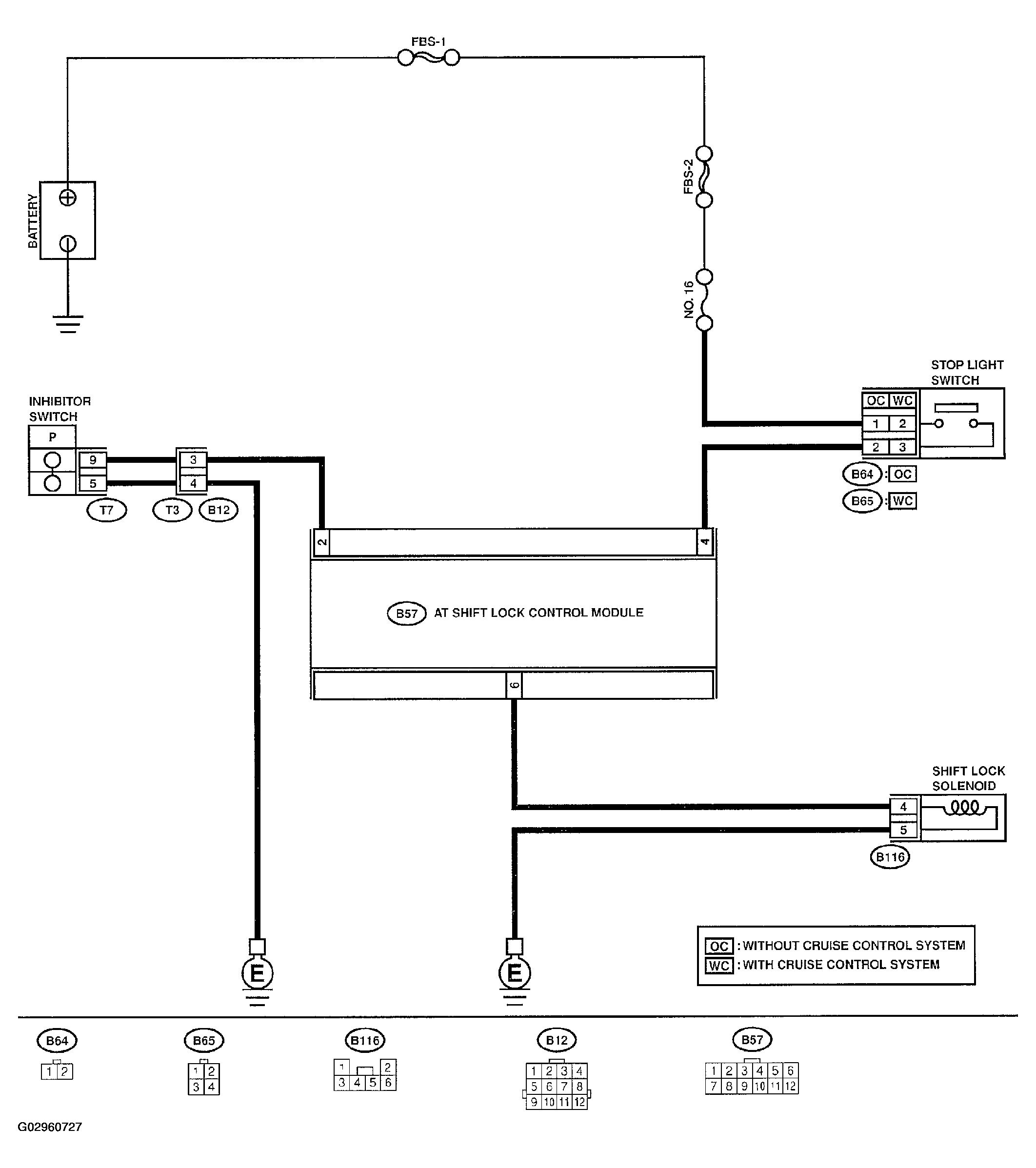

Fig 1: Select Lever Shift Lock Cannot Be Released Wiring Diagram

Courtesy of SUBARU OF AMERICA, INC.

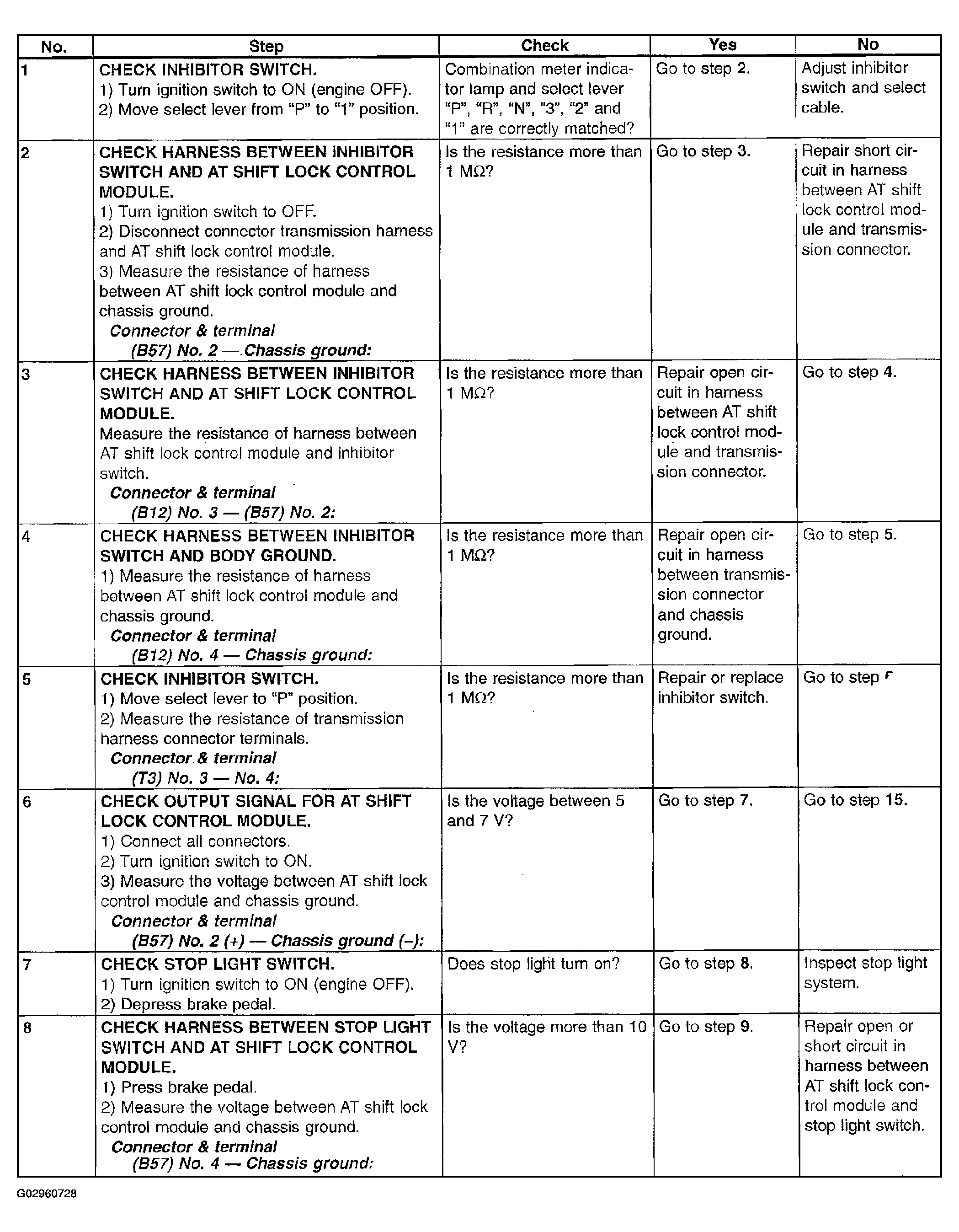

Fig 2: Select Lever Shift Lock Cannot Be Released Inspection Chart (1 Of 2)

Courtesy of SUBARU OF AMERICA, INC.

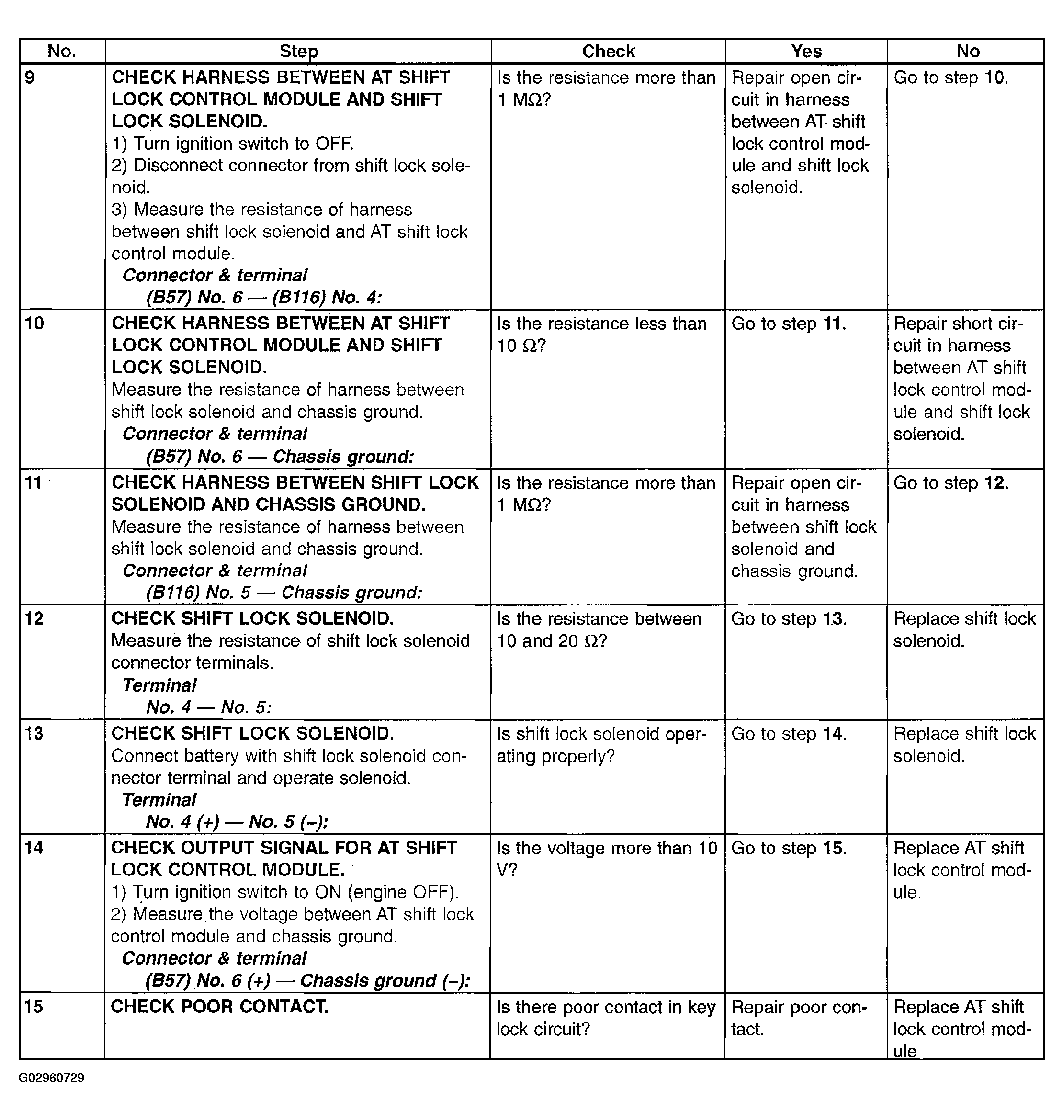

Fig 3: Select Lever Shift Lock Cannot Be Released Inspection Chart (2 Of 2)

Courtesy of SUBARU OF AMERICA, INC.
