Computers and Control Systems

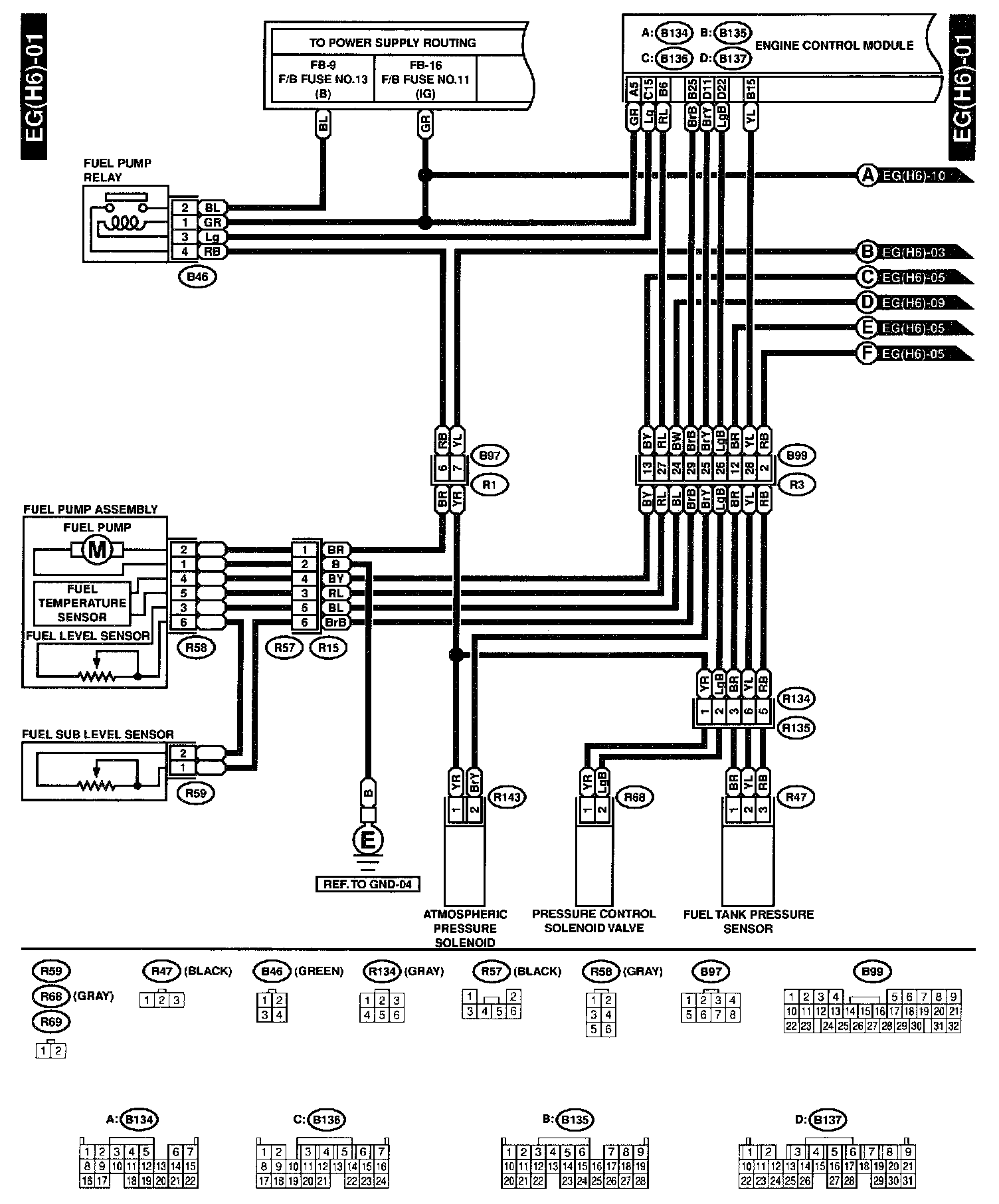

EG(H6)-01 - Engine Electrical System:

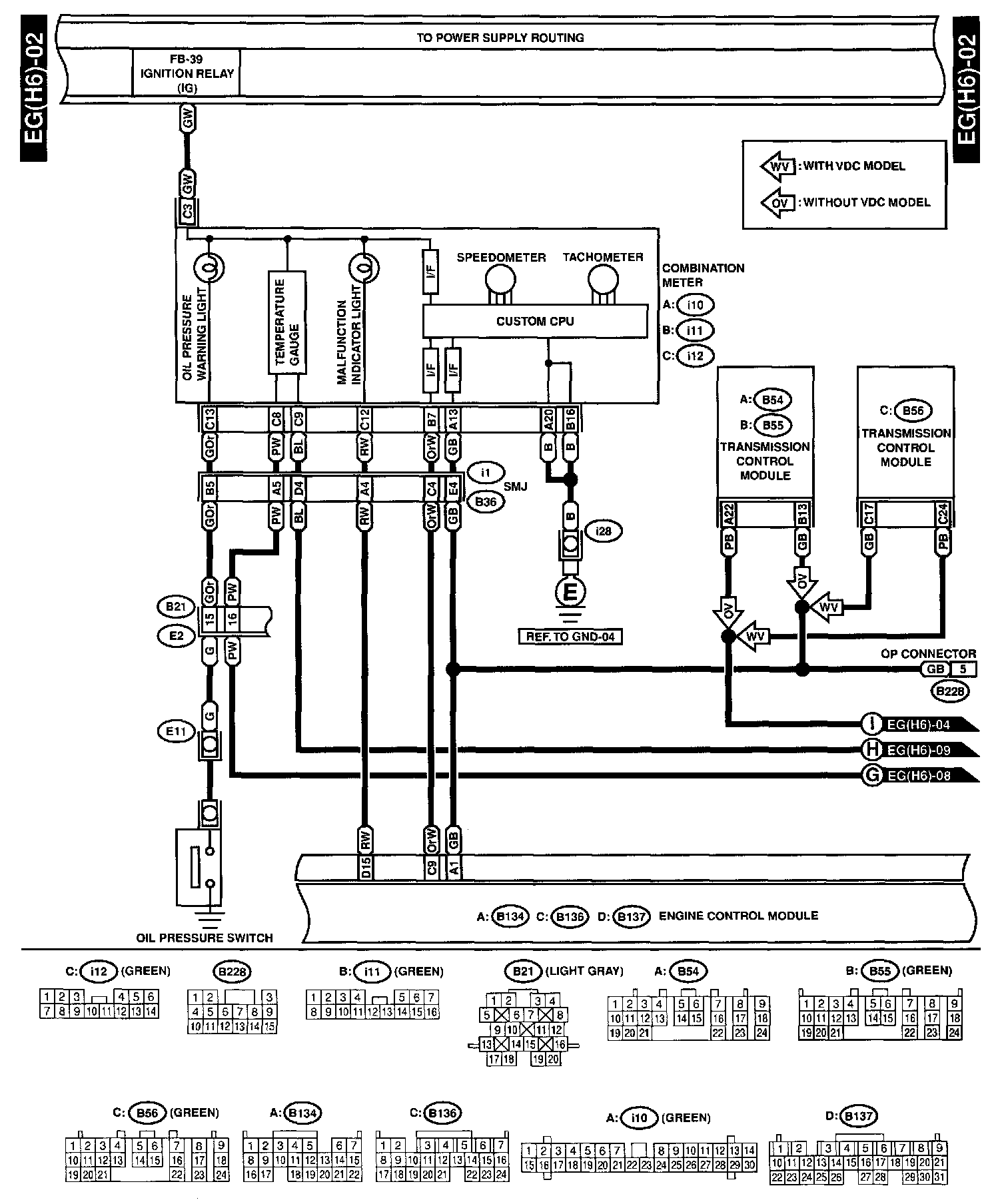

EG(H6)-02 - Engine Electrical System:

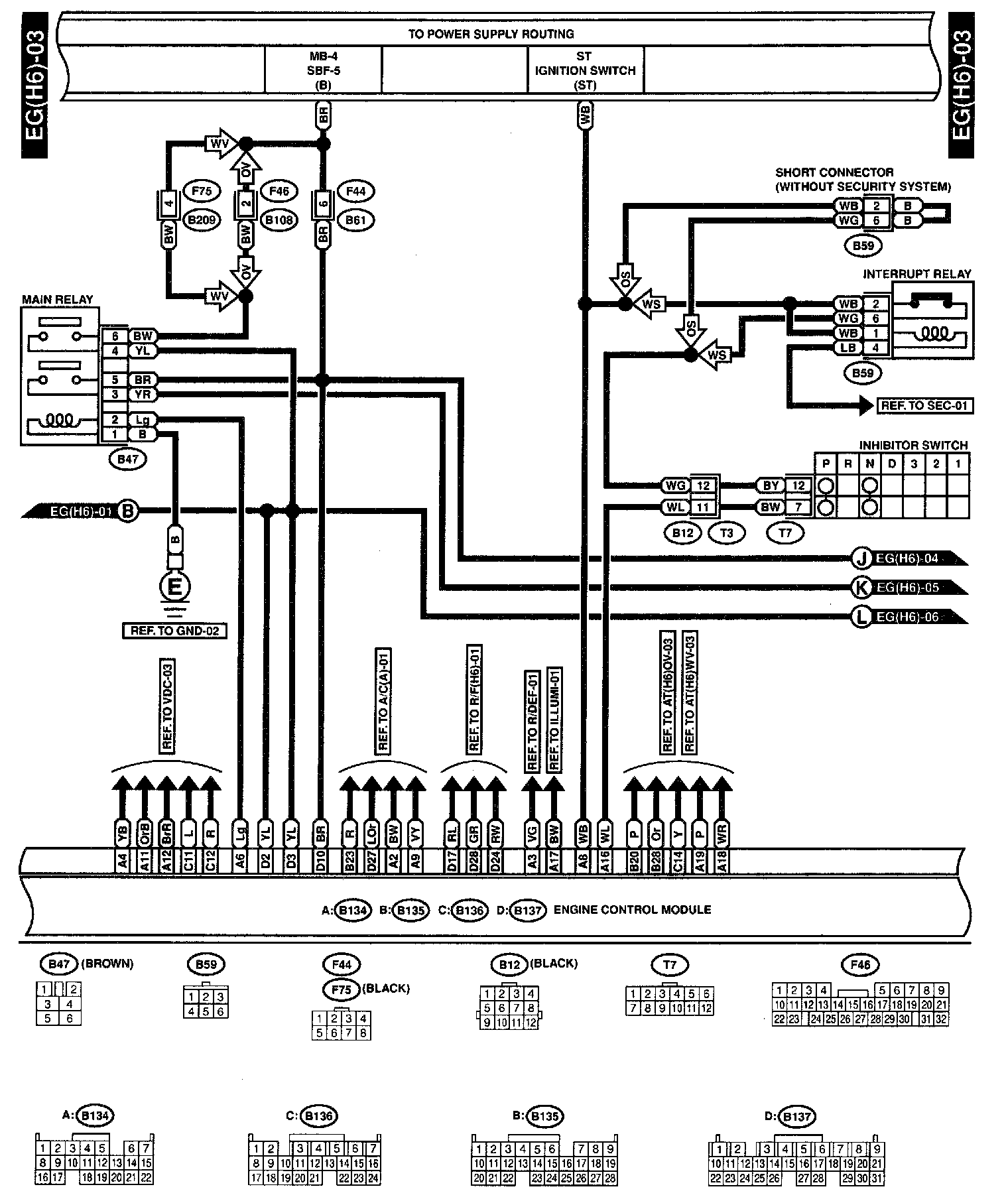

EG(H6)-03 - Engine Electrical System:




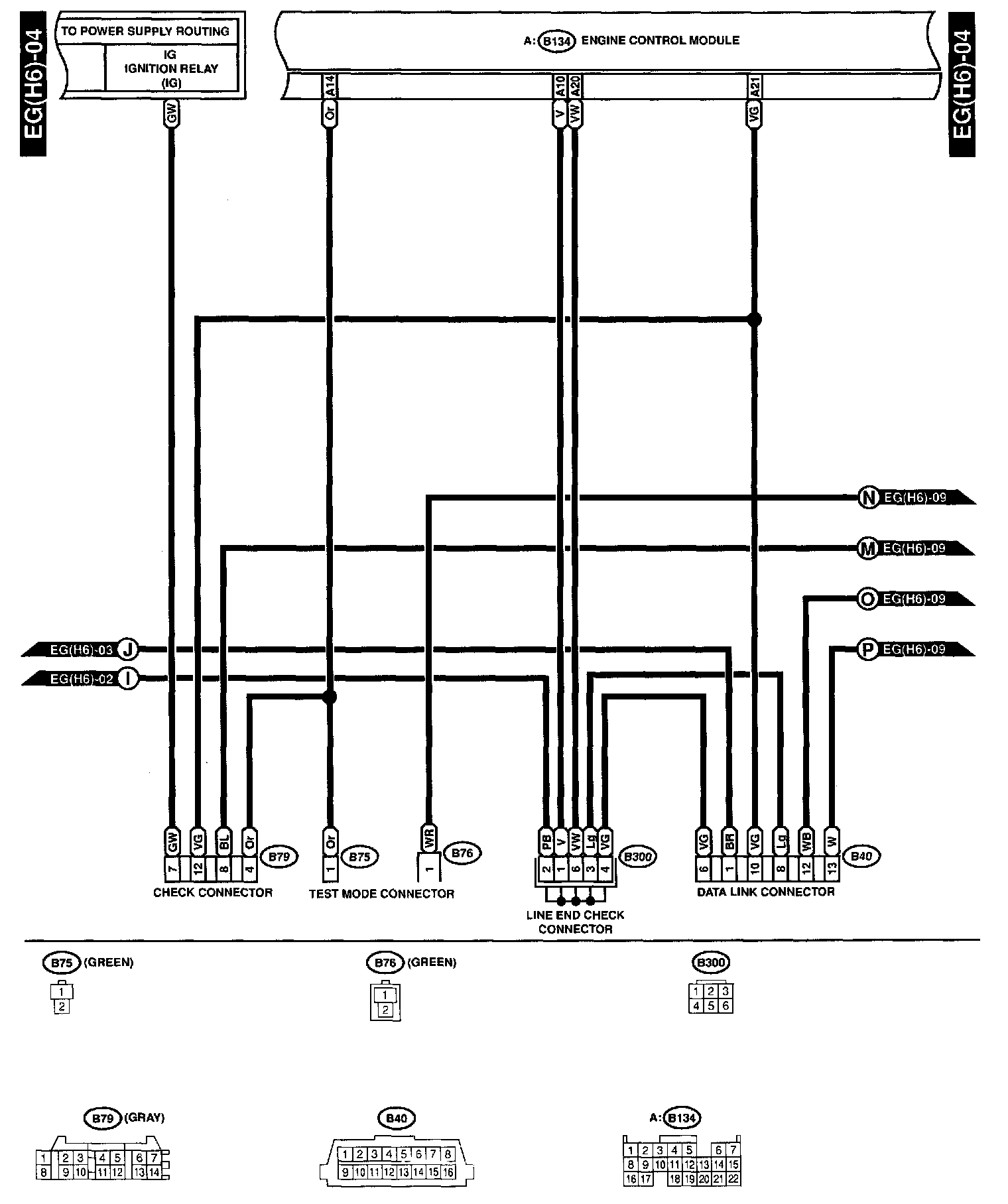

EG(H6)-04 - Engine Electrical System:




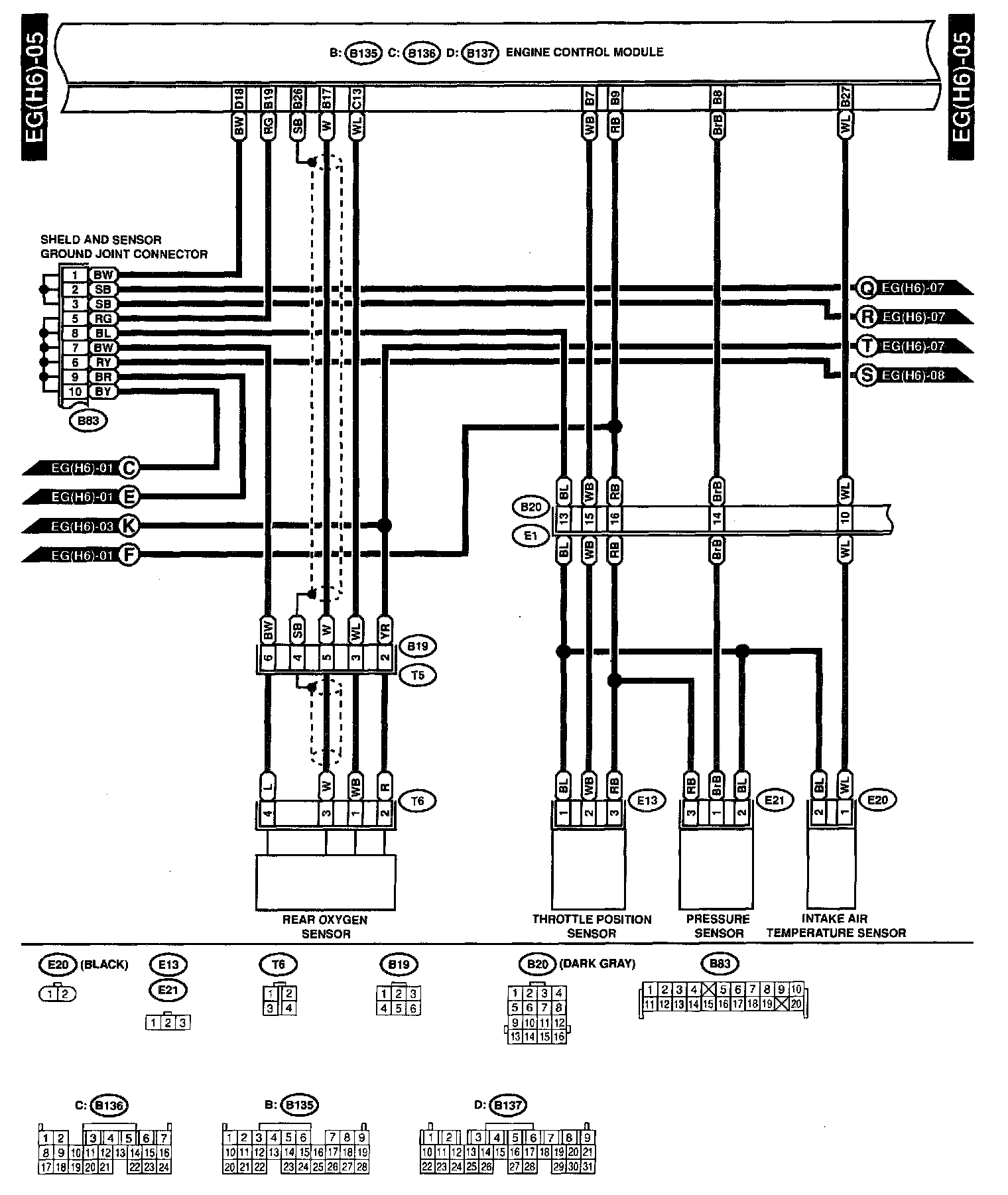

EG(H6)-05 - Engine Electrical System:

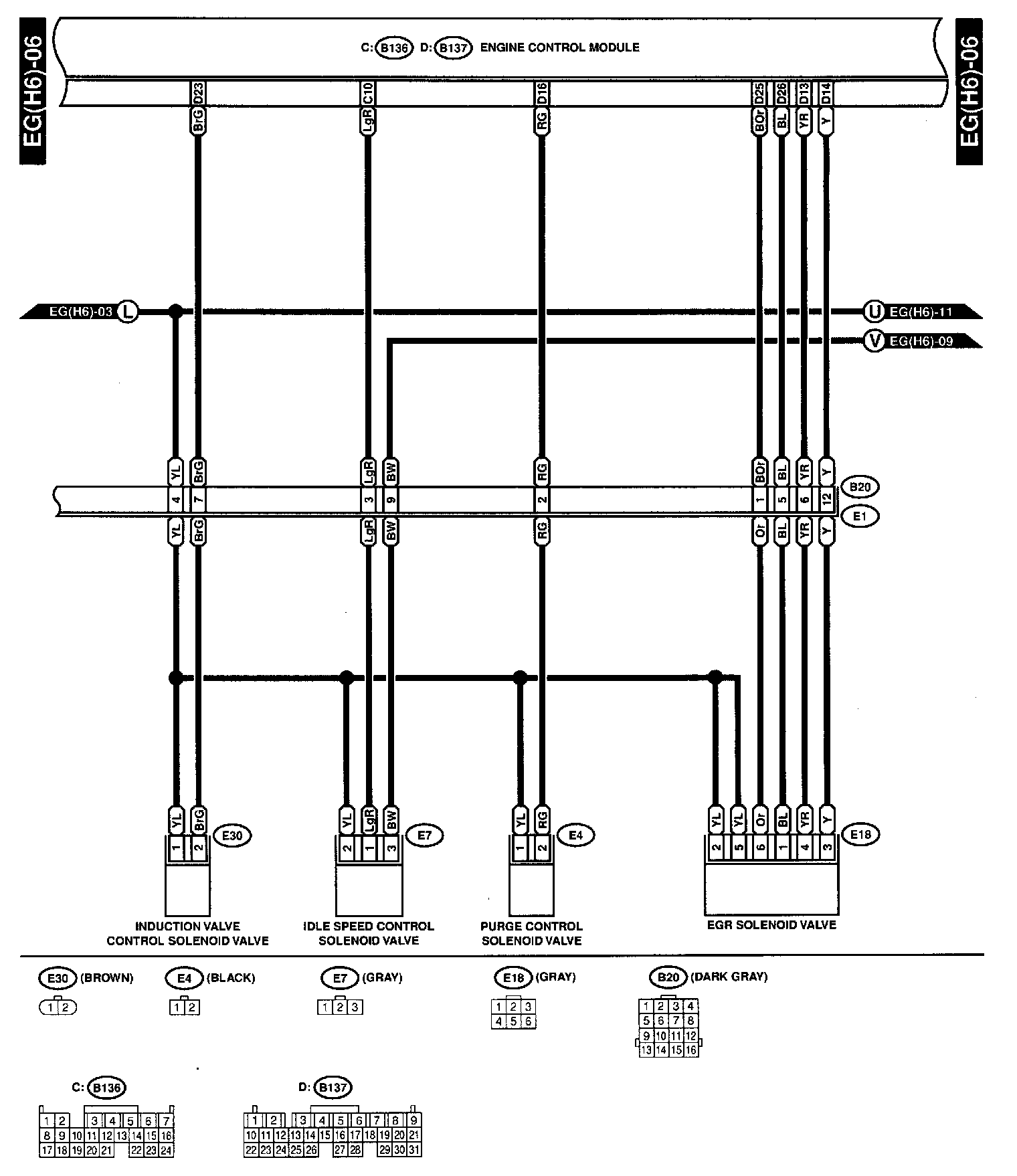

EG(H6)-06 - Engine Electrical System:

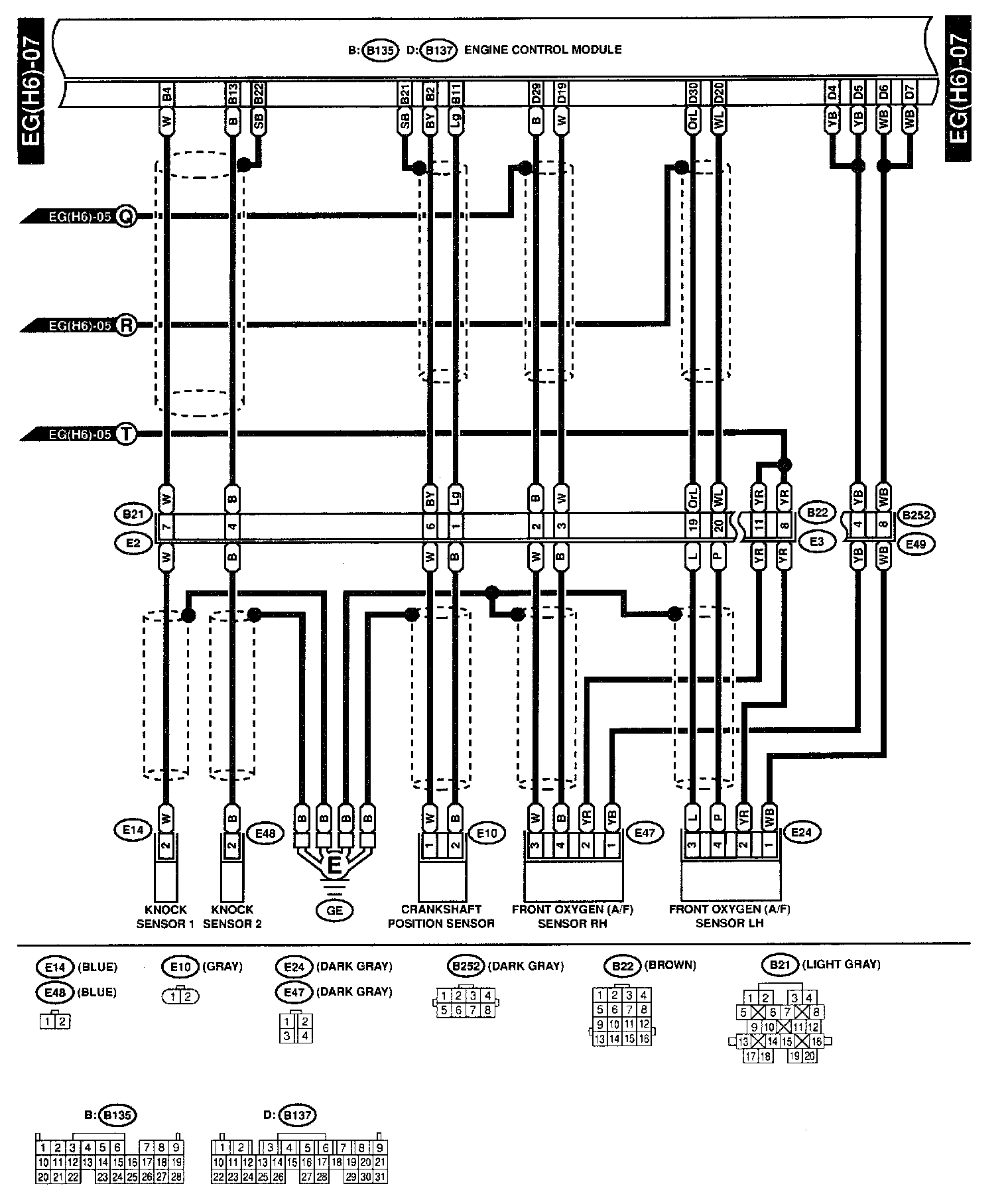

EG(H6)-07 - Engine Electrical System:

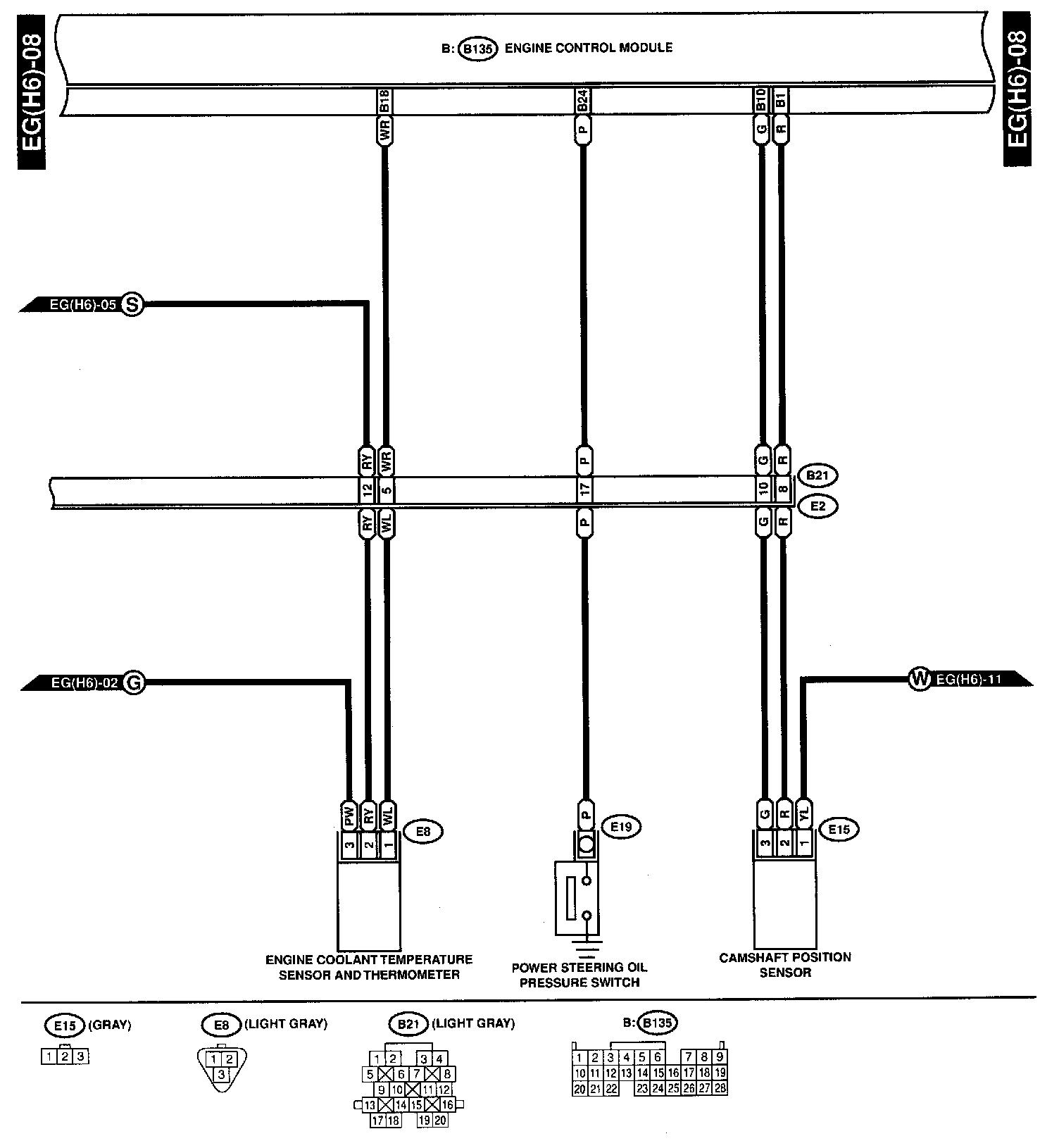

EG(H6)-08 - Engine Electrical System:

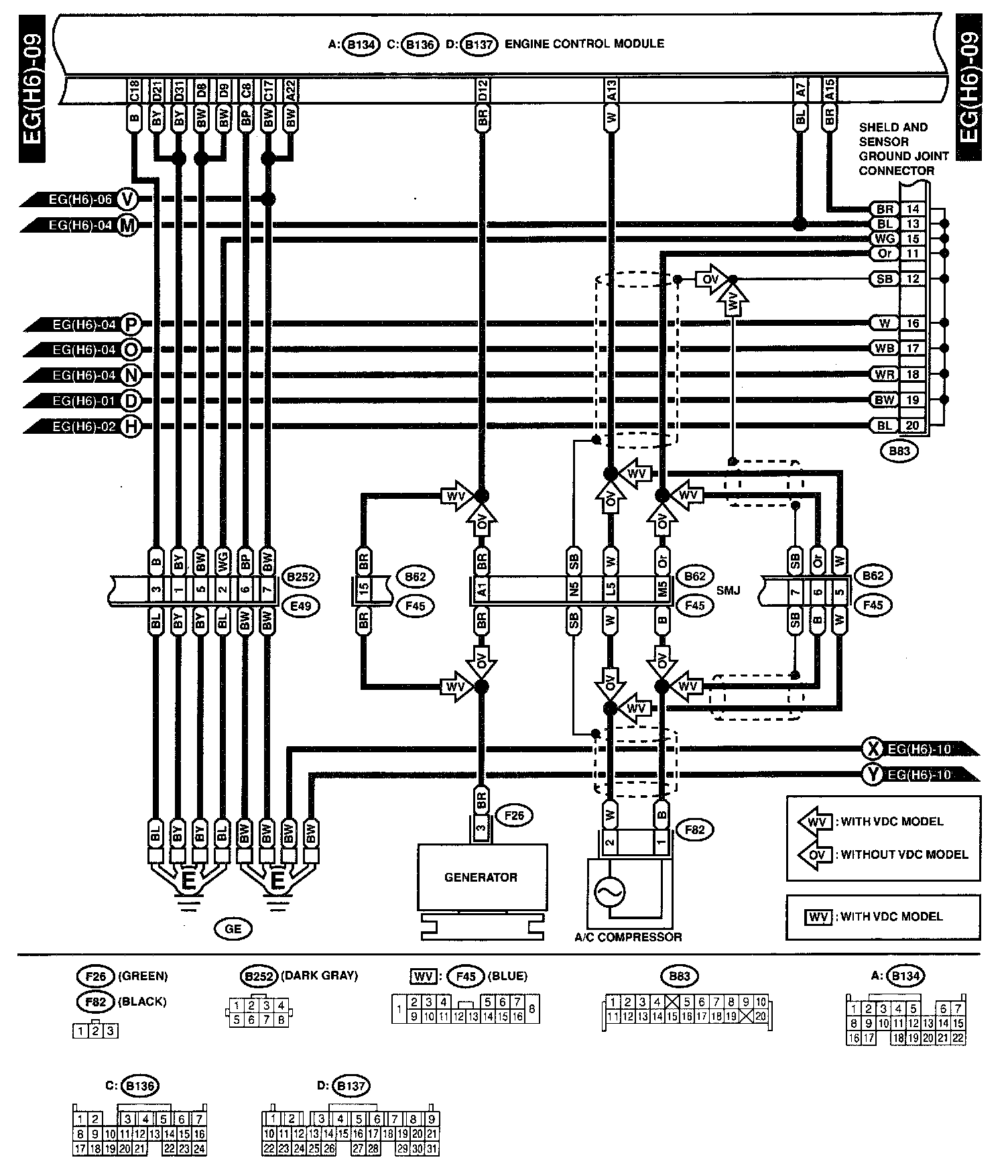

EG(H6)-09 - Engine Electrical System:

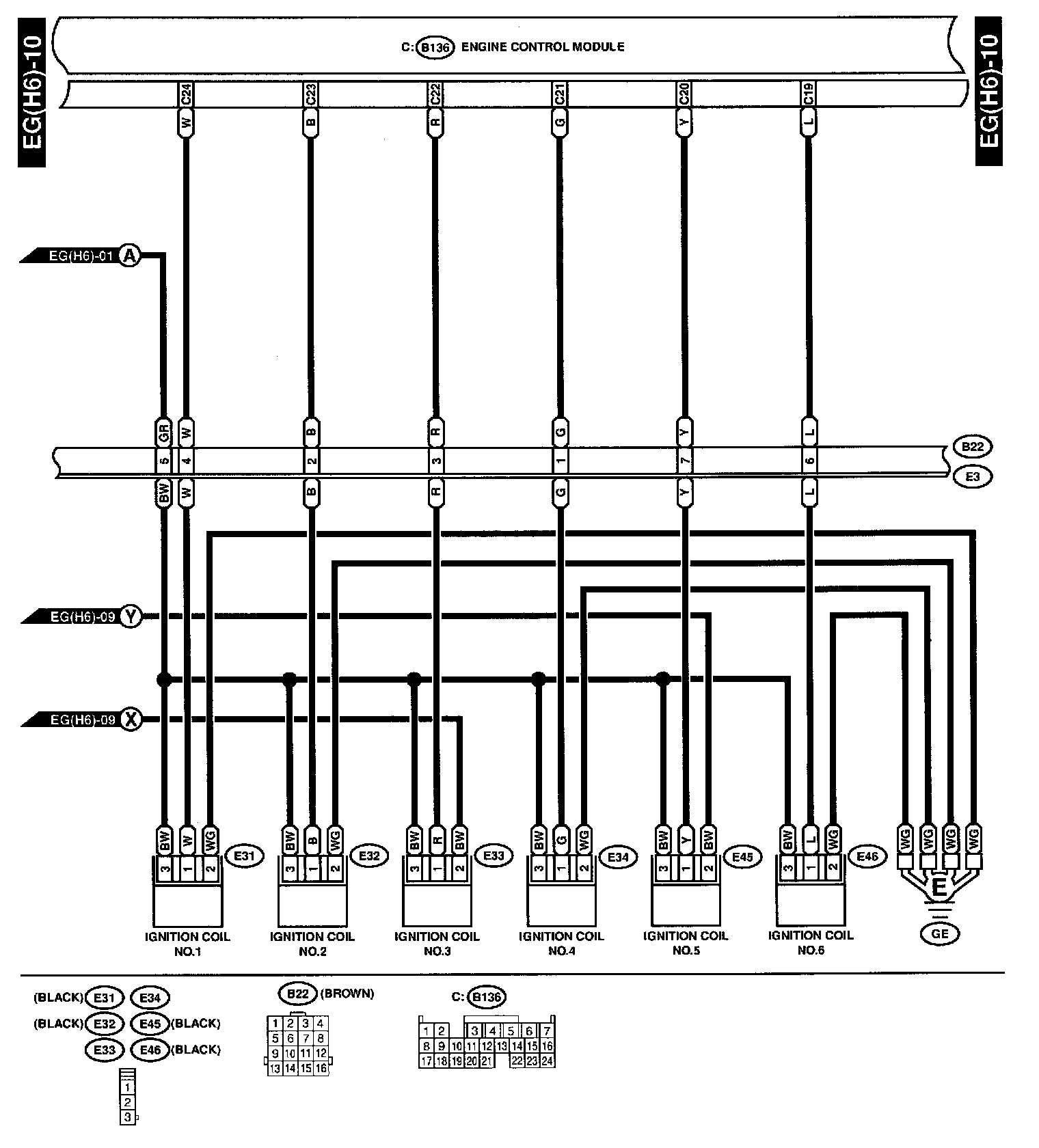

EG(H6)-10 - Engine Electrical System:

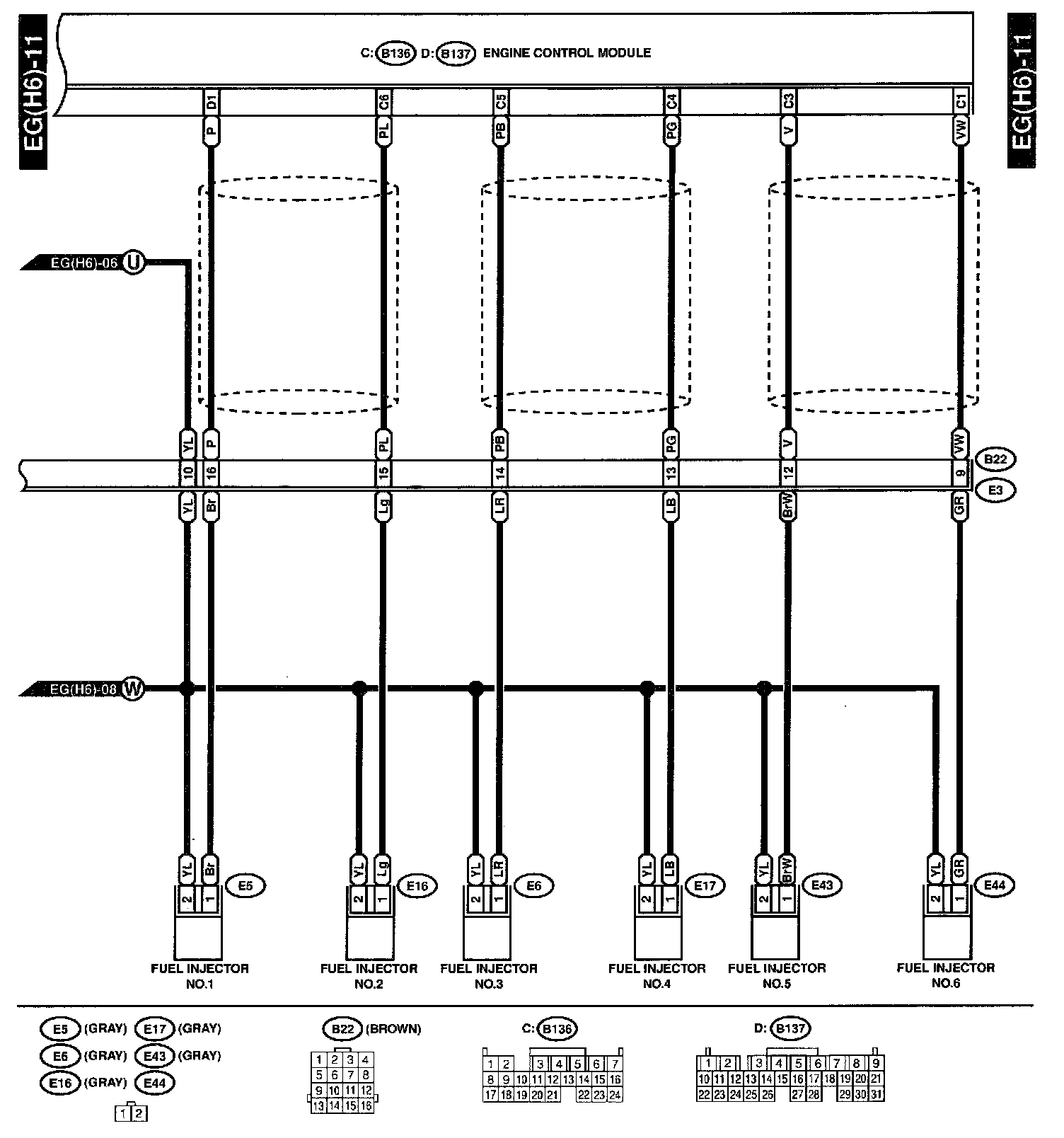

EG(H6)-11 - Engine Electrical System:
