Anti-Lock Brake Control System - Vehicle Dynamics Control (VDC)- Mechanism & Function
>>
Vehicle Dynamics Control (VDC) System
>>
System Components And Functions
April 5, 2026:
LEMON Manuals is launched!
Read the announcement.
System Components And Functions

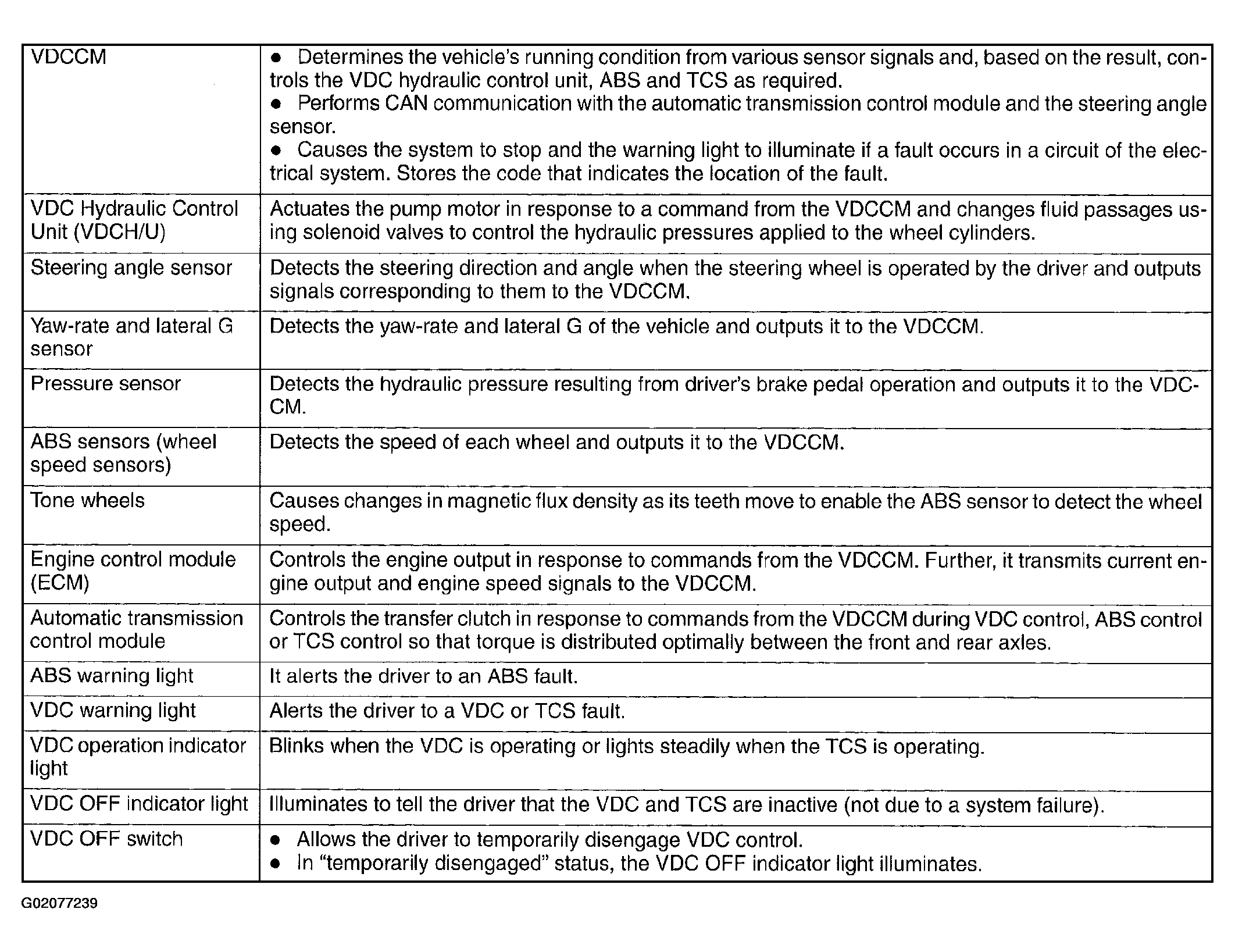

Fig 1: System Components & Functions Chart
Courtesy of SUBARU OF AMERICA, INC.
NOTE:
CAN (Controller Area Network) communication refers to bi-directional multiplex high-speed communication.

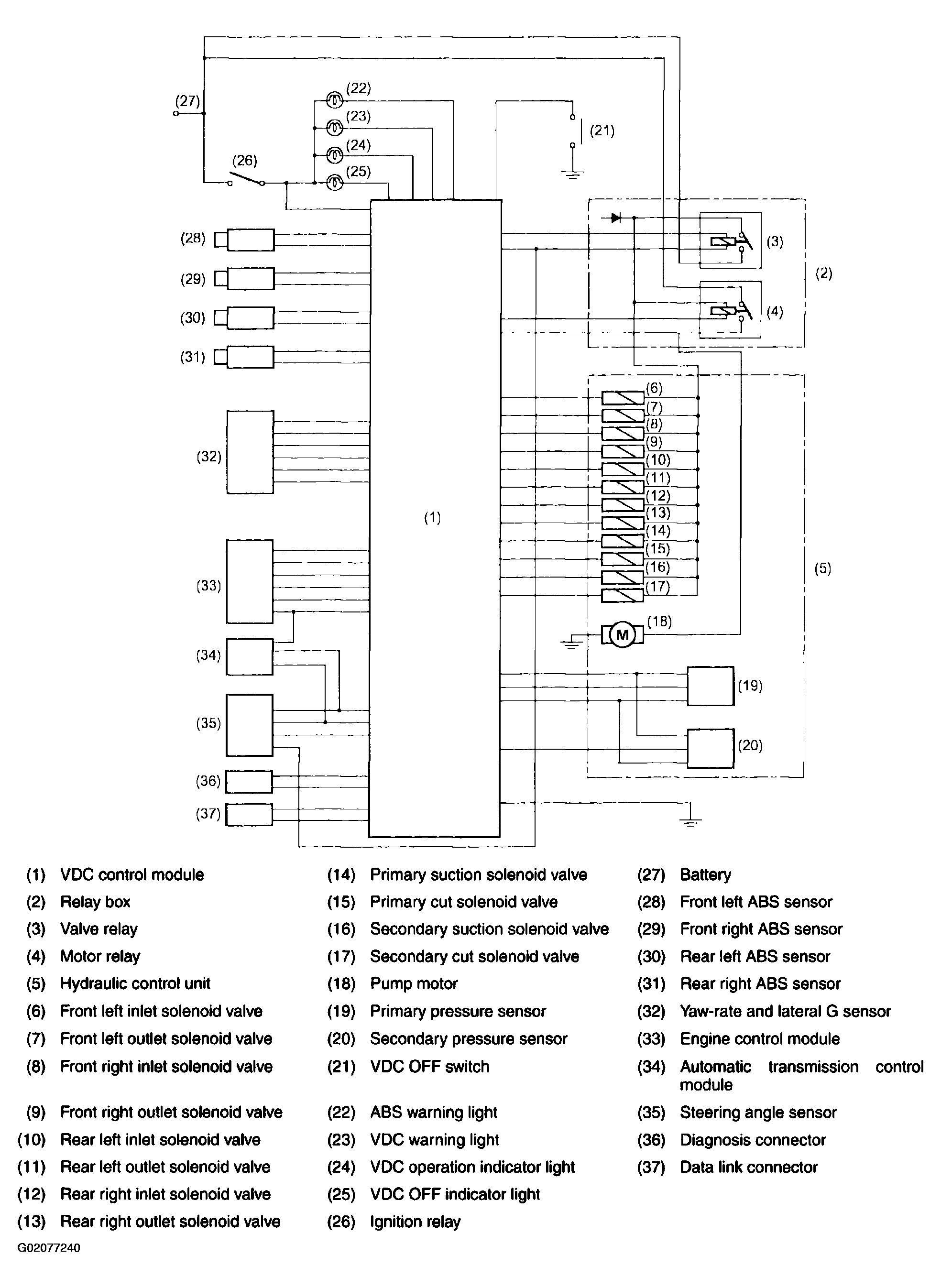

Fig 2: VDC System Circuit Diagram
Courtesy of SUBARU OF AMERICA, INC.
