Removal & Installation

For removal and installation procedures, see Fig 1.

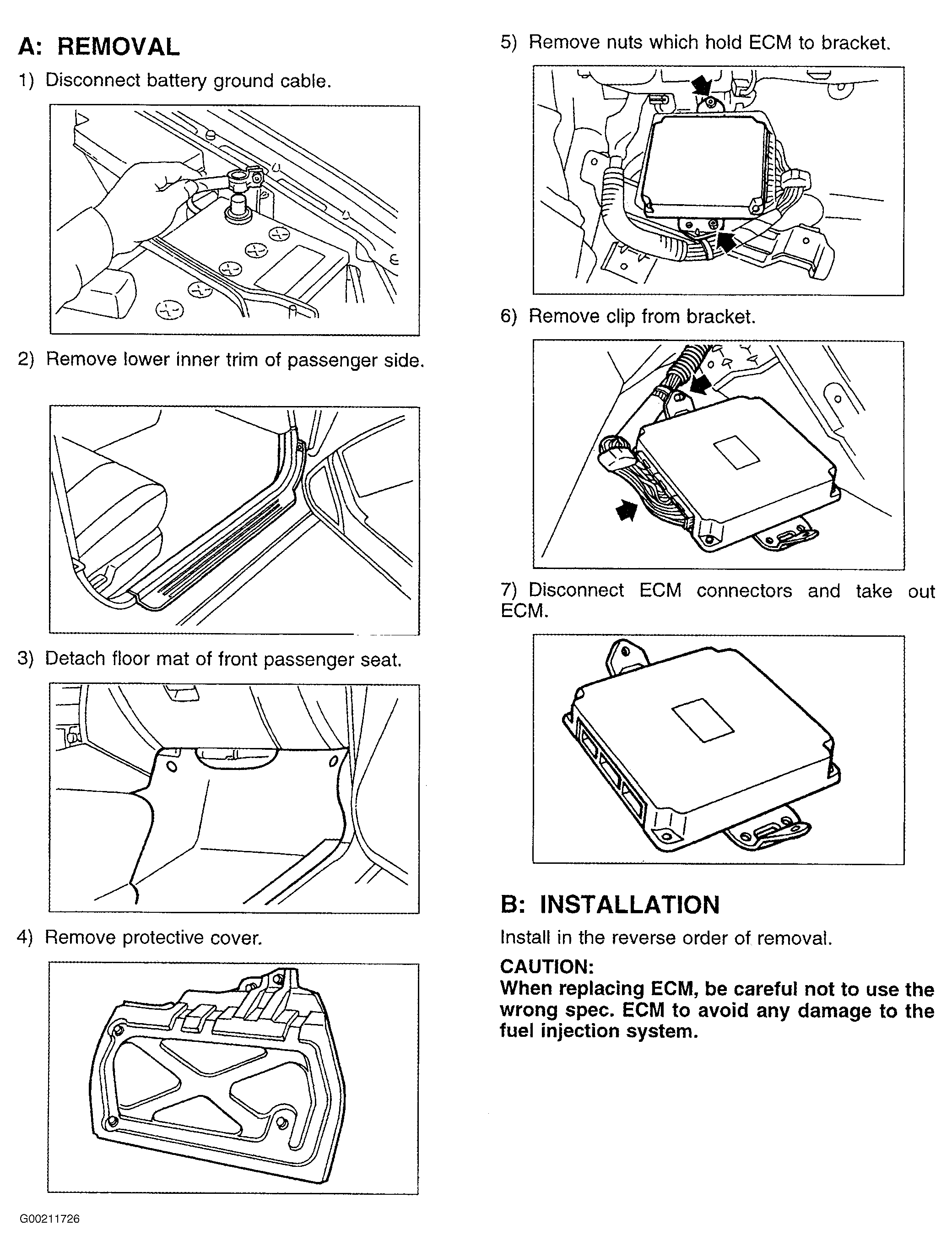

Fig 1: Engine Control Module Removal & Installation (Baja, Legacy & Outback)
G00211726Courtesy of SUBARU OF AMERICA, INC.
