Check Fuel Level Sensor

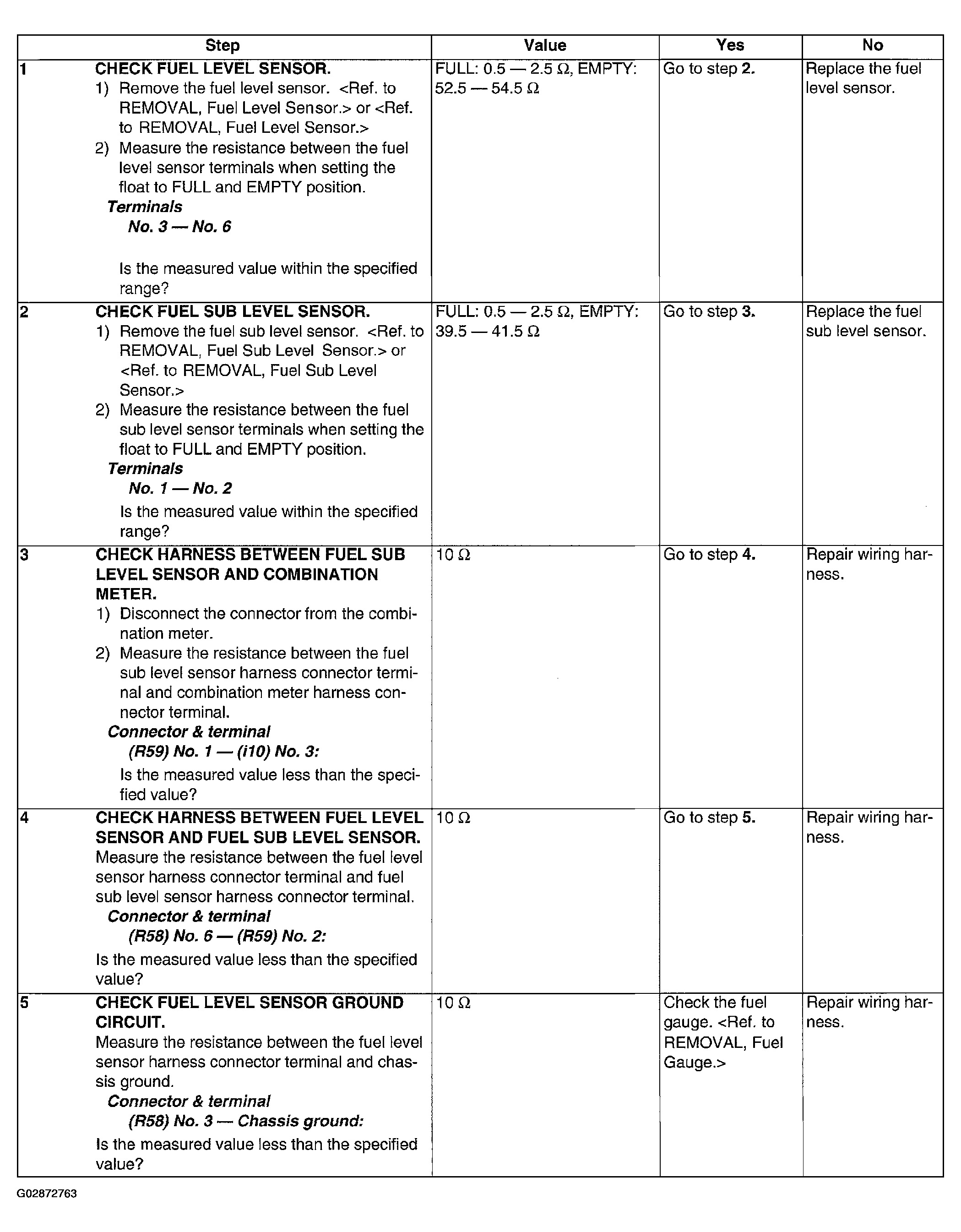

Fig 1: Checking Fuel Level Sensor Chart
Courtesy of SUBARU OF AMERICA, INC.
Courtesy of SUBARU OF AMERICA, INC.
