Operating Cylinder: Installation

WARNING: This page is about a different variant/trim than selected.

Apply grease (SUNLIGHT 2: P/N 003602010) to the contact point of the release lever and operating cylinder.
Install in the reverse order of removal.
Before installing the operating cylinder, apply grease (SUNLIGHT 2: P/N 003602010) to contact point of the release lever and operating cylinder.

Tightening torque:
1. T1: 18 N.m (1.8 kgf-m, 13.0 ft-lb)
2. T2: 37 N.m (3.8 kgf-m, 27.5 ft-lb)

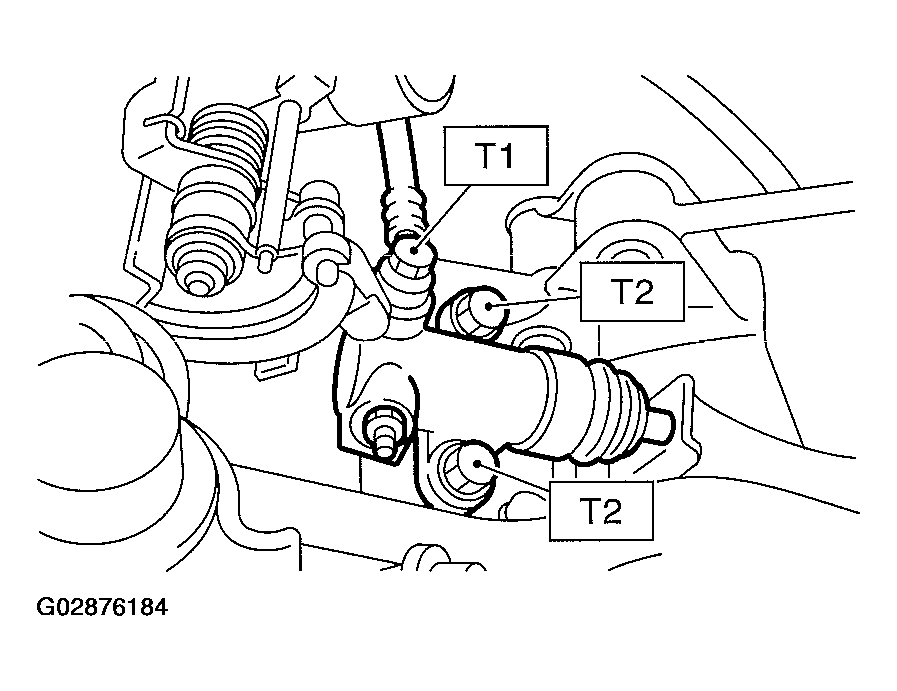

Fig 1: Installing Clutch Hose To Operating Cylinder
Courtesy of SUBARU OF AMERICA, INC.
After bleeding air from the operating cylinder, ensure that clutch operates properly. < Ref. to CLUTCH FLUID AIR BLEEDING .>
