Power Assisted System

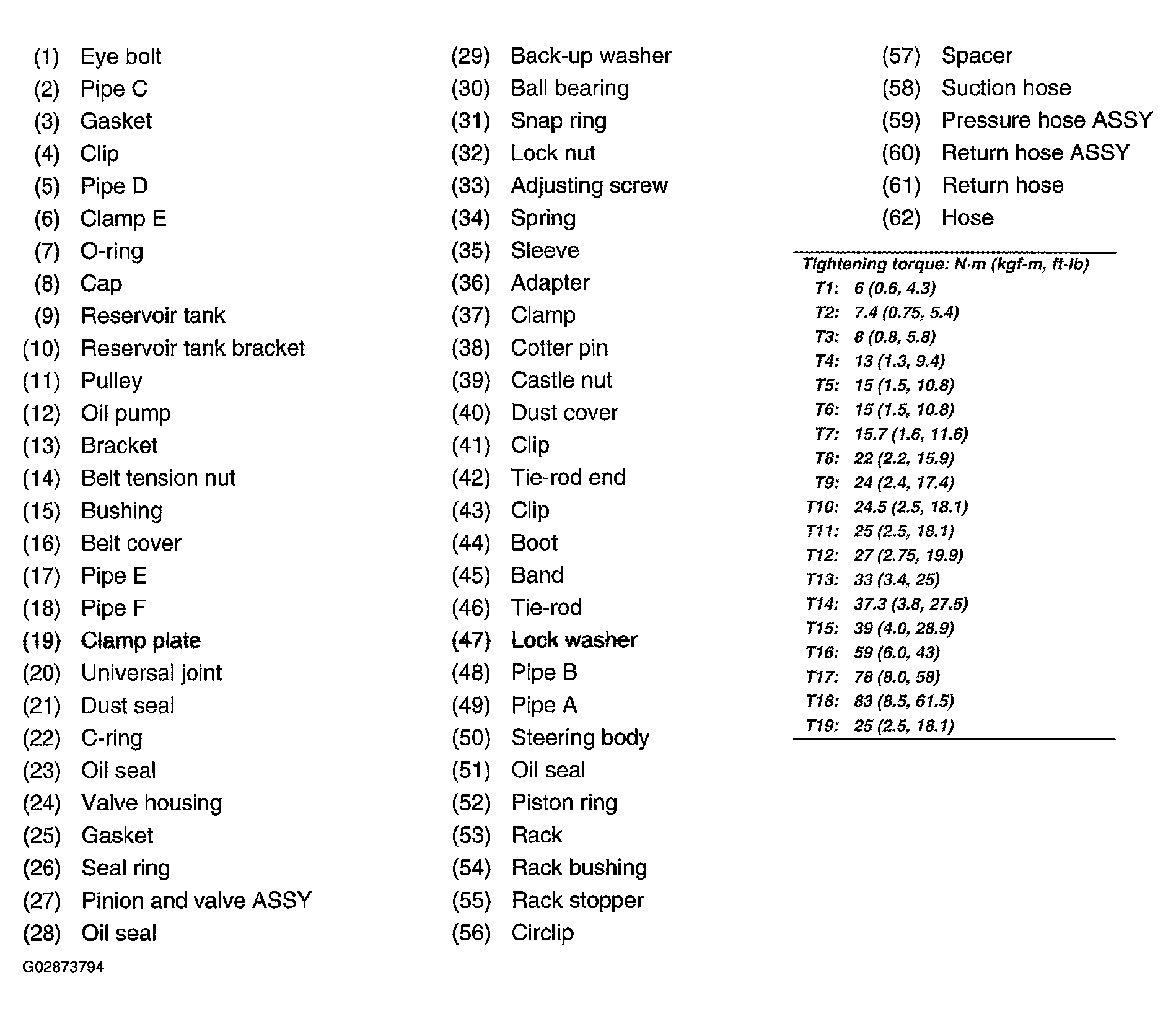

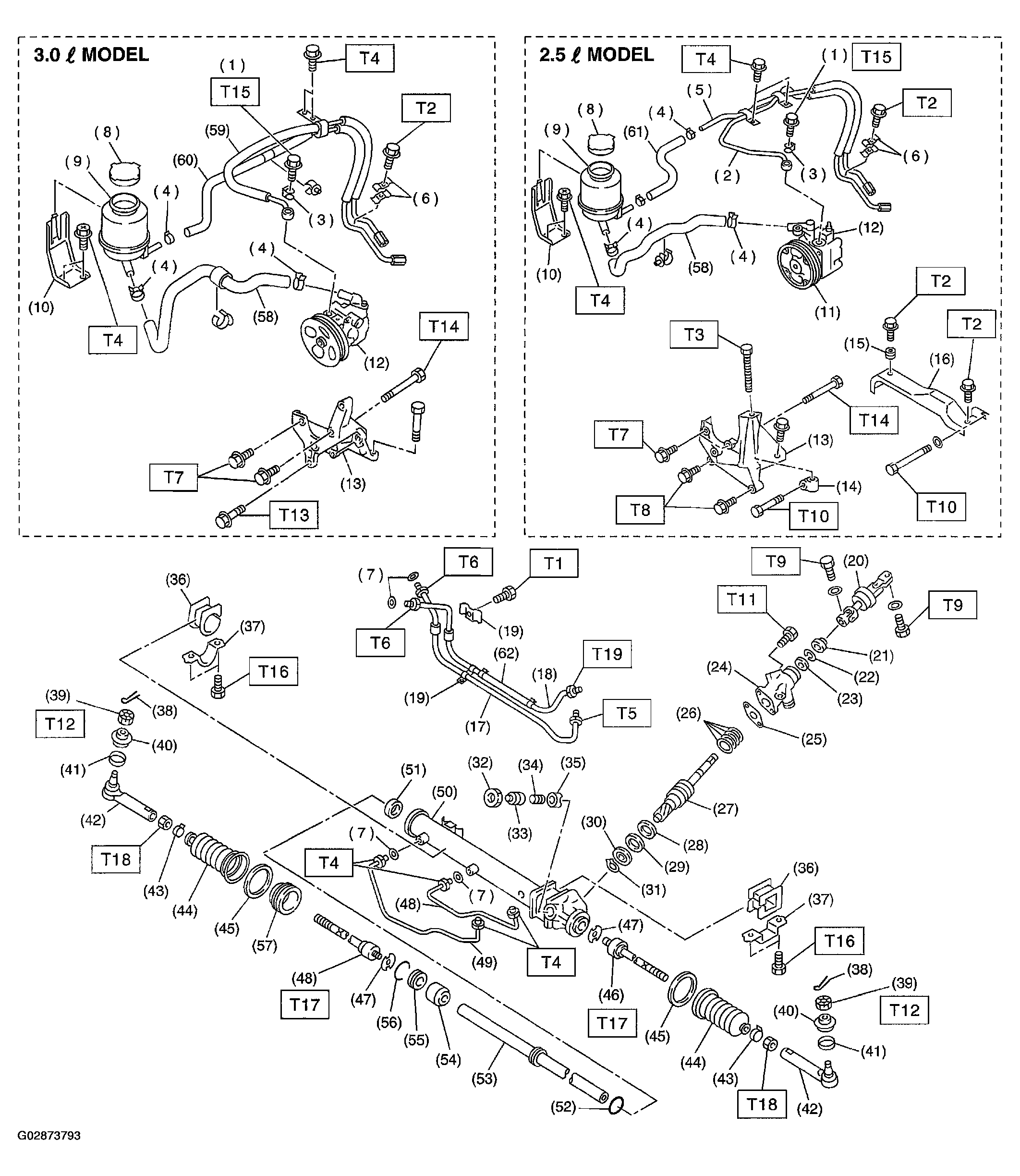

Fig 1: Exploded View Of Power Assisted System (1 Of 2)
Courtesy of SUBARU OF AMERICA, INC.
Fig 2: Exploded View Of Power Assisted System (1 Of 2)
Courtesy of SUBARU OF AMERICA, INC.
Courtesy of SUBARU OF AMERICA, INC.
Courtesy of SUBARU OF AMERICA, INC.
