Relay Box

Install relay box and connector bracket.
Tightening torque: 13 N.m (1.3 kgf-m, 9.4 ft-lb)

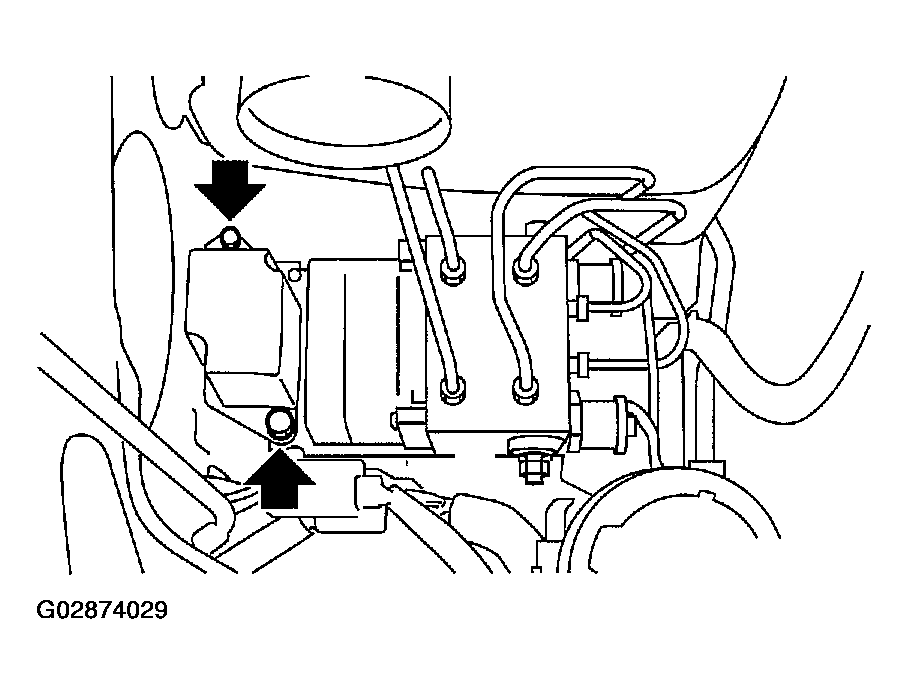

Fig 1: Installing Relay Box And Connector Bracket
Courtesy of SUBARU OF AMERICA, INC.
Secure relay box connector to connector bracket.
CAUTION: Connector with mating receptacle.
Connect connector to relay box.

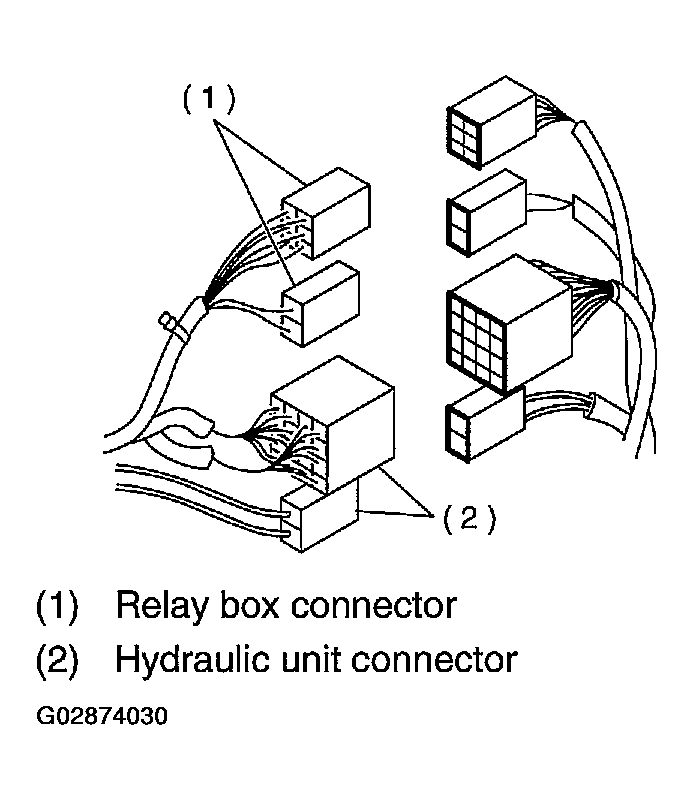

Fig 2: Connecting Connector To Relay Box
Courtesy of SUBARU OF AMERICA, INC.
Install air intake duct.
Connect ground cable to battery.
