Wheel Alignment

WARNING: This page is about a different car, the 2003 Subaru Impreza. However, it is still accessible from the selected car via links, so may be relevant.

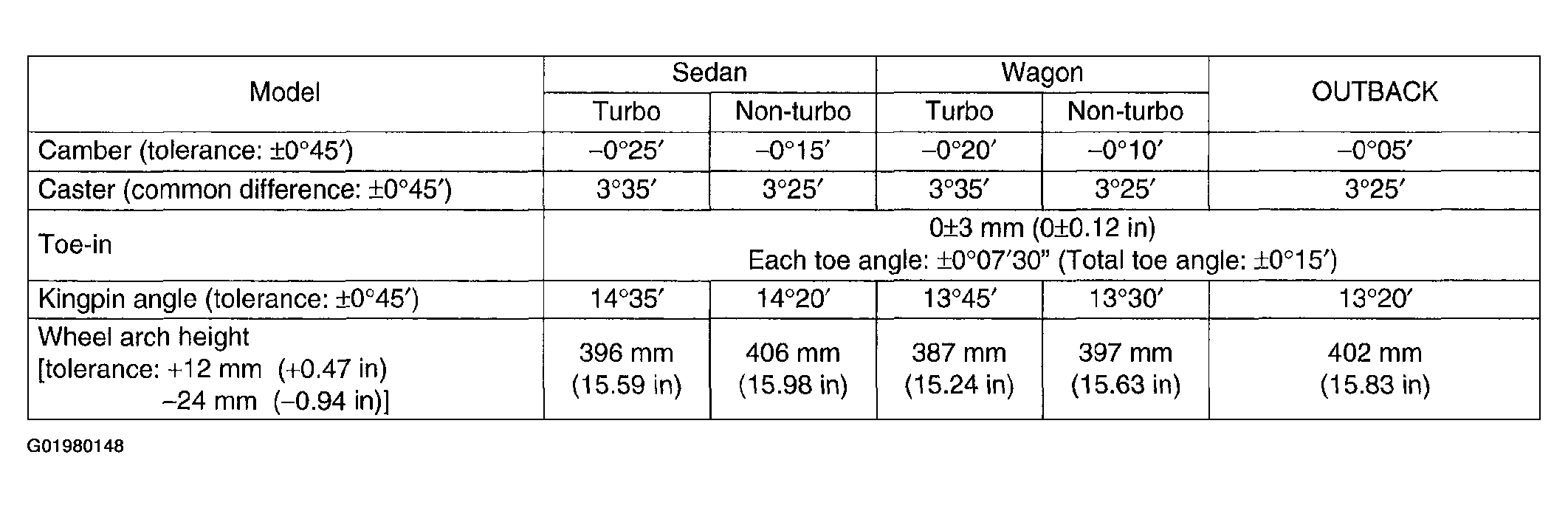

Fig 1: Front Wheel Alignment Specification Chart

Courtesy of SUBARU OF AMERICA, INC.

Fig 2: Rear Wheel Alignment Specification Chart

Courtesy of SUBARU OF AMERICA, INC.

NOTE:

Front and rear toe-ins and front camber can be adjusted. If the toe-in or camber tolerance exceeds specifications, adjust toe-in and camber to the middle value of specification.
The other items indicated in the specification table cannot be adjusted. If the other items exceeds specifications, check suspension parts and connections for deformities; replace with new ones as required.

Fig 3: Identifying Wheel Alignment Angles

Courtesy of SUBARU OF AMERICA, INC.
