Sub Frame: Inspection
WARNING: This page is about a different car, the 2003 Subaru Impreza. However, it is still accessible from the selected car via links, so may be relevant.
- Check that there is no damage and distortion at the sub frame.

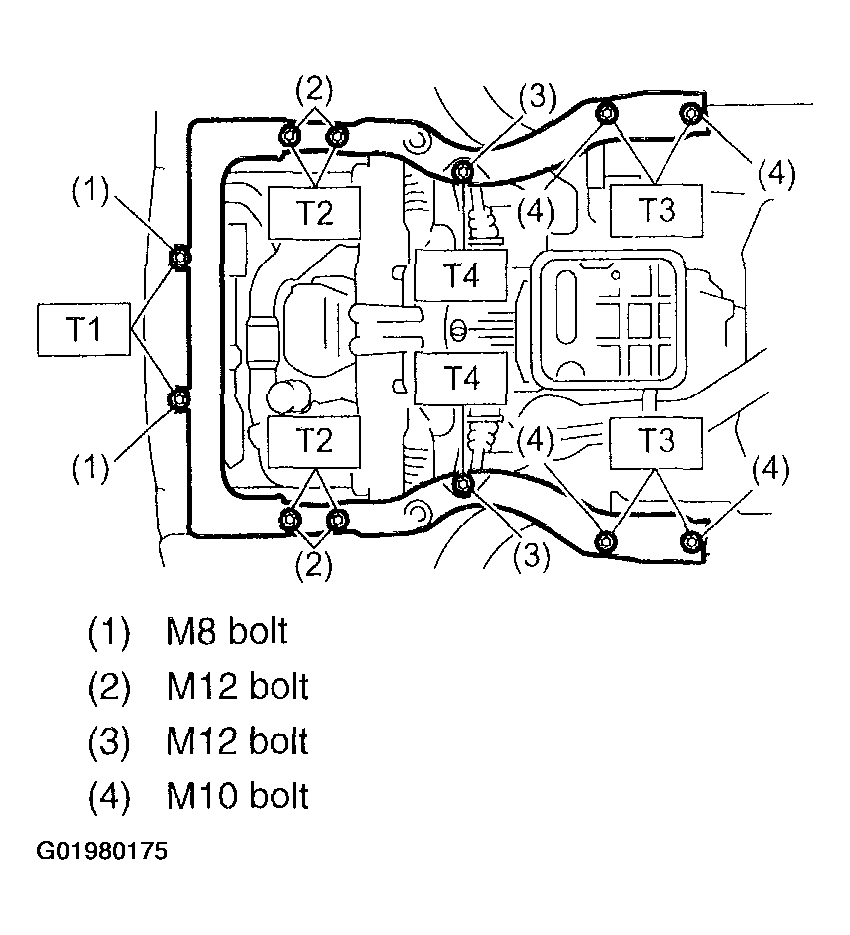

- Check that the bolts are tightened with the specified torque. If there is looseness, tighten to the specified torque.NOTE: The tightening torque differs by the color for bolt.
- Always verify the bolt color before checking tightening torque.
- Tightening torque:
- T1: 34 N.m (3.5 kgf-m, 25 ft-lb)
- T2: 55 N.m (5.6 kgf-m, 41 ft-lb)
- T3: 71 N.m (7.2 kgf-m, 52 ft-lb)
- T4: DARK GREEN bolt 105 N.m (10.7 kgf-m, 77 ft-lb)
- T4: Except DARK GREEN bolt 55 N.m (5.6 kgf-m, 41 ft-lb)
