Front Differential Assembly: Installation

  1. Install bearing outer race into transmission case.
  2. Install differential side retainers using ST.
    1. ST 499787000 WRENCH ASSY
  3. Install differential assembly.

    Wrap the left and right splines sections of axle shaft with vinyl tape to prevent scratches.

    Be careful not to fold the sealing lip of oil seal

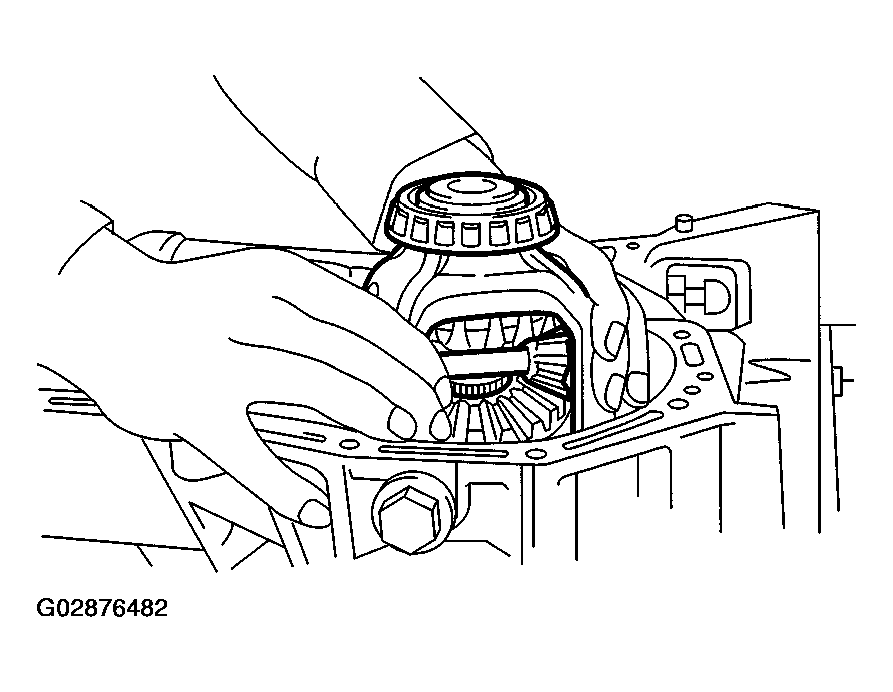

    Fig 1: Installing Differential Assembly
    G02876482Courtesy of SUBARU OF AMERICA, INC.
  4. Install main shaft assembly. Single-range model:

    < Ref. to INSTALLATION , Main Shaft Assembly for Single-Range.>

  5. Install drive pinion assembly. < Ref. to INSTALLATION , Drive Pinion Shaft Assembly.>
  6. Install transmission case. < Ref. to INSTALLATION , Transmission Case.>
  7. Install transfer case with extension case assembly. < Ref. to INSTALLATION , Transfer Case and Extension Case Assembly.>
  8. Install the manual transmission assembly to vehicle. < Ref. to INSTALLATION , Manual Transmission Assembly.>
