Check FWD Switch
CHECK FWD SWITCHDIAGNOSIS:
^ The LED does not come on even if FWD switch is ON.
^ The FWD switch circuit is open or short.

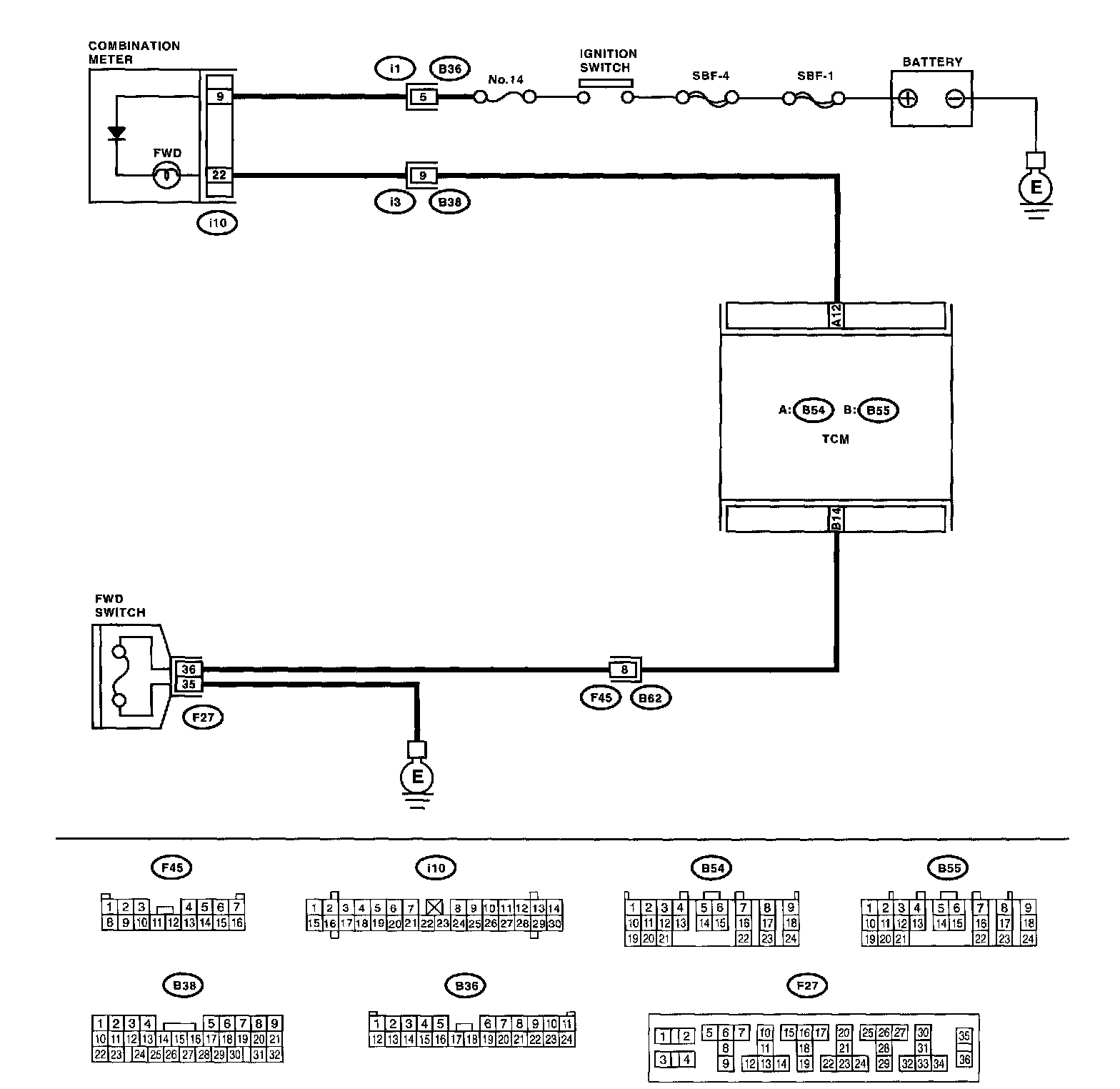

WIRING DIAGRAM:

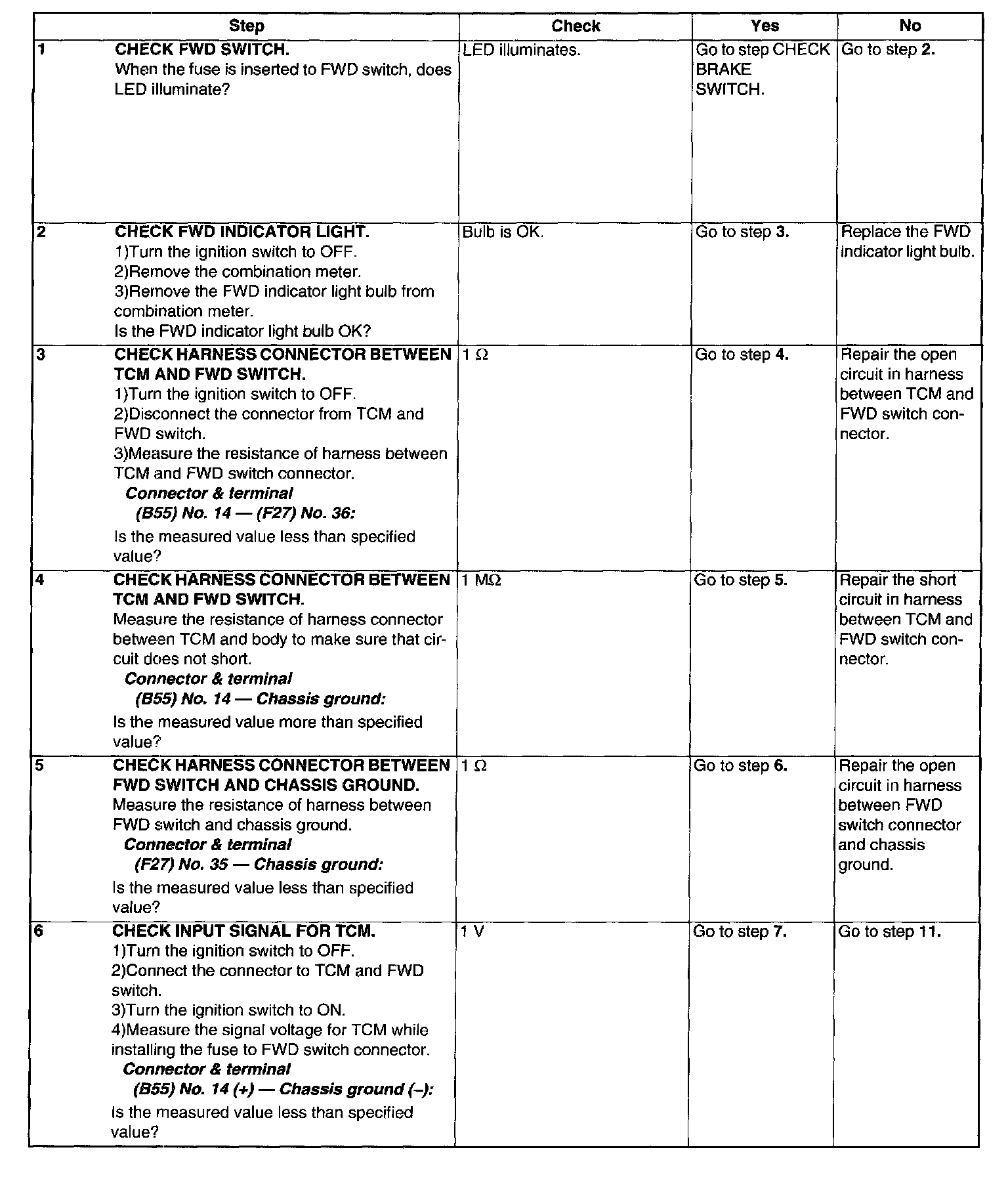

Test 1 Of 2:

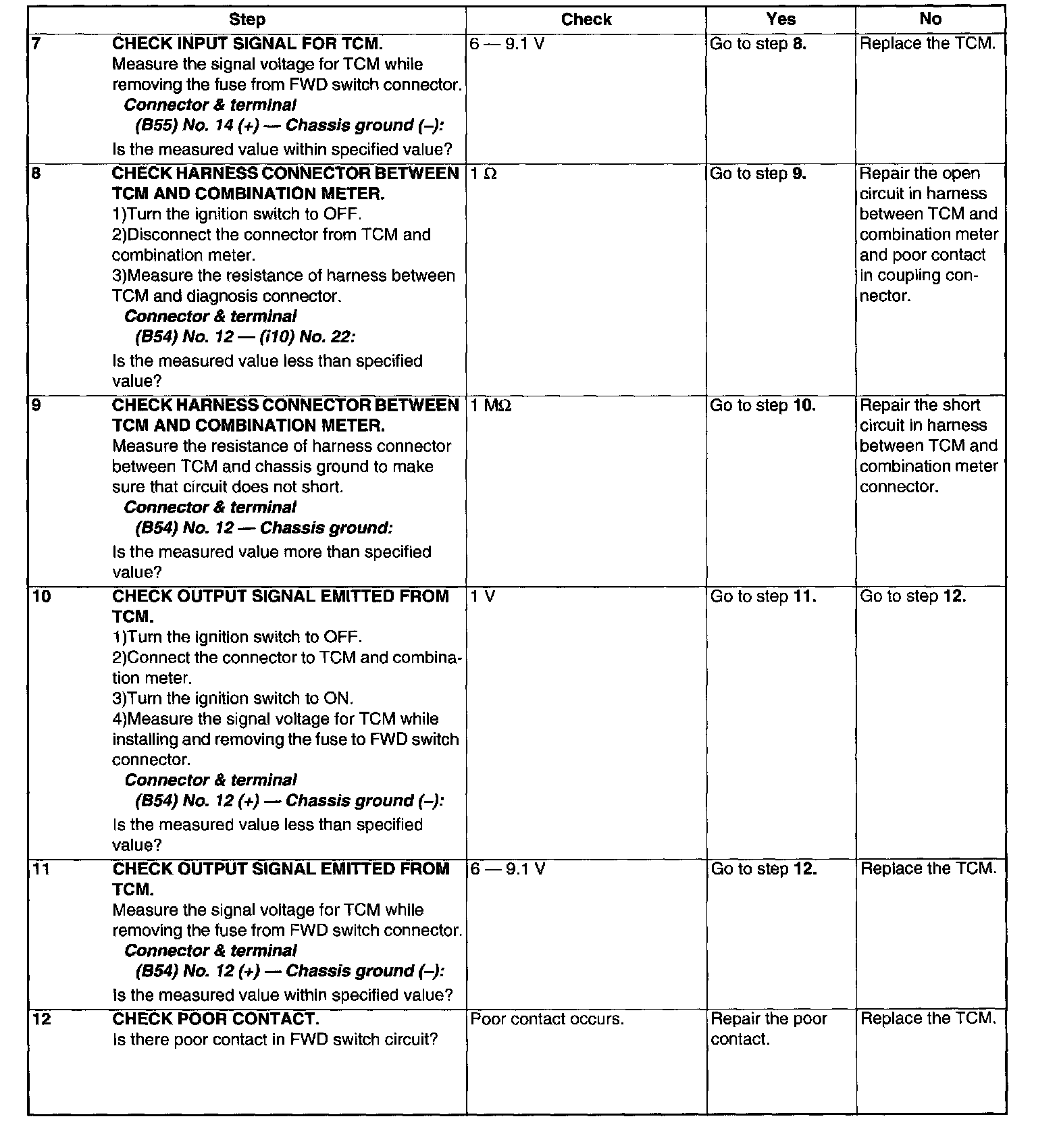

Test 2 Of 2:
DIAGNOSIS:
^ The LED does not come on even if FWD switch is ON.
^ The FWD switch circuit is open or short.
WIRING DIAGRAM:
