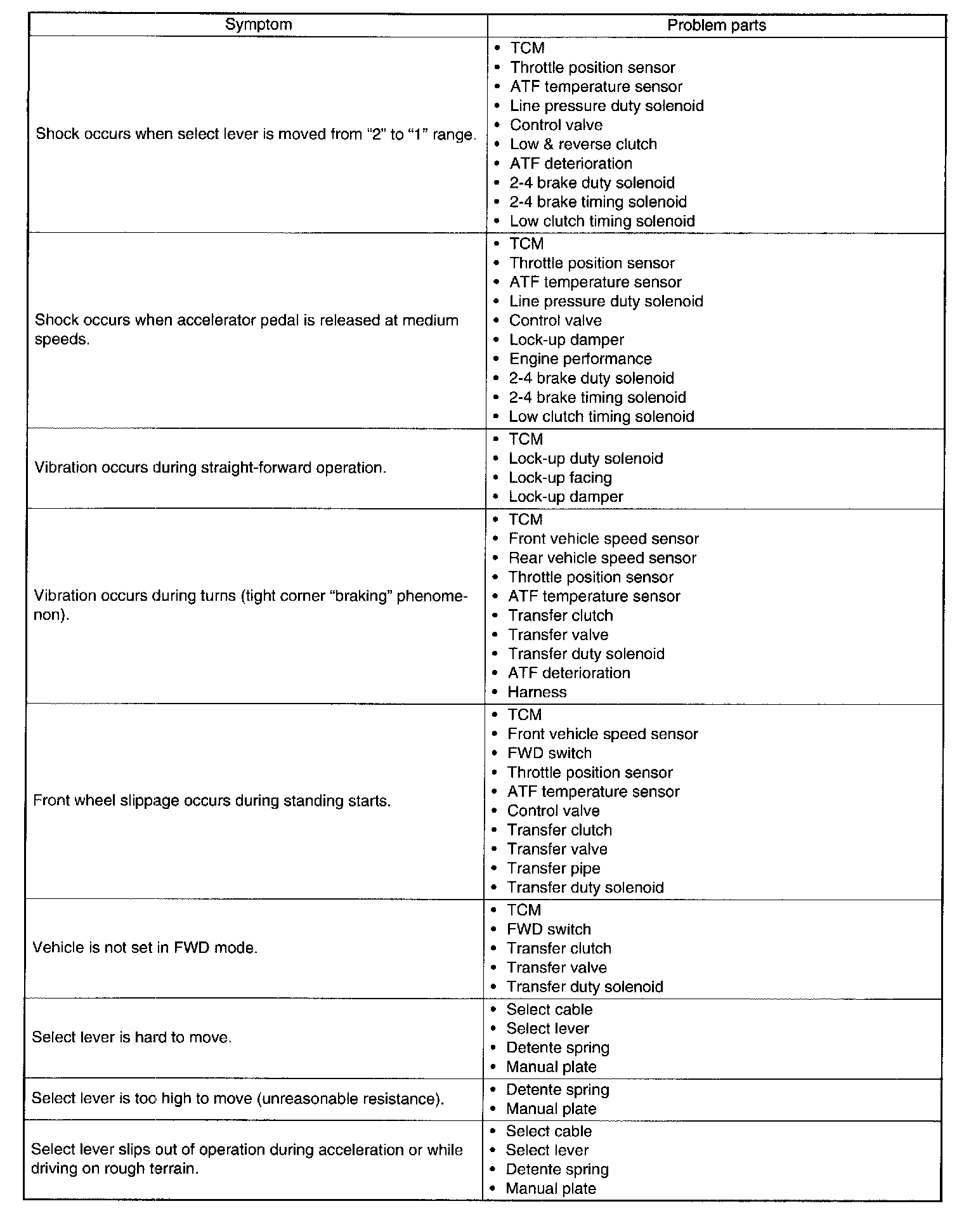

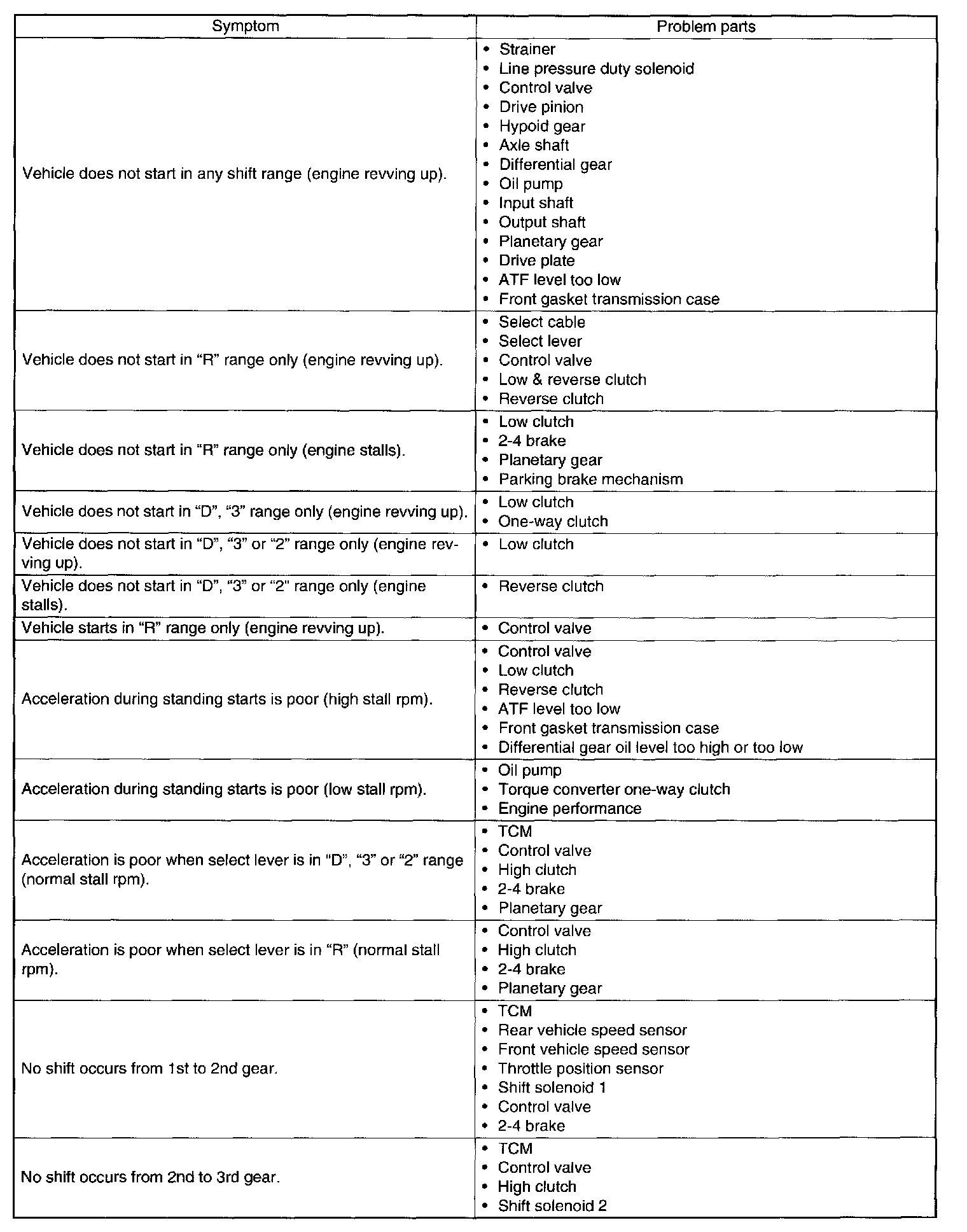

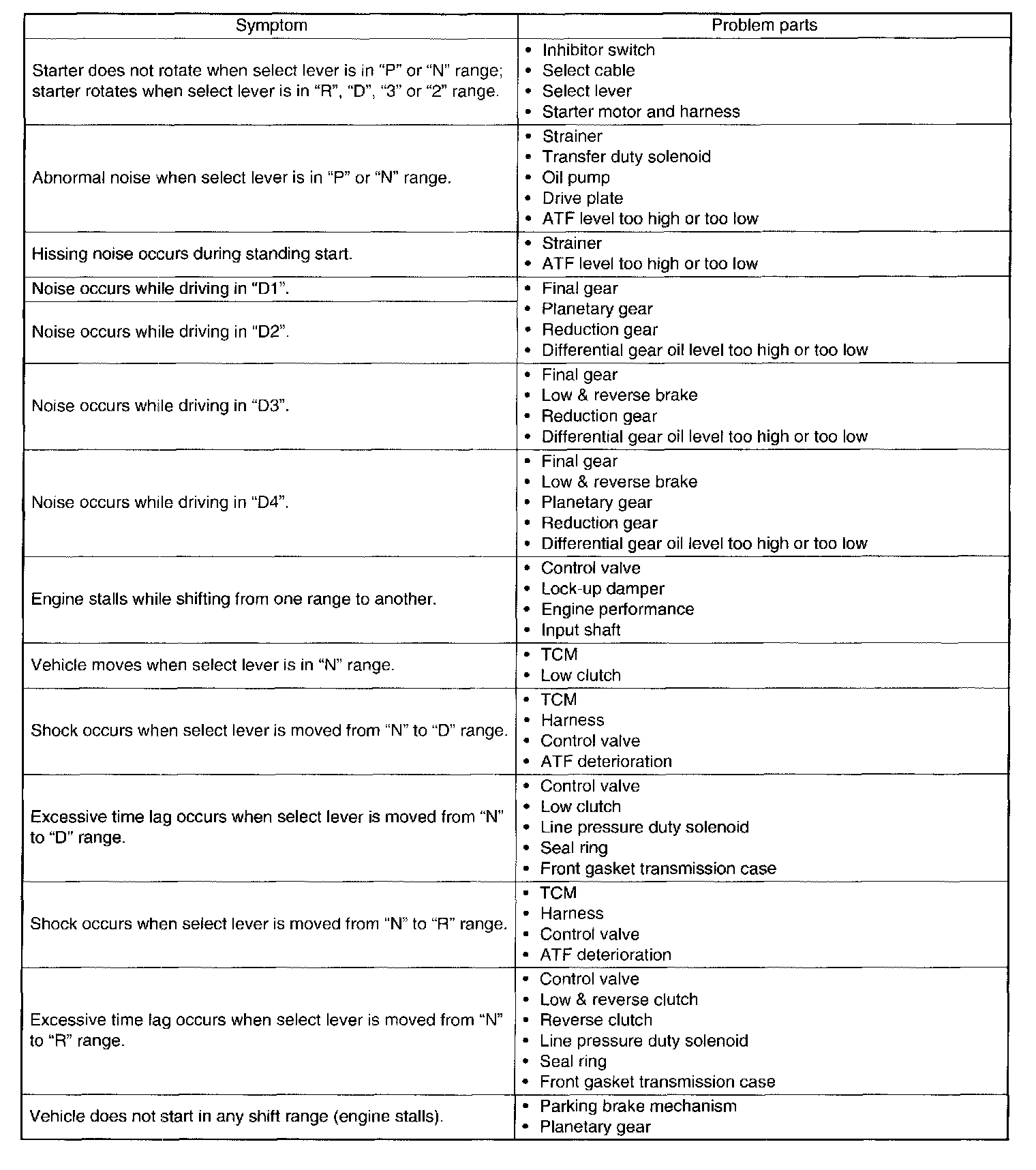

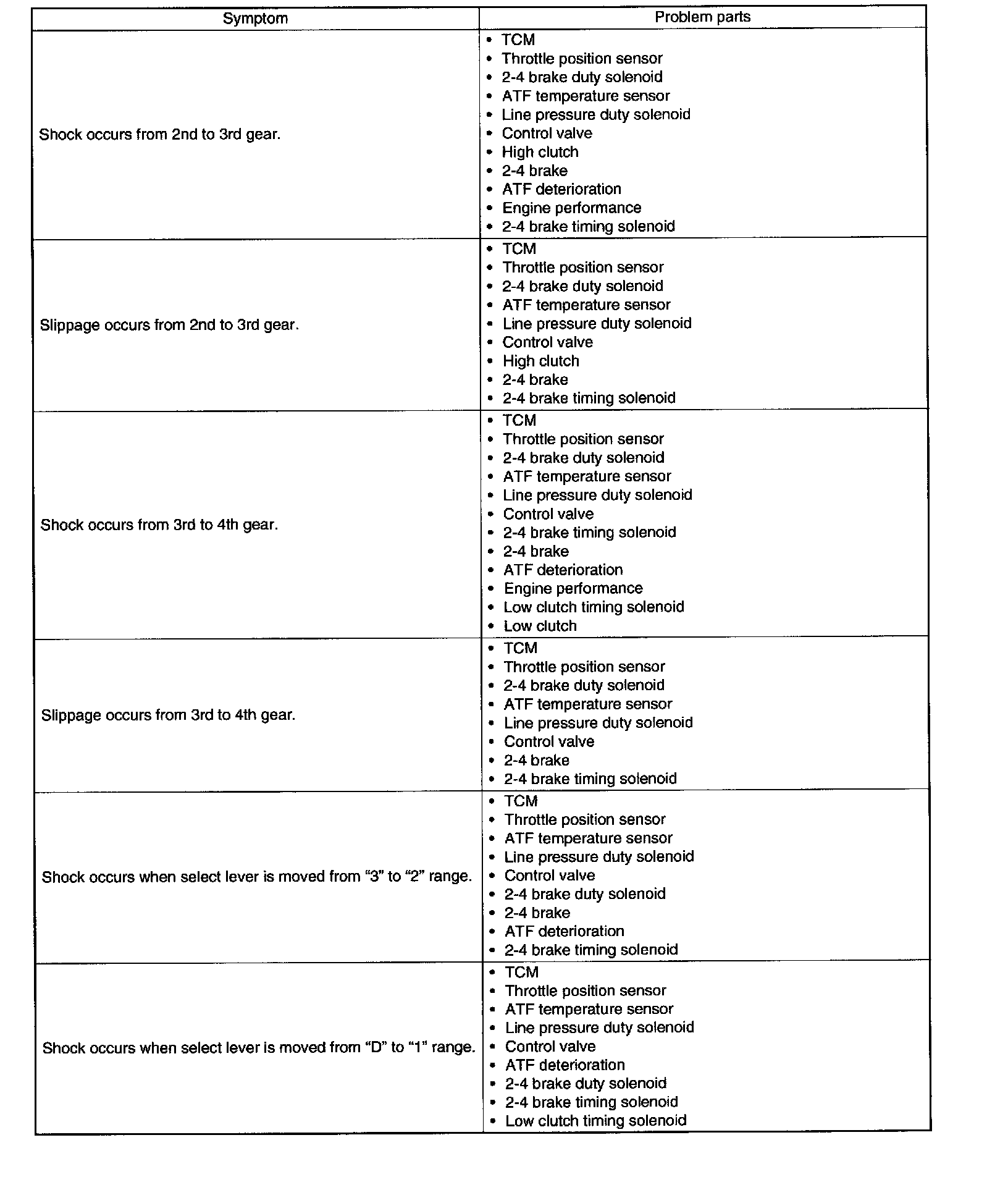

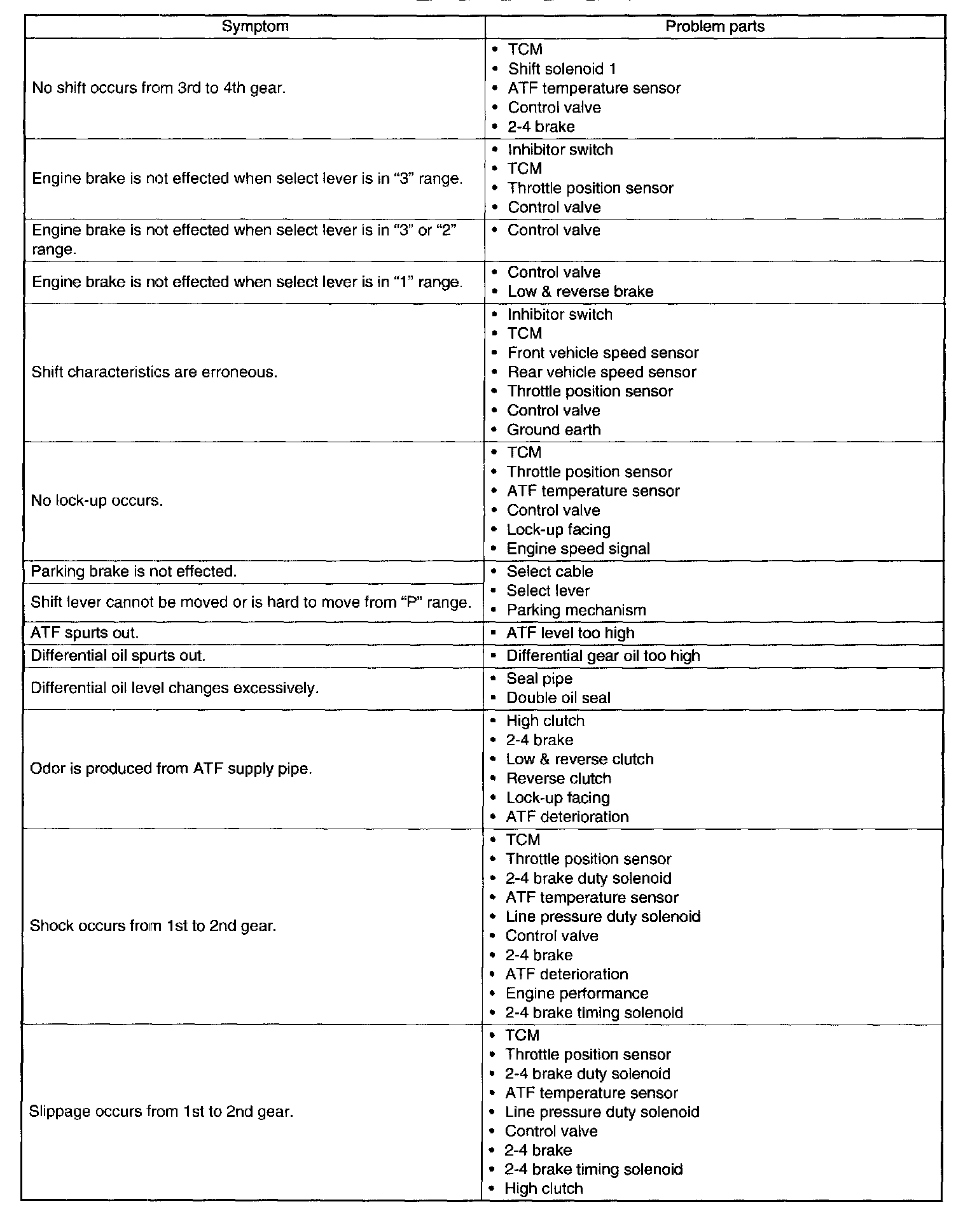

Symptom Related Diagnostic Procedures

Symptom Related Diagnostic

Test 1 Of 5:




Test 2 Of 5:




Test 3 Of 5:




Test 4 Of 5:




Test 5 Of 5:





INSPECTION
