A/T Technical Data

SPECIFICATIONS





TORQUE CONVERTER CLUTCH

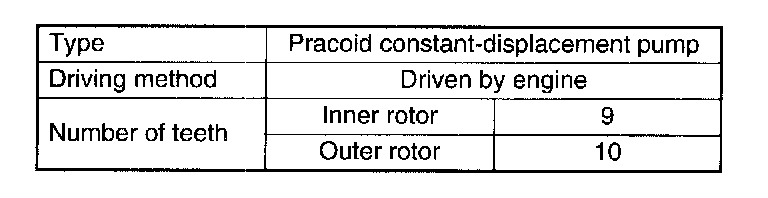

OIL PUMP





TRANSMISSION CONTROL ELEMENT

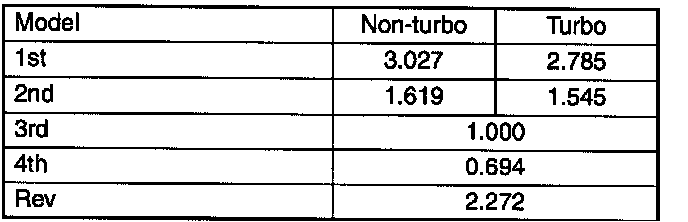

TRANSMISSION GEAR RATIO

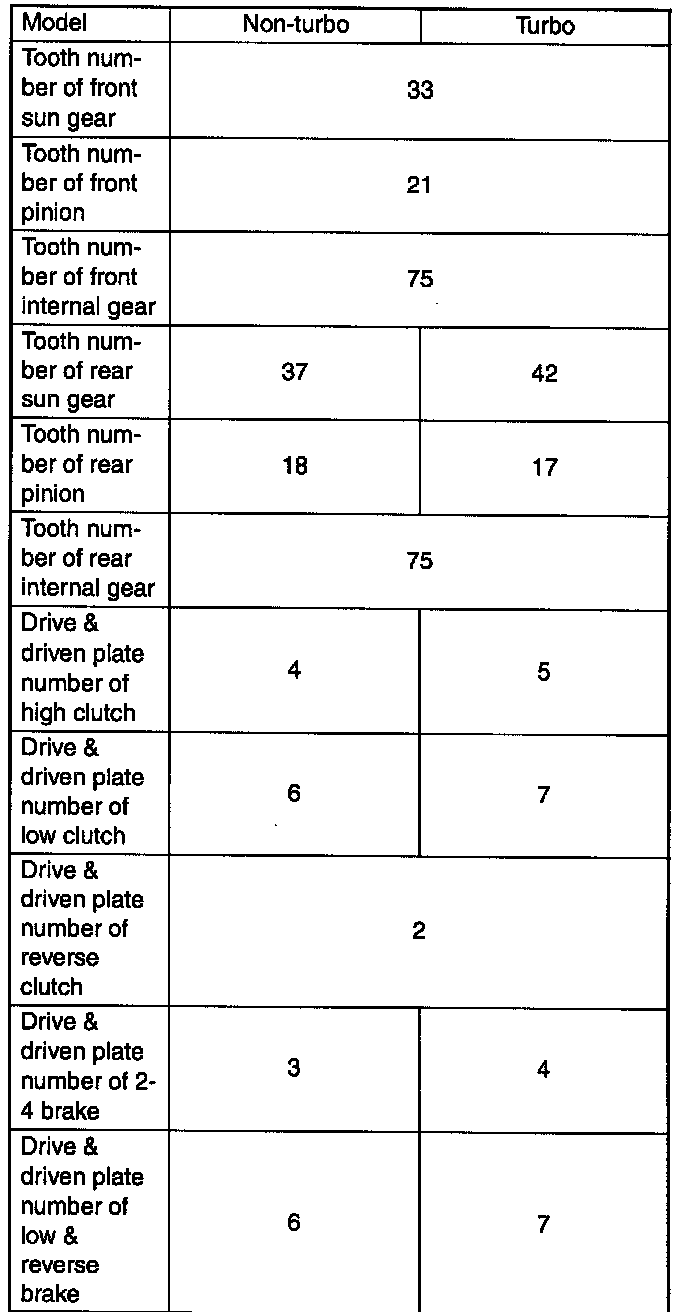

PLANETARY GEAR AND PLATE

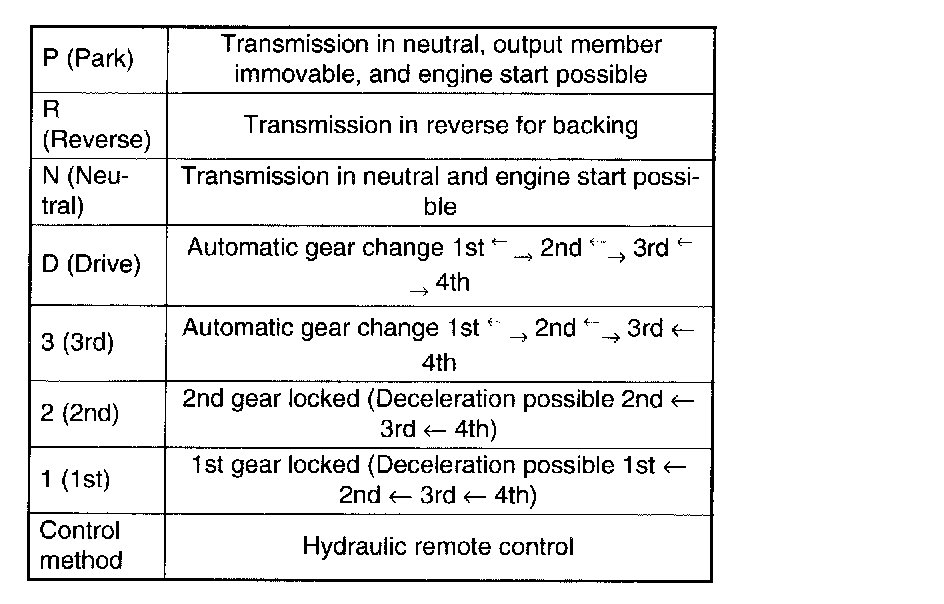

SELECTOR POSITION

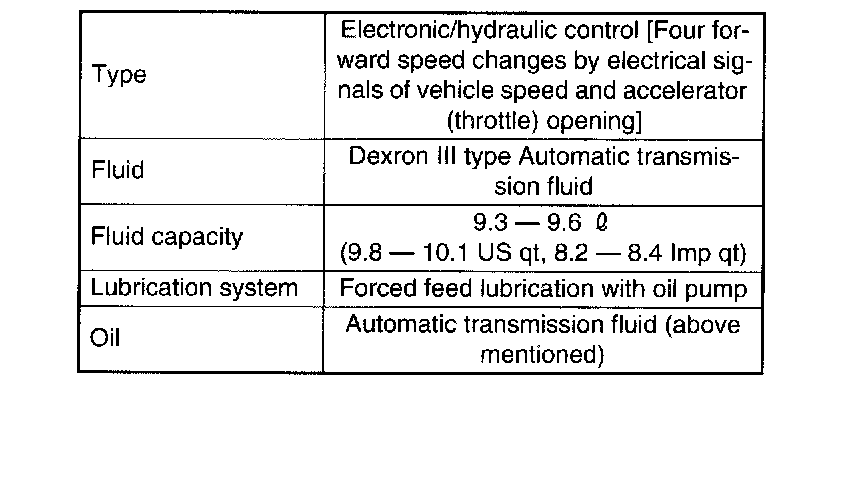

HYDRAULIC CONTROL AND LUBRICATION

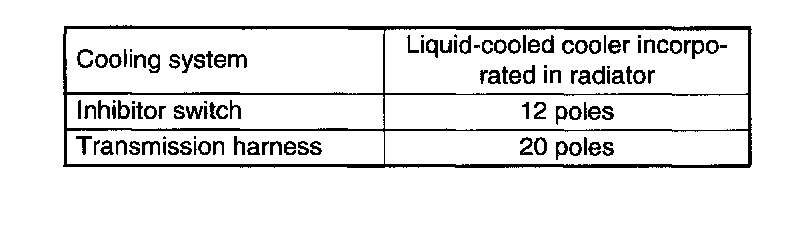

COOLING AND HARNESS

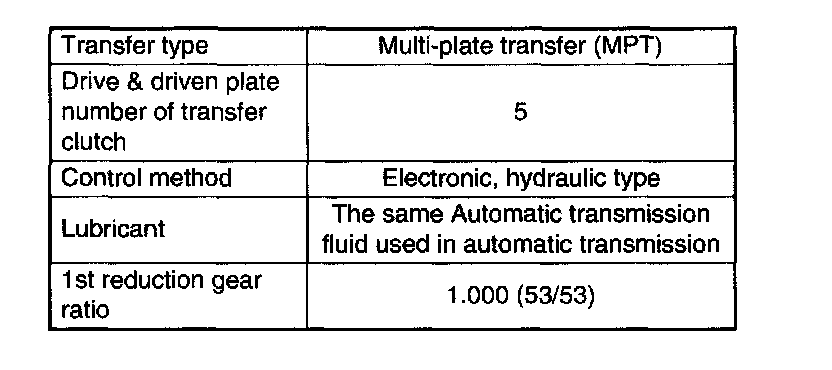

TRANSFER

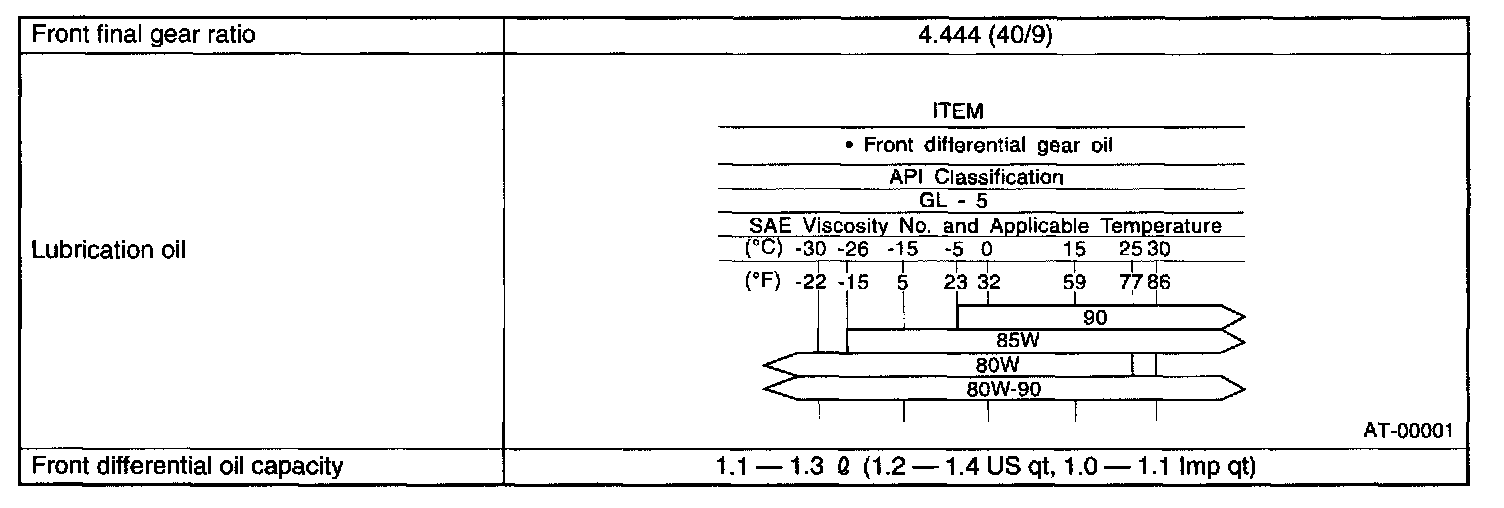

FINAL REDUCTION
