System Specifications

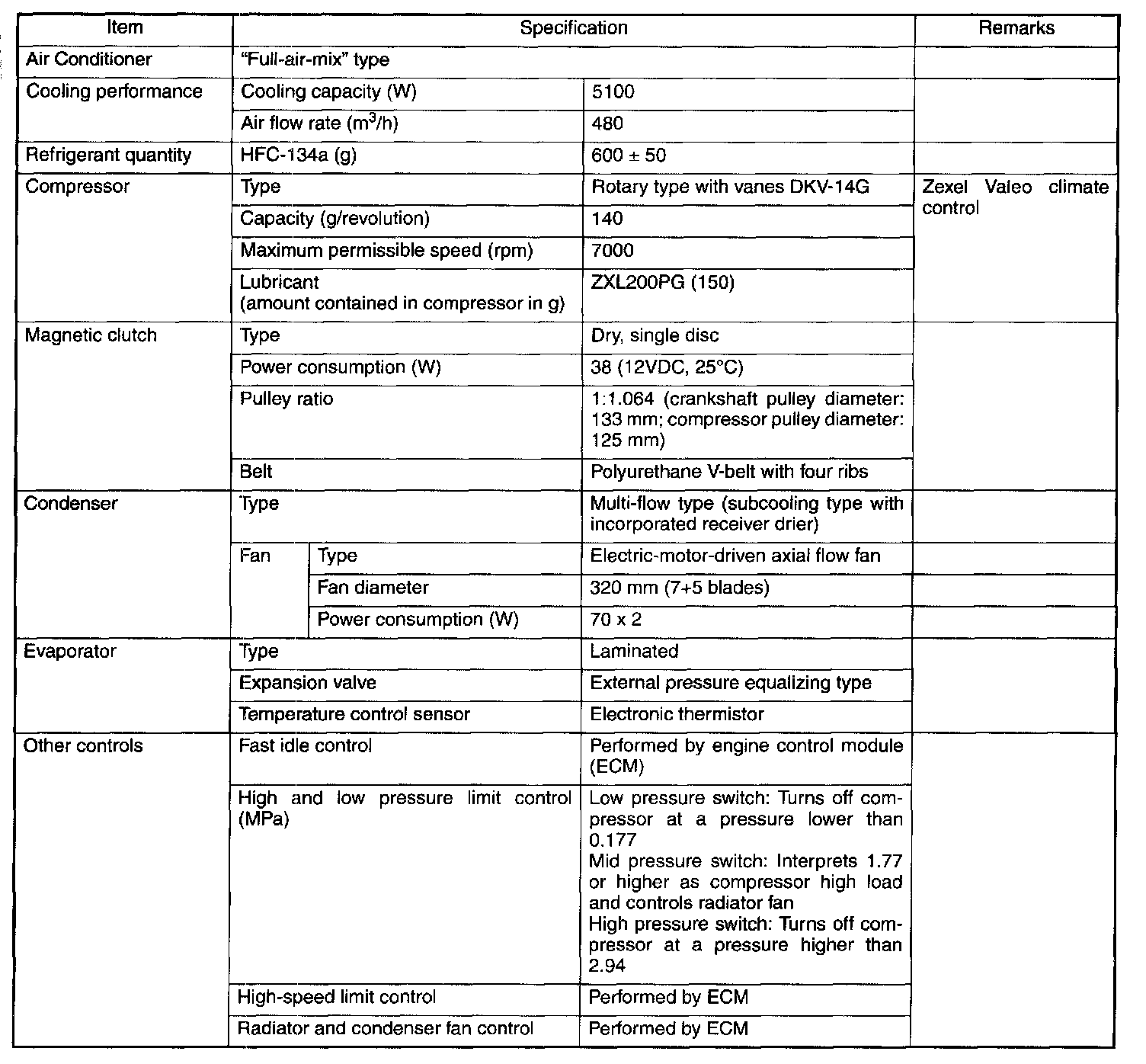

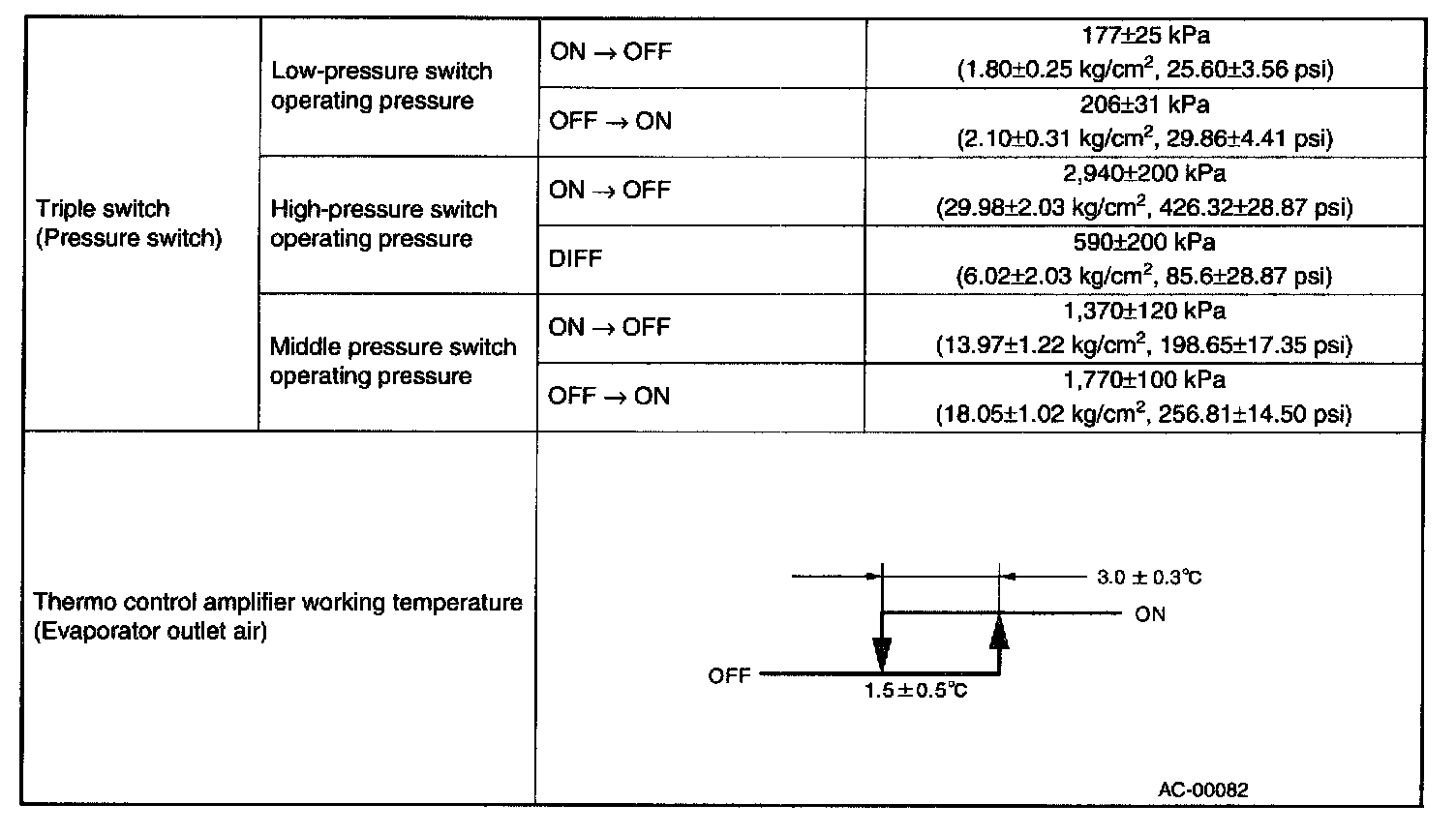

Manual Air Conditioning System:

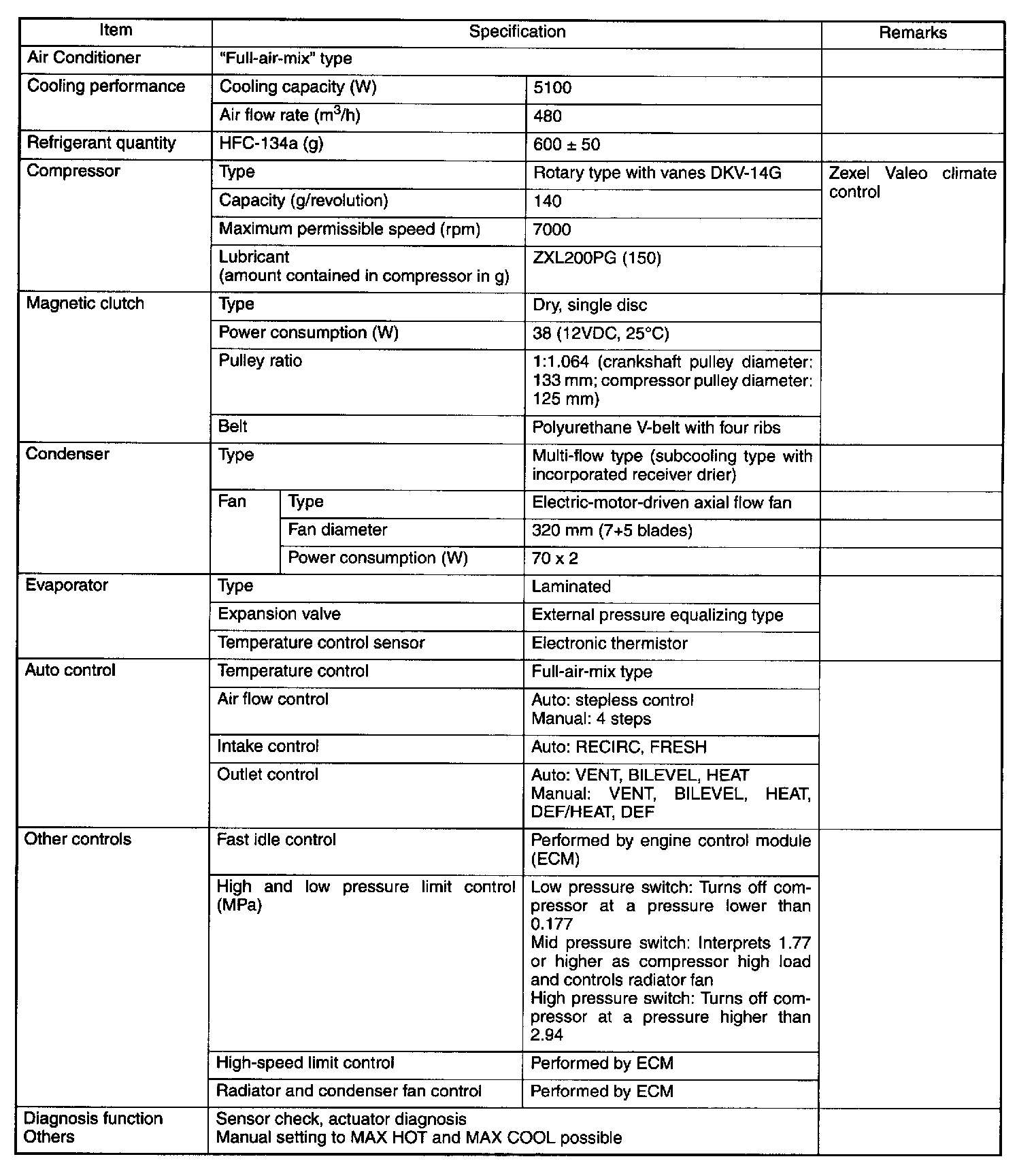

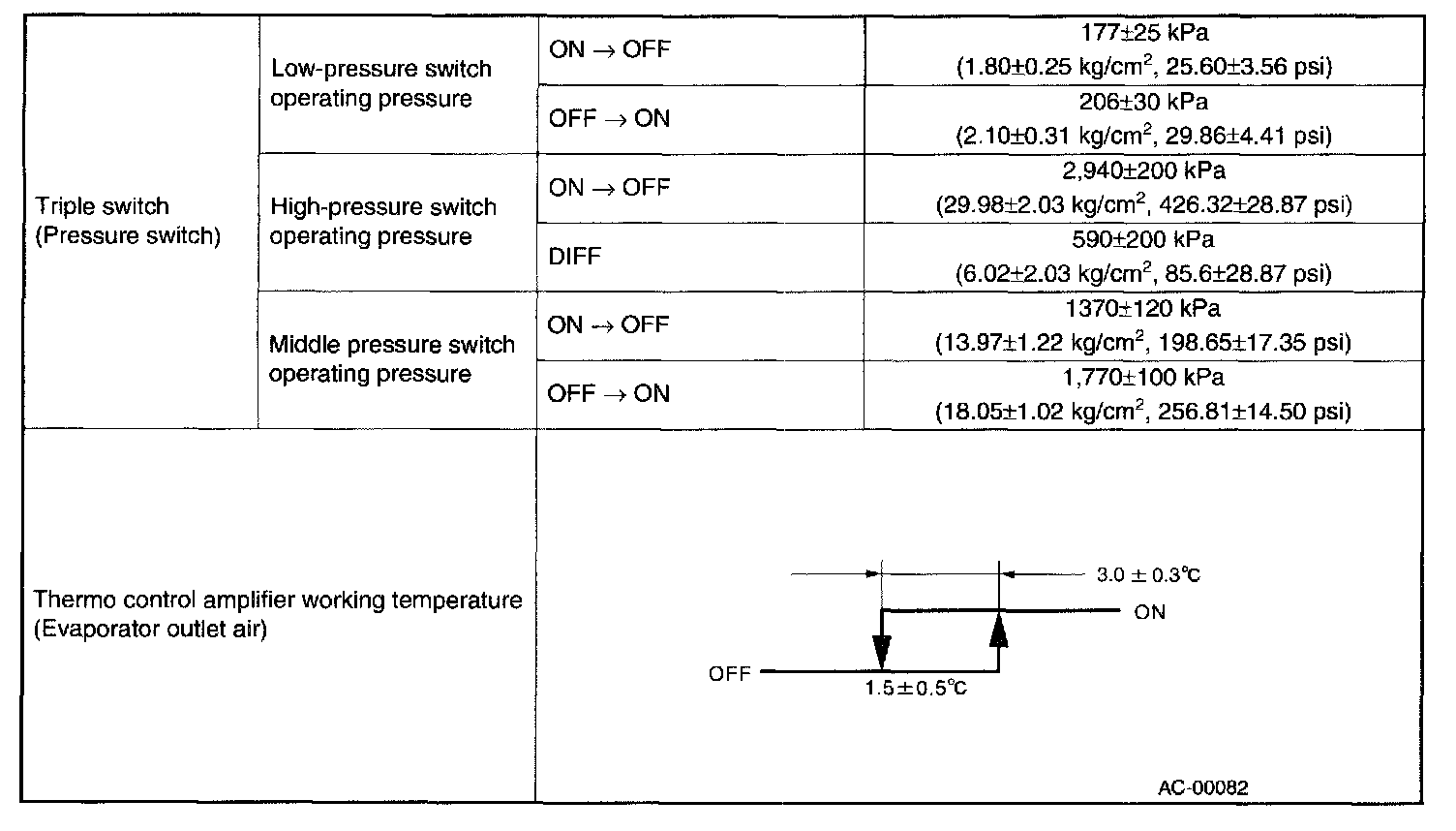

Automatic Air Conditioning System:

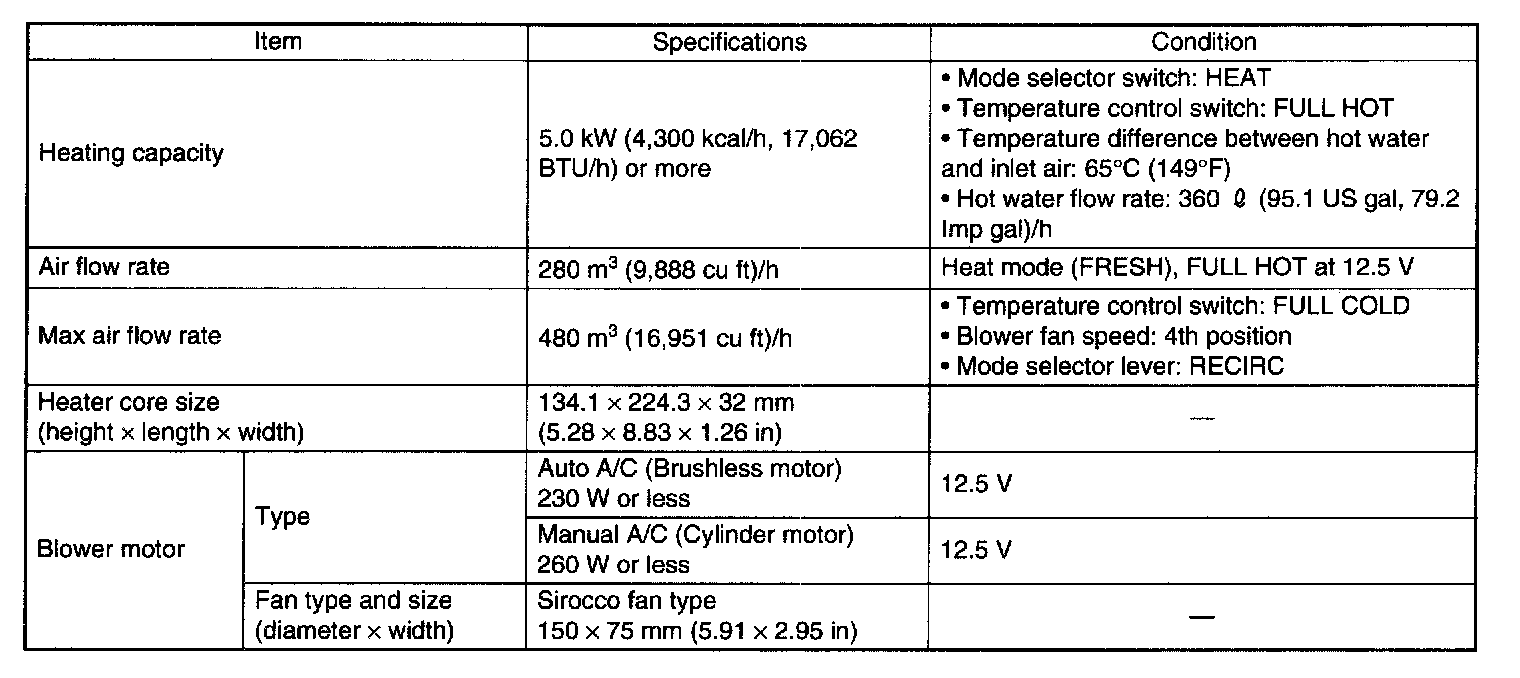

Heater System:




A/C System - Auto A/C Model:




A/C System - Auto A/C Model:

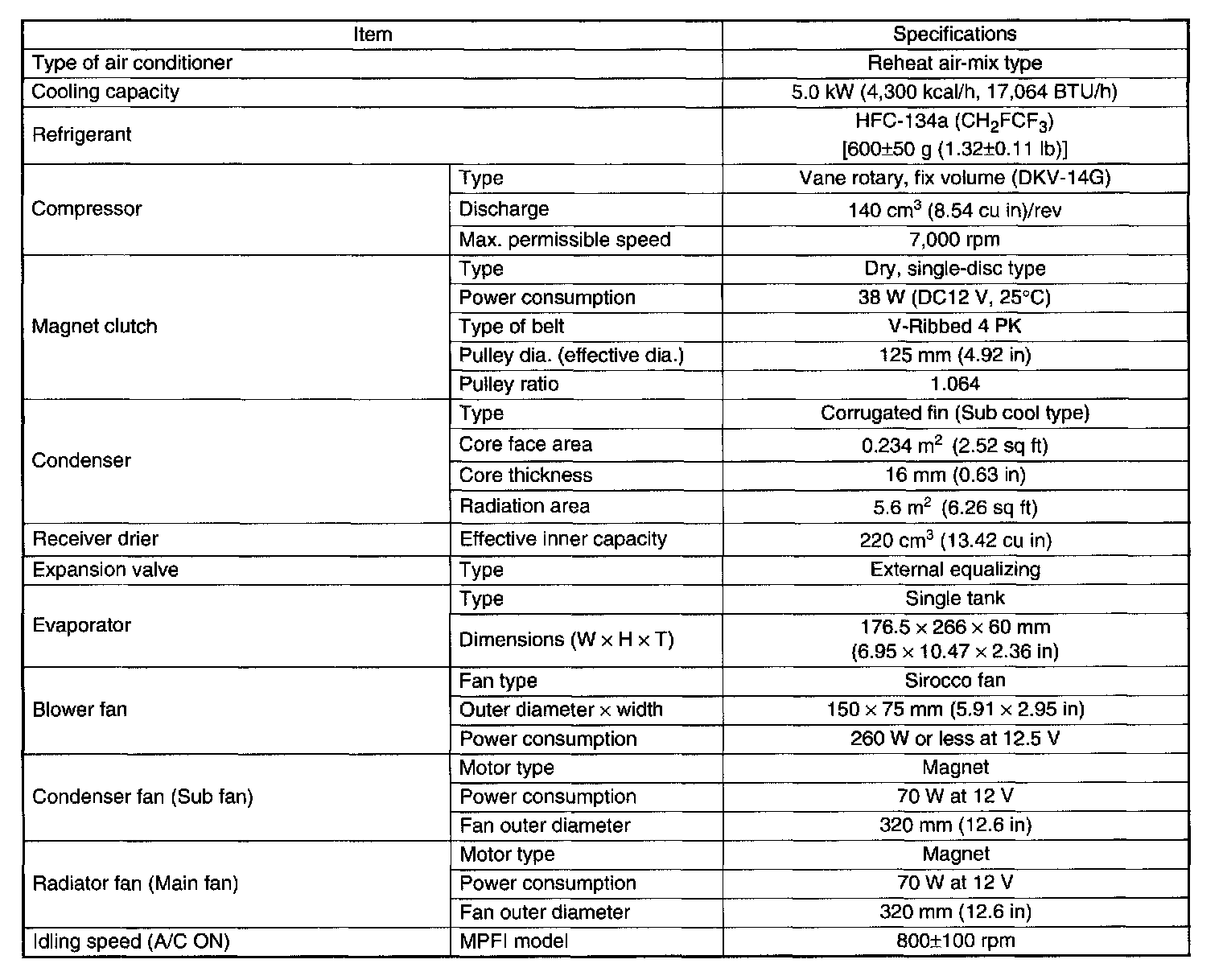

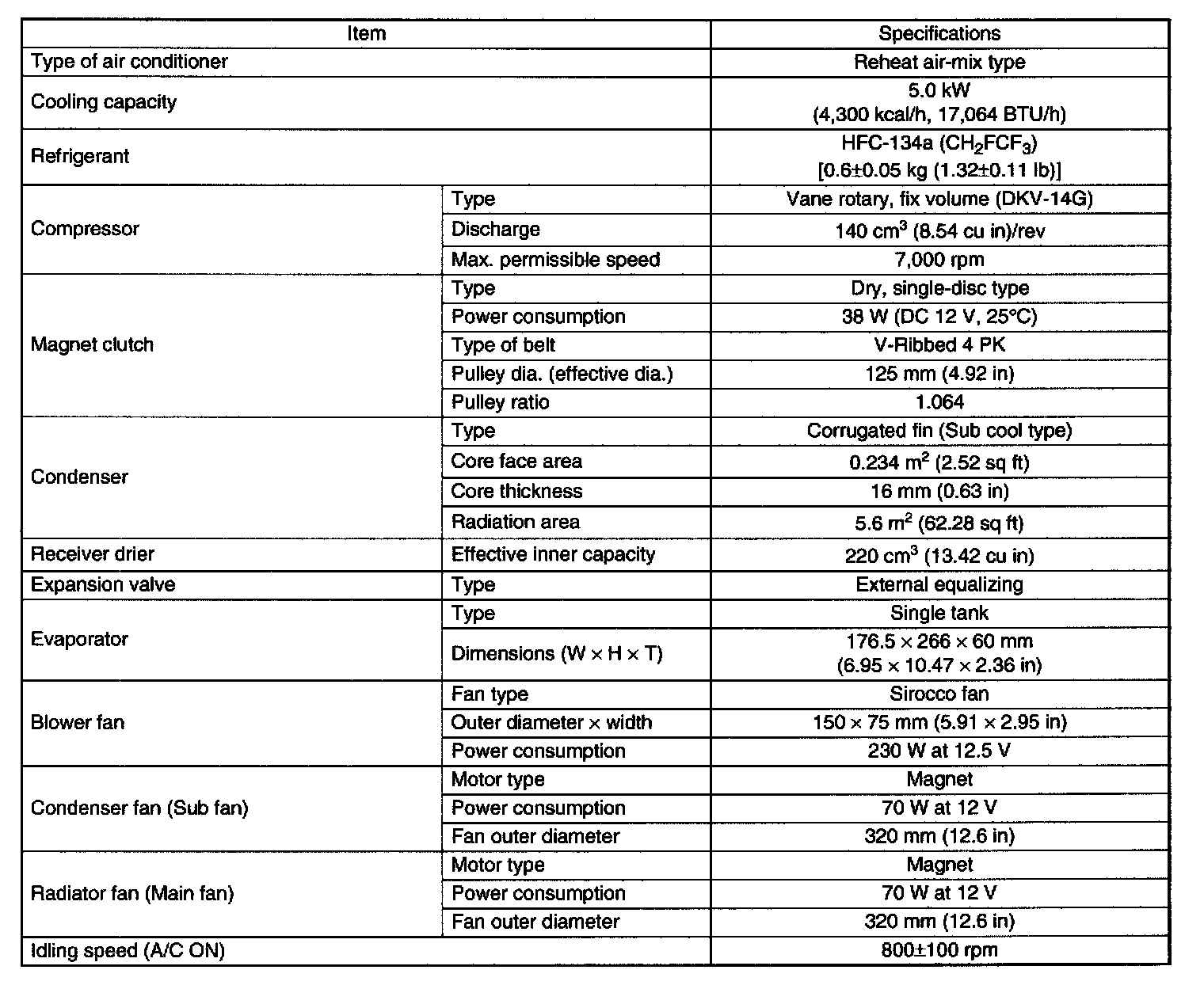

A/C System - Manual A/C Model:




A/C System - Manual A/C Model:
