Integrated Module

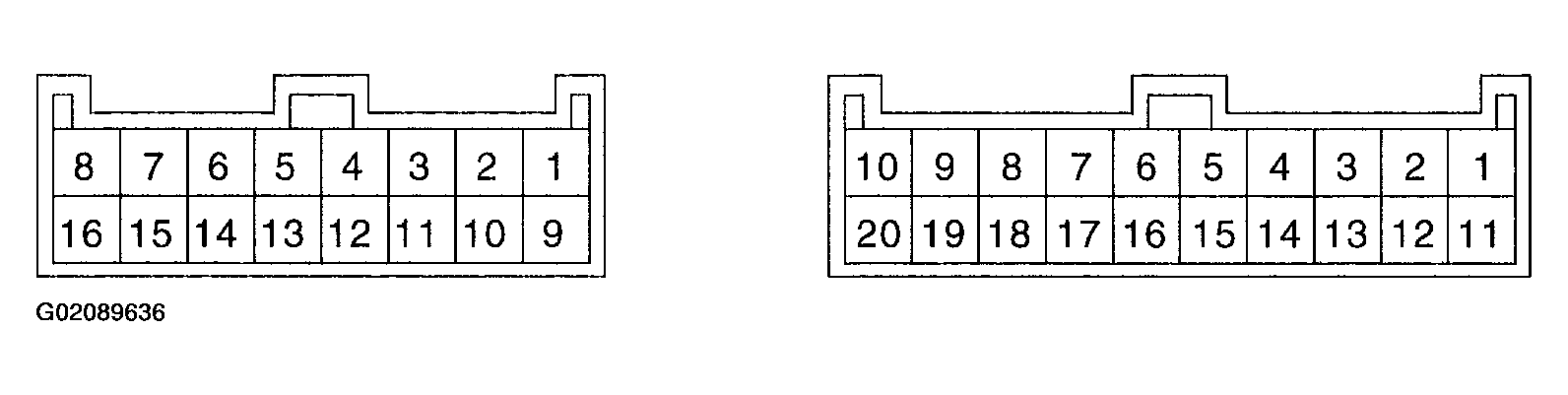

Fig 1: Identifying Connector Terminals Of Integrated Module
G02089636Courtesy of SUBARU OF AMERICA, INC.

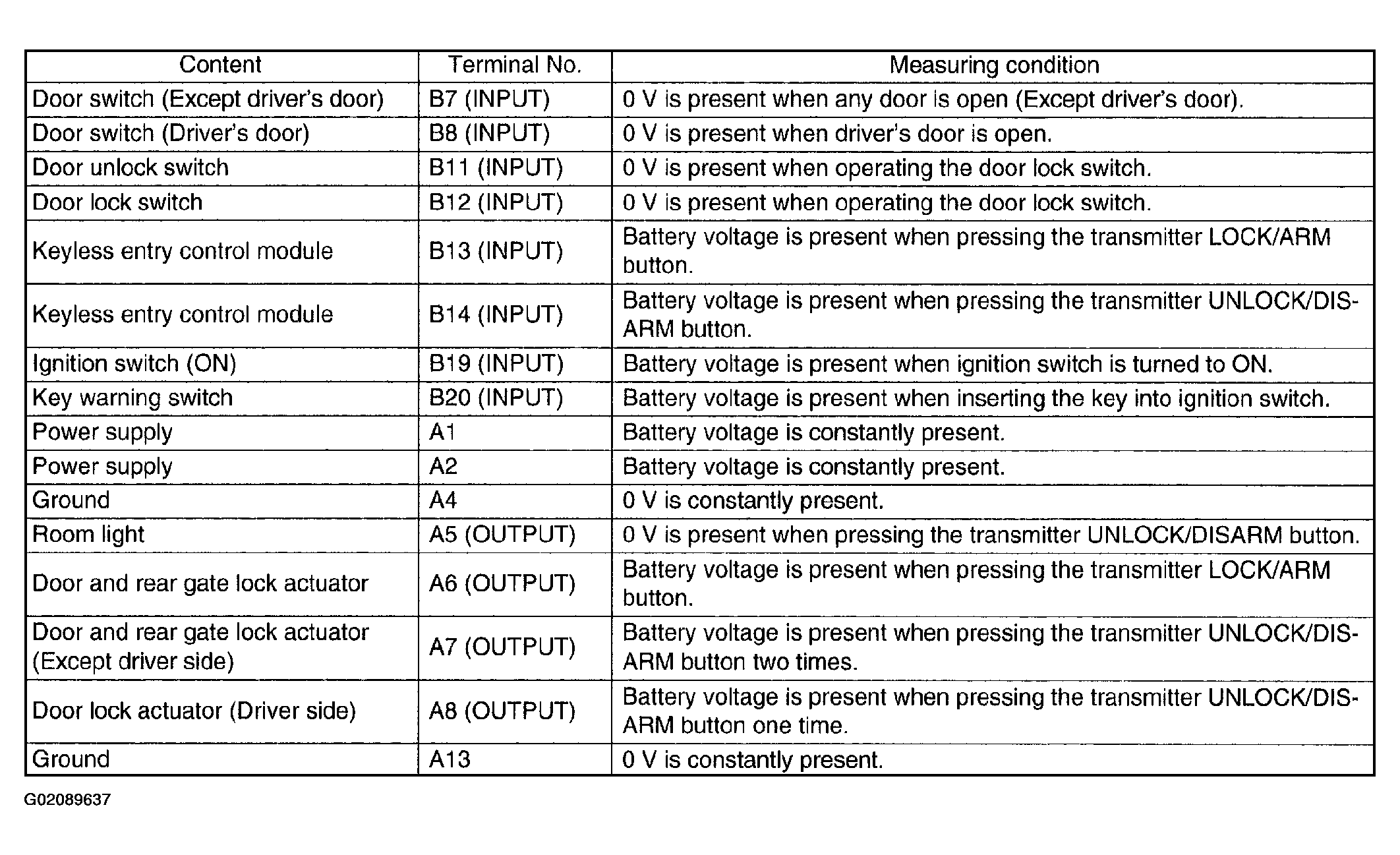

Fig 2: Integrated Module Specifications Chart
G02089637Courtesy of SUBARU OF AMERICA, INC.
