Power Assisted System

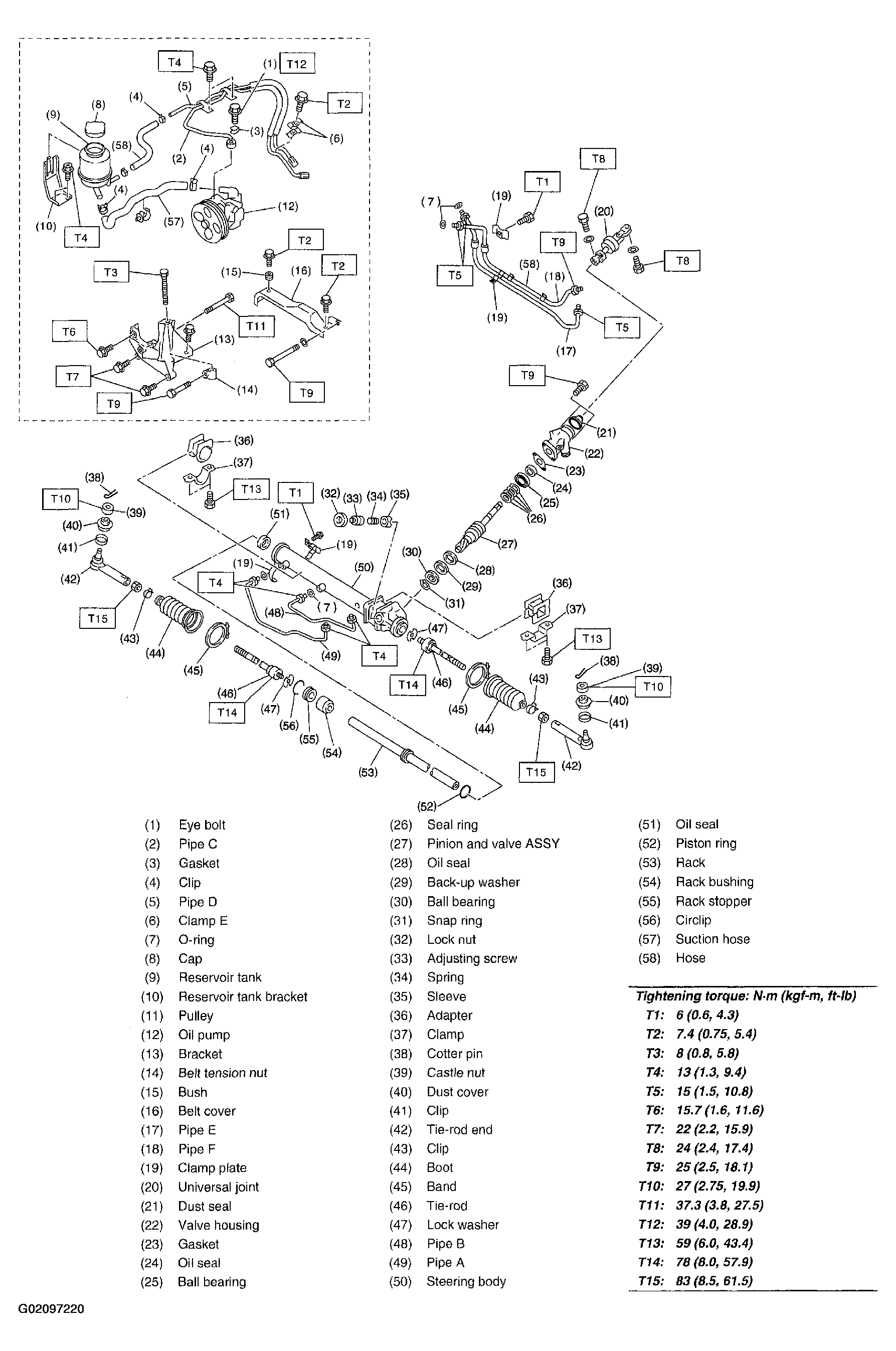

Fig 1: Exploded View Of Power Assisted System
Courtesy of SUBARU OF AMERICA, INC.
Courtesy of SUBARU OF AMERICA, INC.
