Forester X, Automatic
>>
Repair and Diagnosis
>>
Transmission
>>
Automatic Trans
>>
Automatic Transmission - Mechanism & Function
>>
Schematic Drawing
>>
R Range
April 5, 2026:
LEMON Manuals is launched!
Read the announcement.
R Range

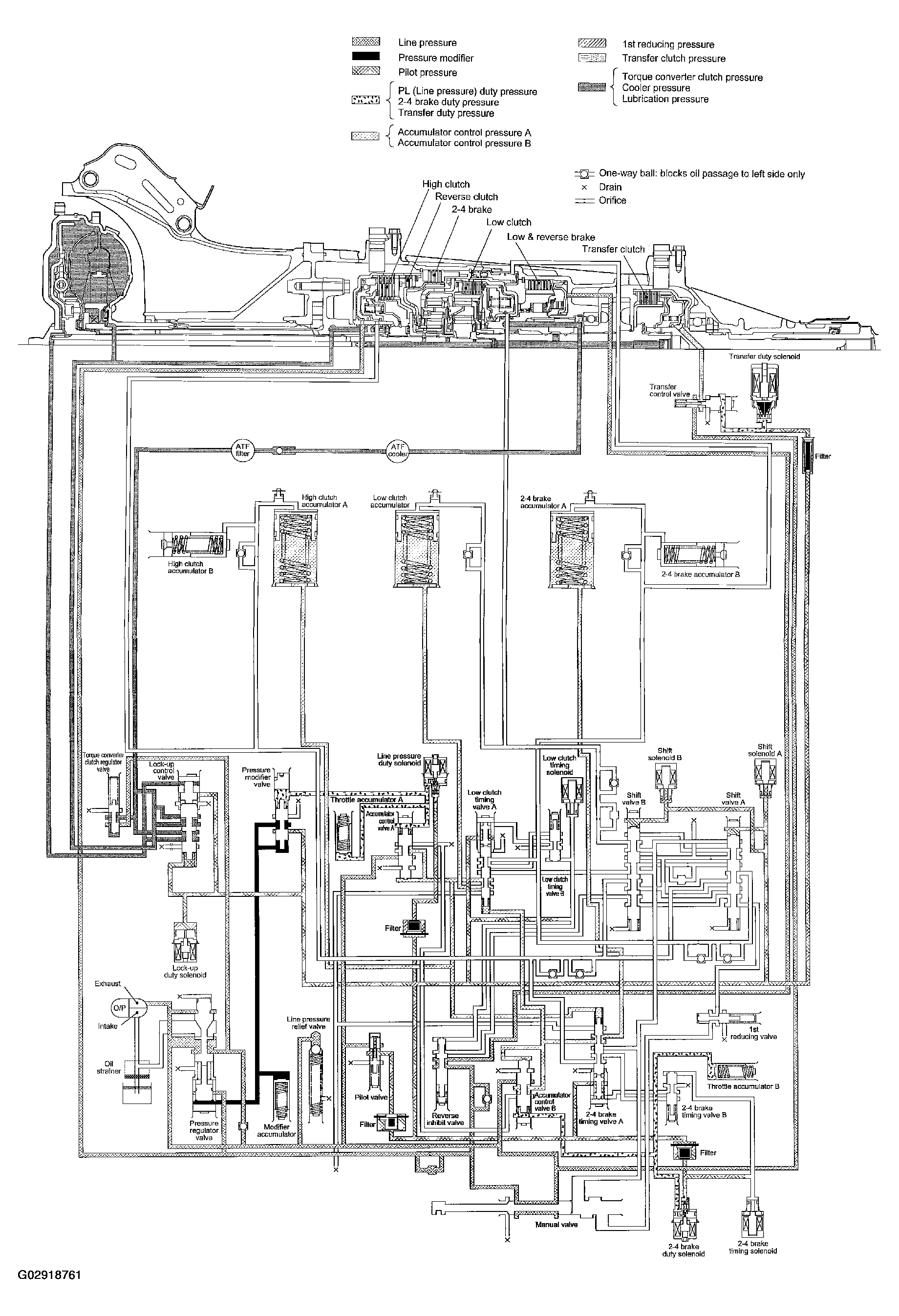

Fig 1: Hydraulic Schematic Diagram - R Range
Courtesy of SUBARU OF AMERICA, INC.
Courtesy of SUBARU OF AMERICA, INC.
