Dropping Resistor: Installation

  1. Install in the reverse order of removal.
    1. Tightening torque:  6.4 N.m (0.65 kgf-m, 4.7 ft-lb)

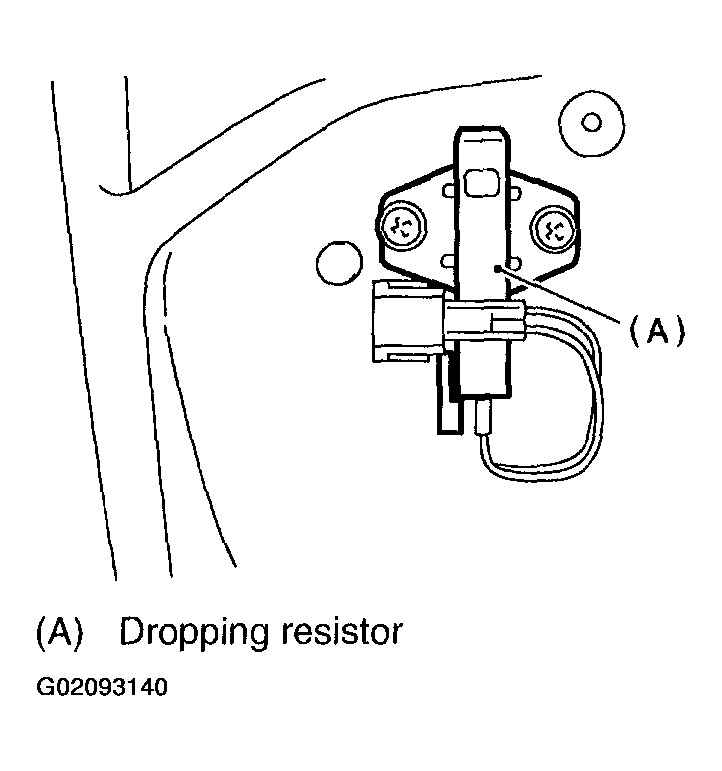

    Fig 1: Installing Dropping Resistor
    G02093140Courtesy of SUBARU OF AMERICA, INC.
