Side Retainer

  1. Install bearing outer race to side retainer.
  2. Install a new oil seal using the ST and hammer.

    ST 18675AA000 INSTALLER

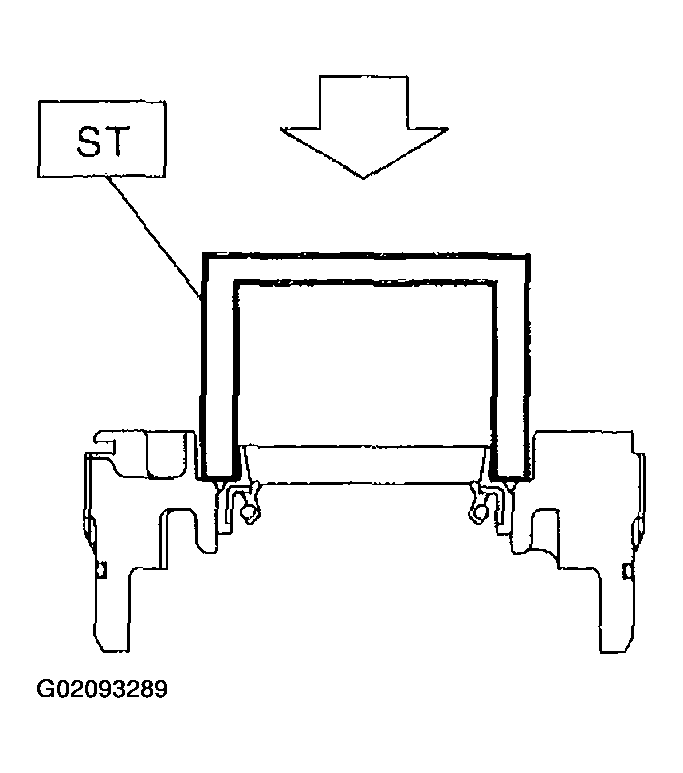

    Fig 1: Installing Oil Seal
    G02093289Courtesy of SUBARU OF AMERICA, INC.
  3. Install new O-ring.

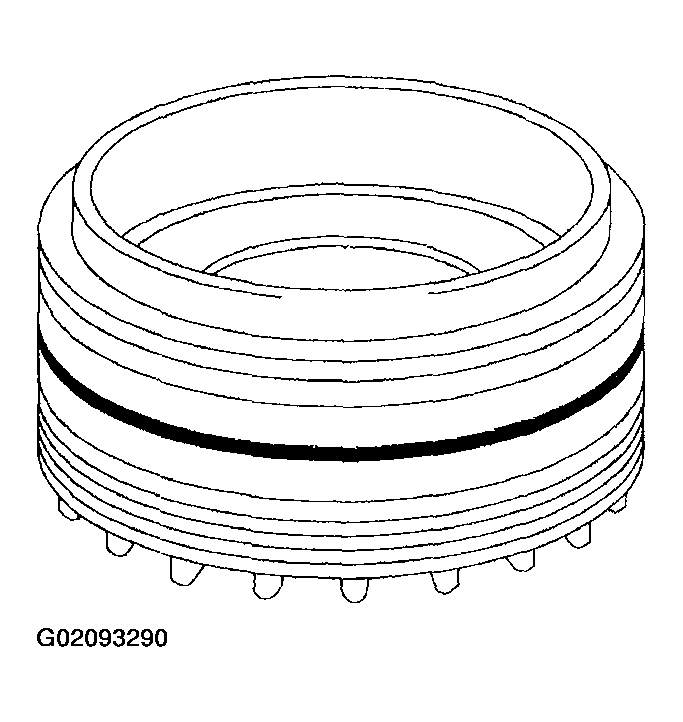

    Fig 2: Installing O-Ring
    G02093290Courtesy of SUBARU OF AMERICA, INC.
