Differential Case Assembly

Using a press and ST, remove the taper roller bearing.
ST 498077000 REMOVER

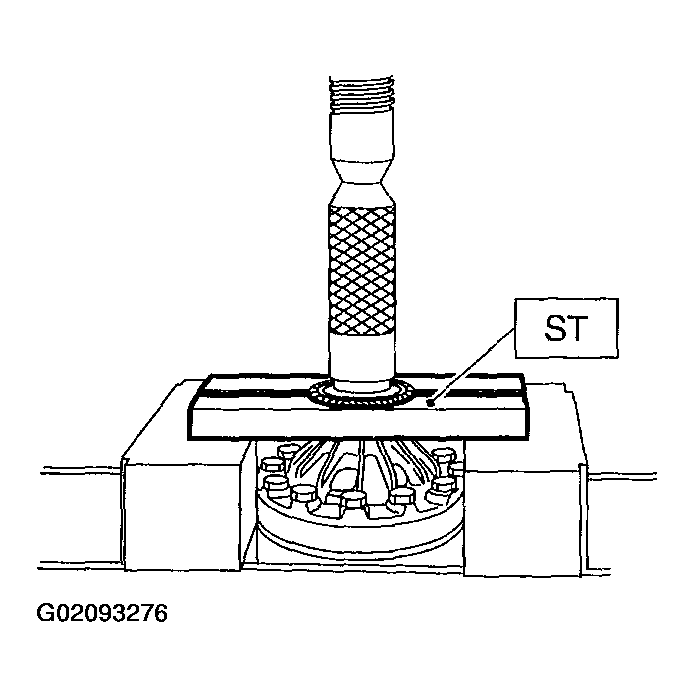

Fig 1: Removing Taper Roller Bearing
Courtesy of SUBARU OF AMERICA, INC.
Secure the case in a vise and remove the crown gear tightening bolts, then separate the crown gear, case (RH) and case (LH).

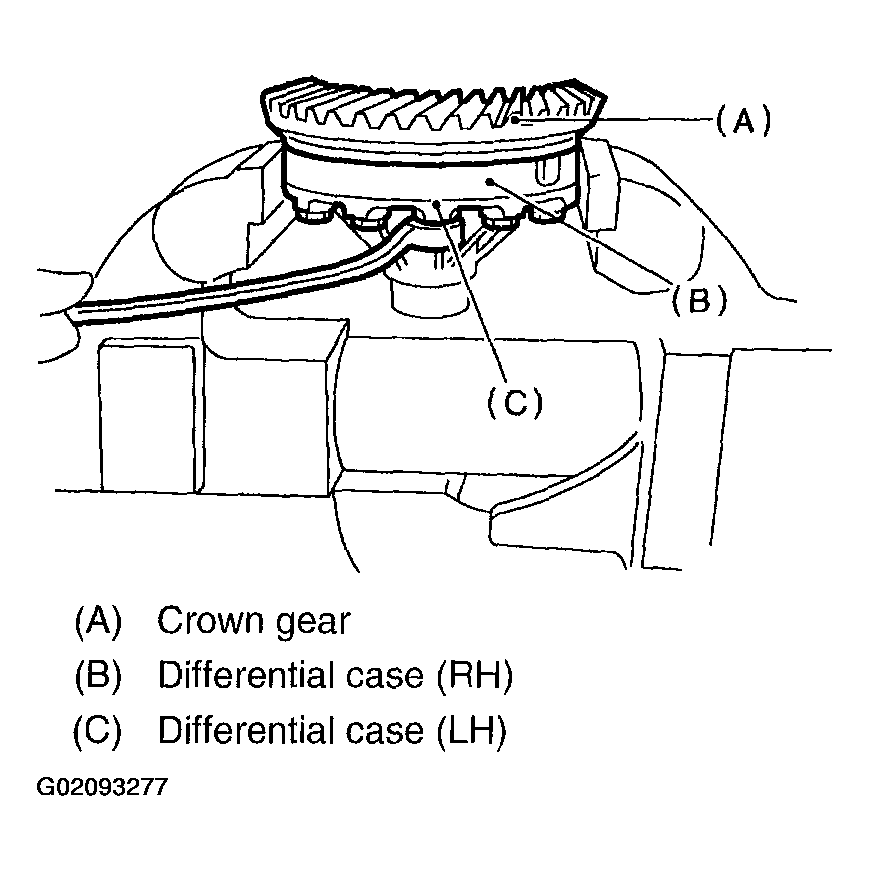

Fig 2: Removing Crown Gear Tightening Bolts
Courtesy of SUBARU OF AMERICA, INC.
Pull out the straight pin and shaft, and remove the differential bevel gear, washer, and differential bevel pinion.

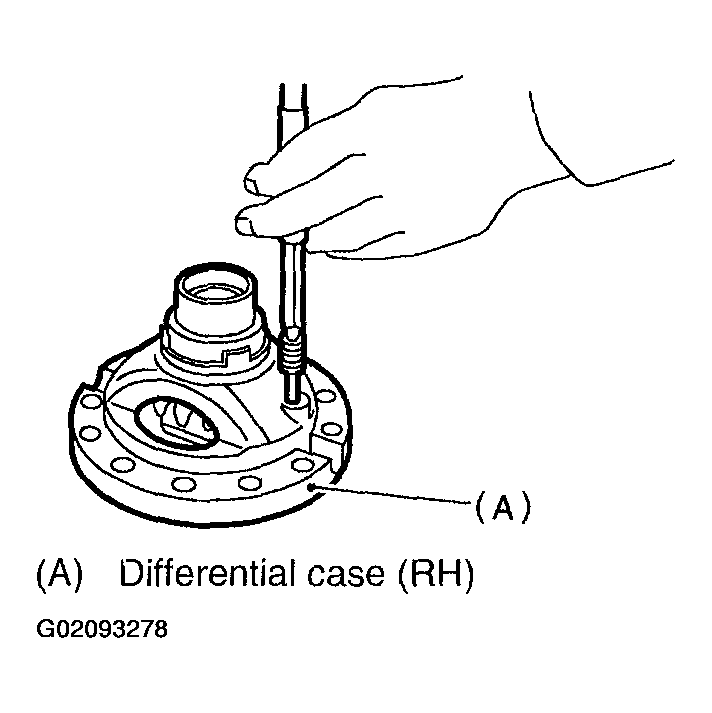

Fig 3: Removing Straight Pin & Shaft
Courtesy of SUBARU OF AMERICA, INC.
