Control Valve And Harness Routing

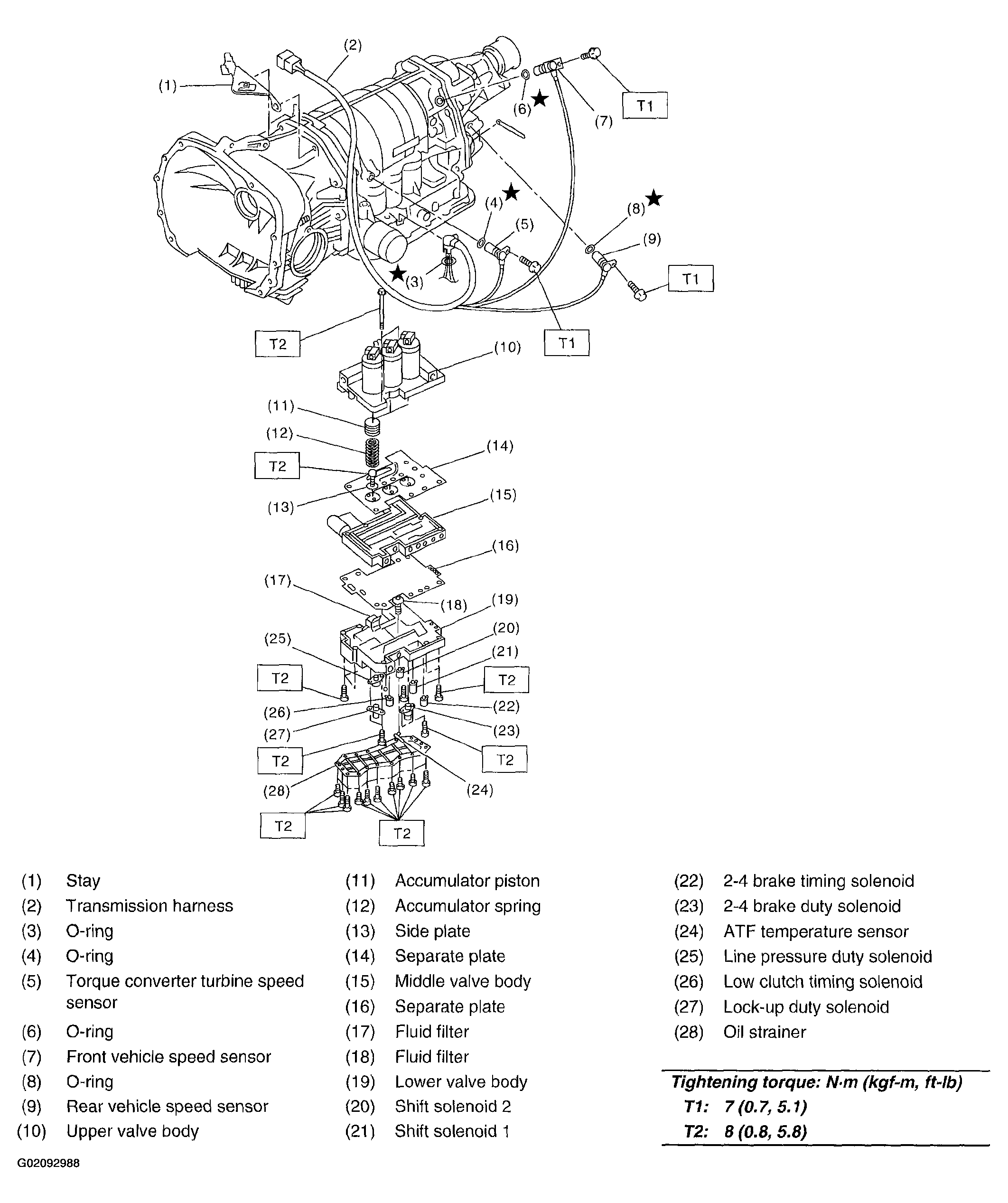

Fig 1: Exploded View Of Control Valve & Harness Routing With Torque Specifications
G02092988Courtesy of SUBARU OF AMERICA, INC.
