Transfer And Extension Case

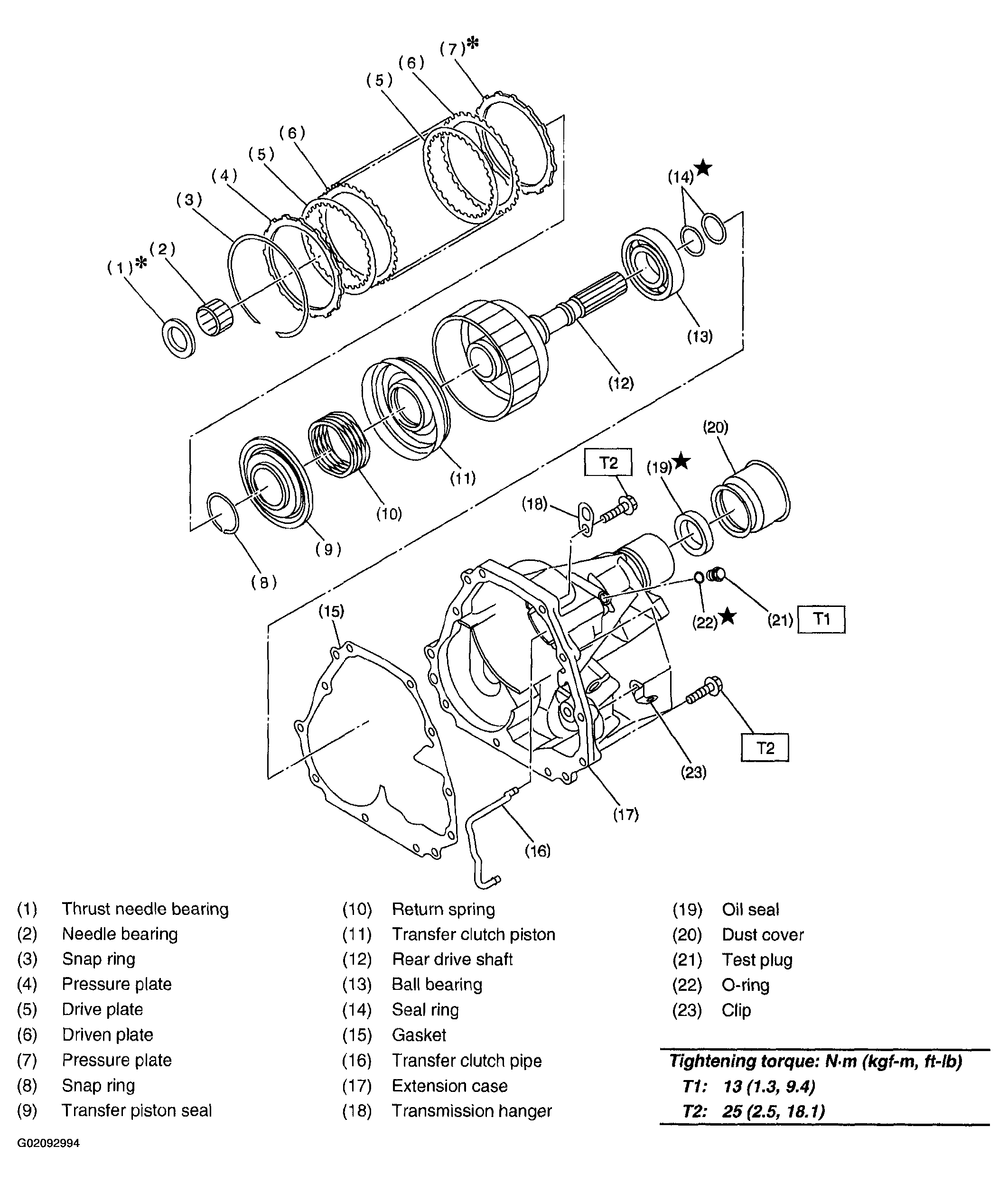

Fig 1: Exploded View Of Transfer & Extension Case With Torque Specifications
G02092994Courtesy of SUBARU OF AMERICA, INC.
