AT Shift Lock System: Inspection: Notes

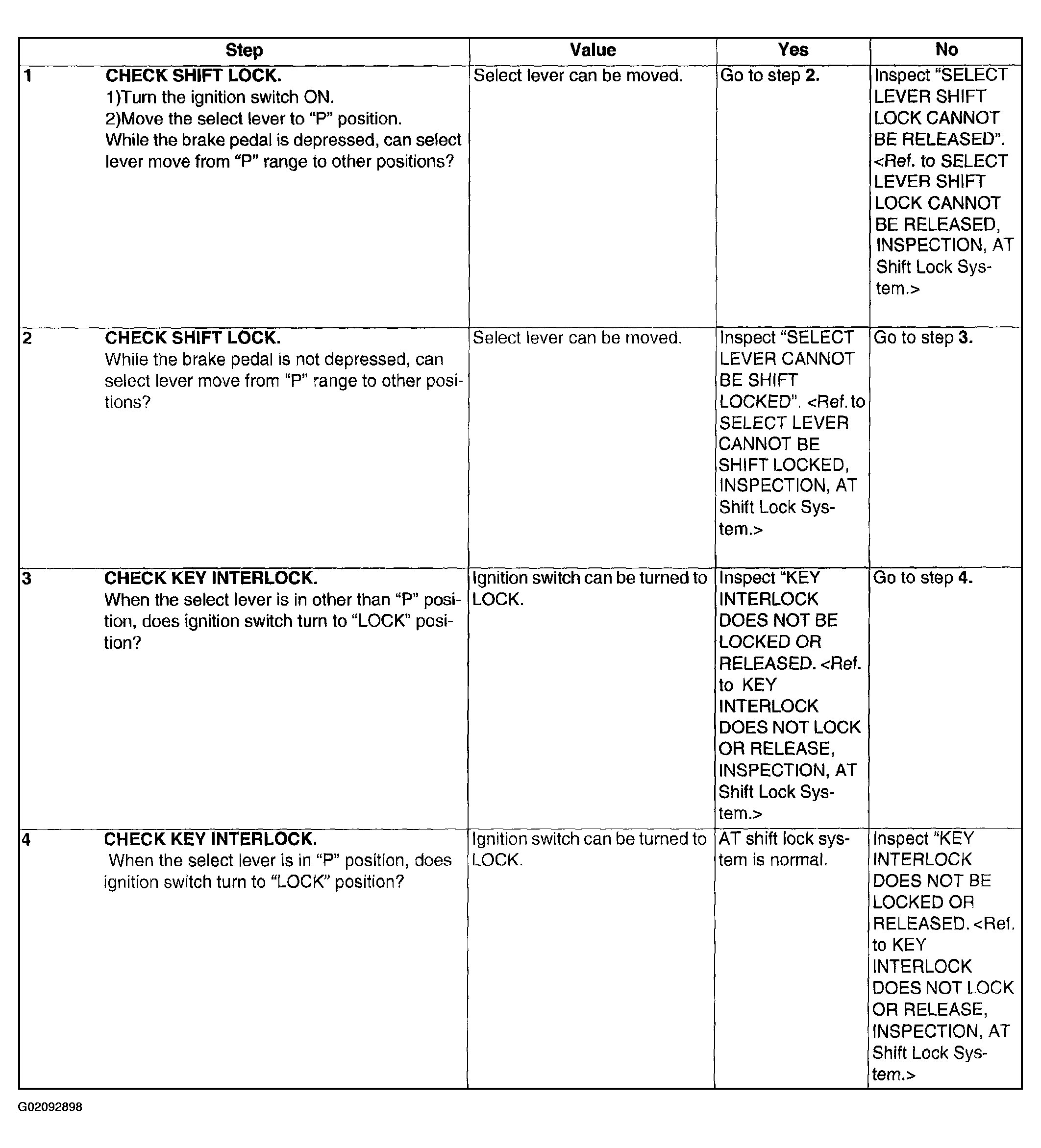

Fig 1: Inspection Of Shift Lock System
Courtesy of SUBARU OF AMERICA, INC.
Courtesy of SUBARU OF AMERICA, INC.
