MT Gear Shift Lever: Installation

Install the joint to transmission and secure with the spring pin.

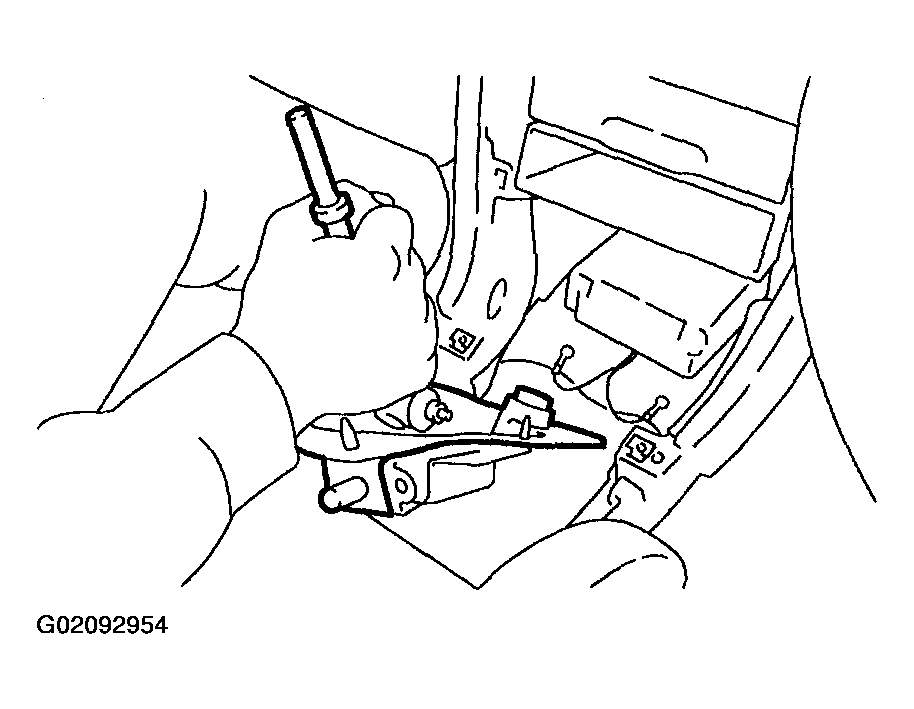

Insert the gear shift lever from room side.
NOTE: After inserting the rod and stay, temporarily put them onto transmission mount.

Fig 1: Inserting Rod
Courtesy of SUBARU OF AMERICA, INC.
Lift-up the vehicle.
Install the joint to shifter arm.
Insert the spring pin.

Fig 2: Inserting Spring Pin
Courtesy of SUBARU OF AMERICA, INC.
Mount the cushion rubber on the body.
Tightening torque:
1. 18 N.m (1.8 kgf-m, 13.0 ft-lb)
Fig 3: Mounting Cushion Rubber On Body
Courtesy of SUBARU OF AMERICA, INC.

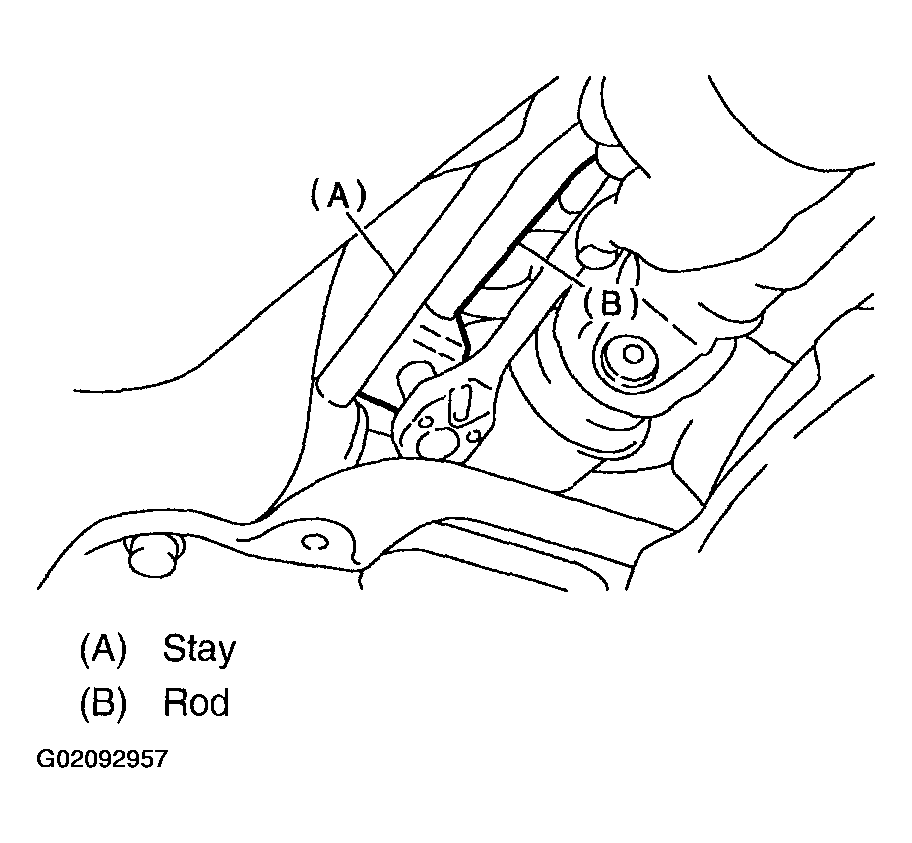

Connect the rod to the joint.
Tightening torque:
1. 18 N.m (1.8 kgf-m, 13.0 ft-lb)
Fig 4: Connecting Rod To Joint
Courtesy of SUBARU OF AMERICA, INC.

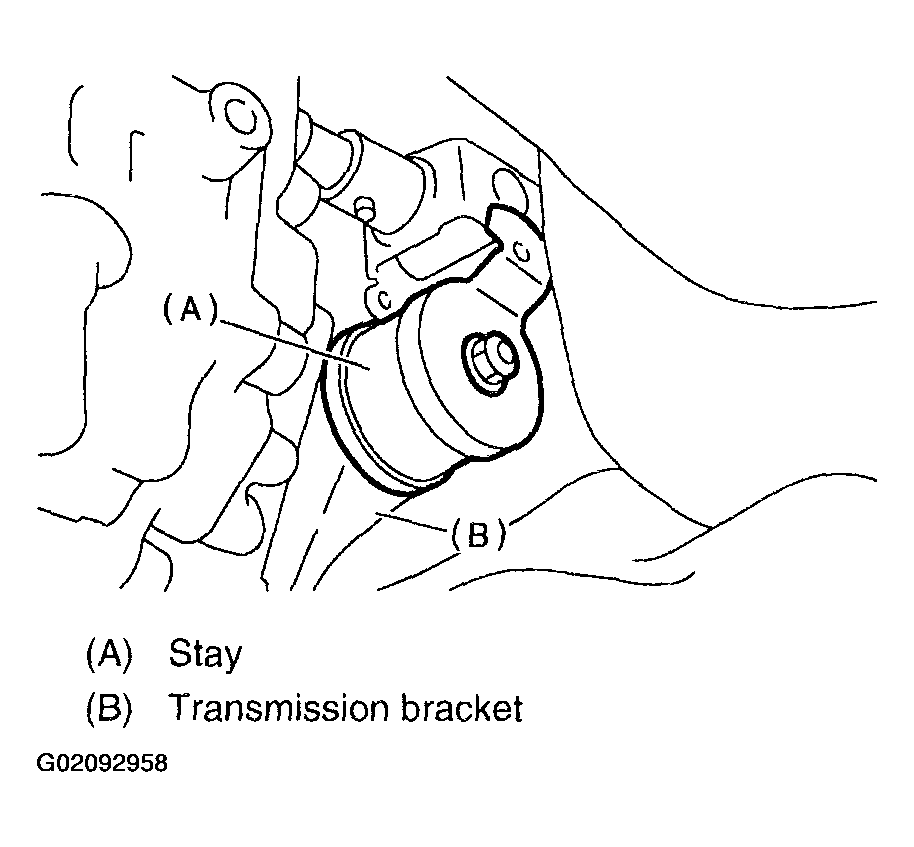

Connect the stay to transmission bracket.
Tightening torque:
1. 18 N.m (1.8 kgf-m, 13.0 ft-lb)
Fig 5: Connecting Stay To Transmission Bracket
Courtesy of SUBARU OF AMERICA, INC.
Install the heat shield cover. (If equipped)
Install the rear exhaust pipe and muffler.
Refer to INSTALLATION , Rear Exhaust Pipe and INSTALLATION , Muffler.
Lower the vehicle.

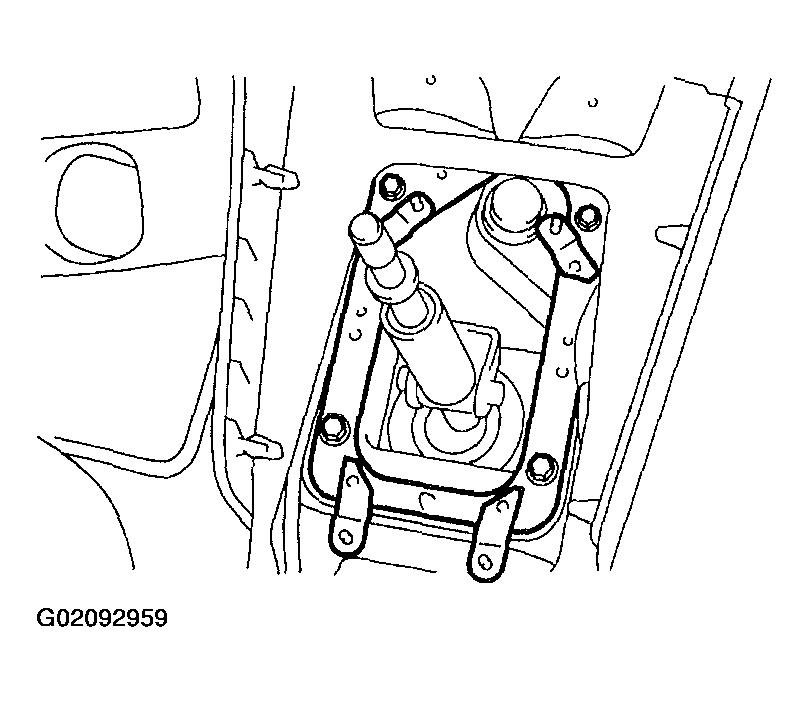

Install the plate COMPL to body.
Tightening torque:
1. 7.5 N.m (0.76 kgf-m, 5.5 ft-lb)
Fig 6: Installing Plate COMPL To Body
Courtesy of SUBARU OF AMERICA, INC.

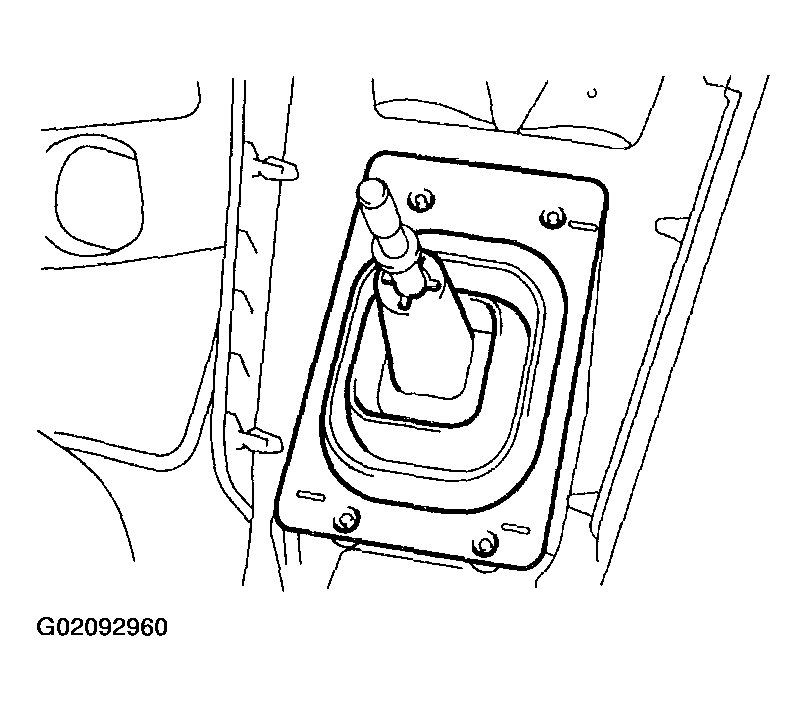

Install the boot and insulator assembly to vehicle in proper direction.

Fig 7: Installing Boot & Insulator Assembly To Vehicle In Proper Direction
Courtesy of SUBARU OF AMERICA, INC.
Install the clamp.
Install the console box. Refer to INSTALLATION , Console Box.
