Select Cable: Installation

Install the select cable to plate assembly.
Tightening torque:
1. 18 N.m (1.8 kgf-m, 13.0 ft-lb)
Install the select cable to range select lever.
Install the plate assembly to transmission.
Tightening torque:
1. T: 24.5 N.m (2.5 kgf-m, 18.1 ft-lb)

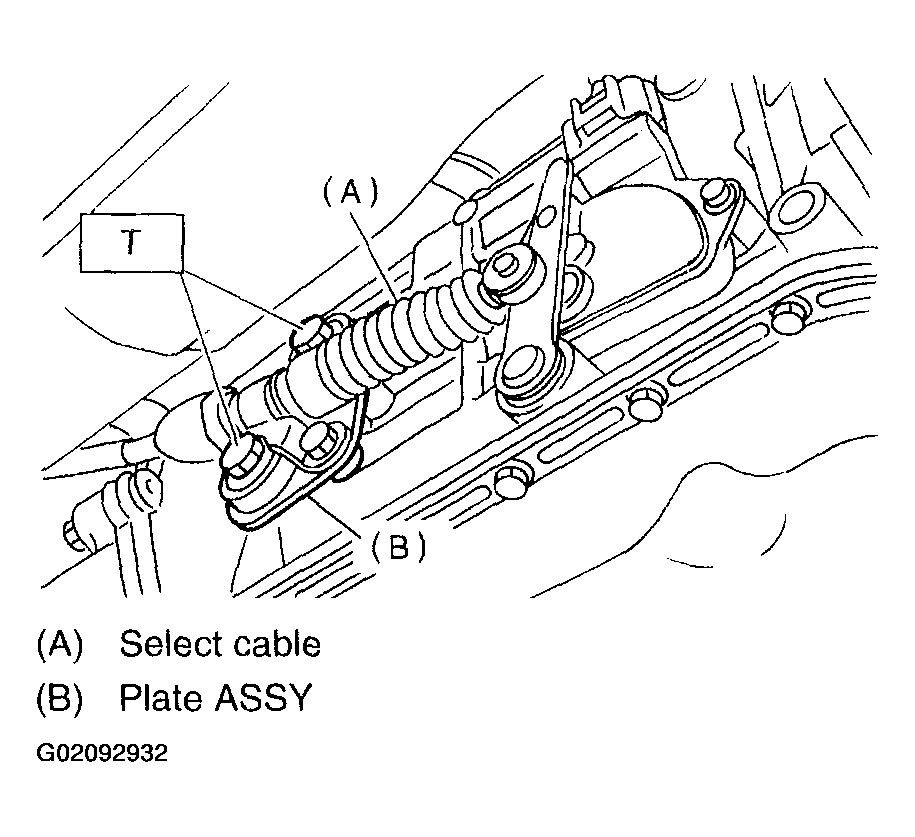

Fig 1: Installing Select Cable To Range Select Lever
Courtesy of SUBARU OF AMERICA, INC.
Install the washer and snap pin to range select lever.

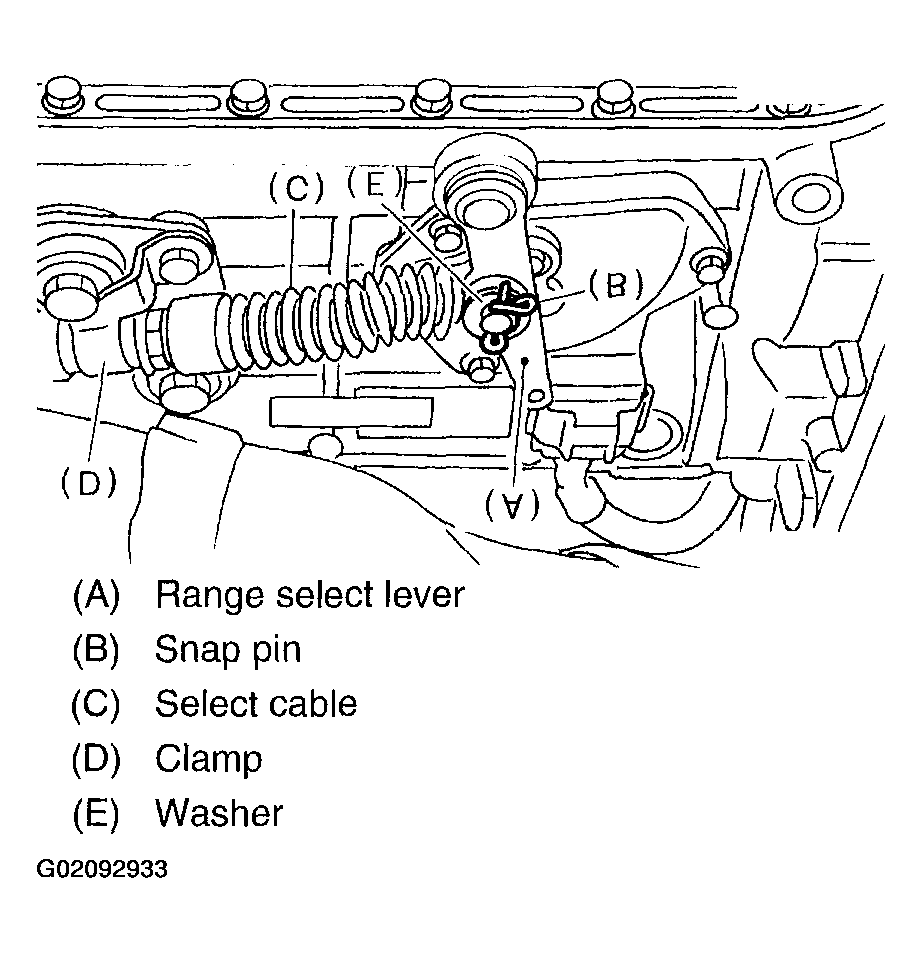

Fig 2: Installing Washer & Snap Pin To Range Select Lever
Courtesy of SUBARU OF AMERICA, INC.
Move the select lever to "N" position, then adjust the select cable position. Refer to ADJUSTMENT , Select Cable.
Install the heat shield cover. (If equipped)
Install the front and center exhaust pipe.
Refer to INSTALLATION , Front Exhaust Pipe.
