Select Lever: Disassembly

Remove the packing.
Remove the grip.
Remove the indicator light, and then remove the indicator cover.
NOTE: Be careful not to break the indicator light during removal.

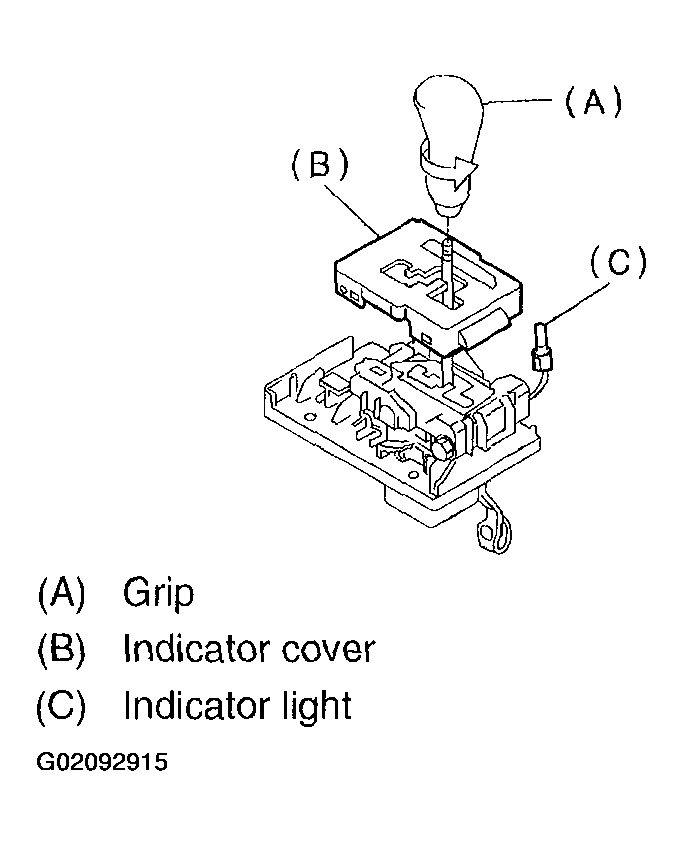

Fig 1: Removing Indicator Light & Indicator Cover
Courtesy of SUBARU OF AMERICA, INC.
Remove the slider.
Remove the cover.

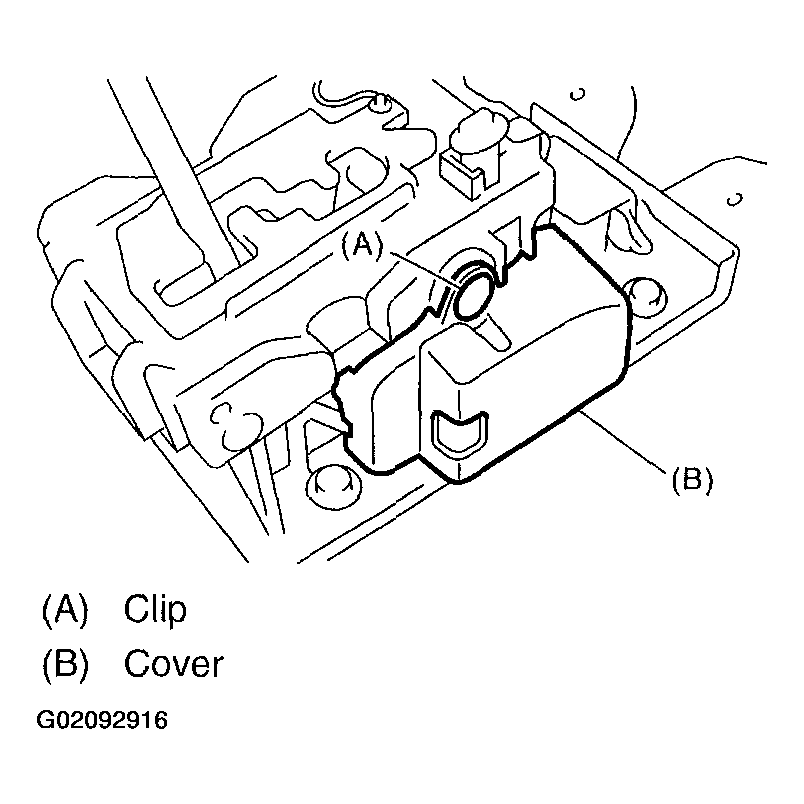

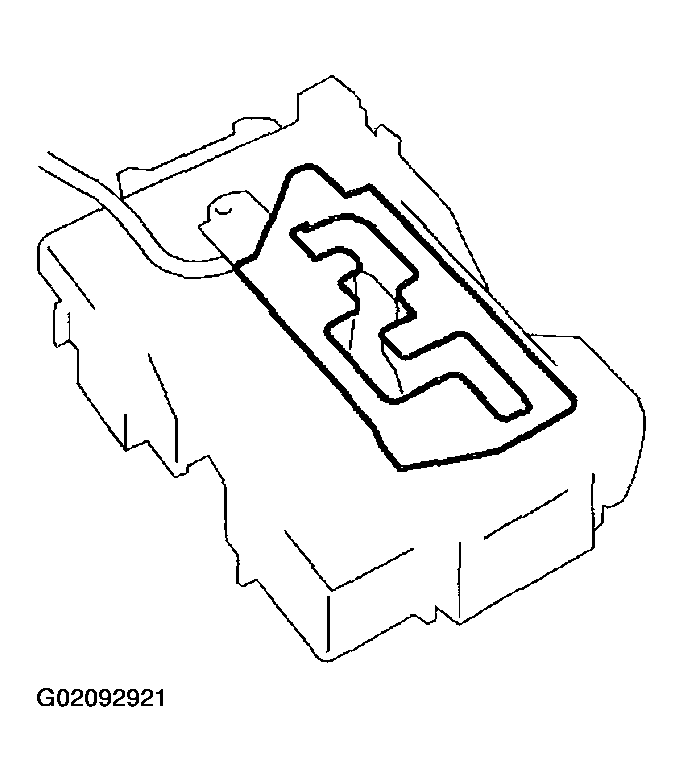

Fig 2: Removing Cover
Courtesy of SUBARU OF AMERICA, INC.
Remove the clips, and then remove the guide plate.

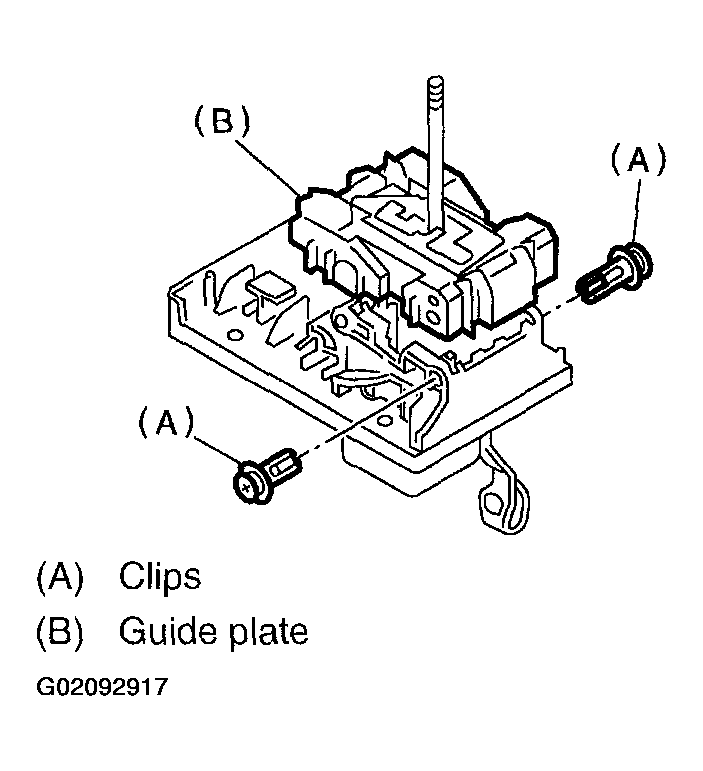

Fig 3: Removing Clips & Guide Plate
Courtesy of SUBARU OF AMERICA, INC.

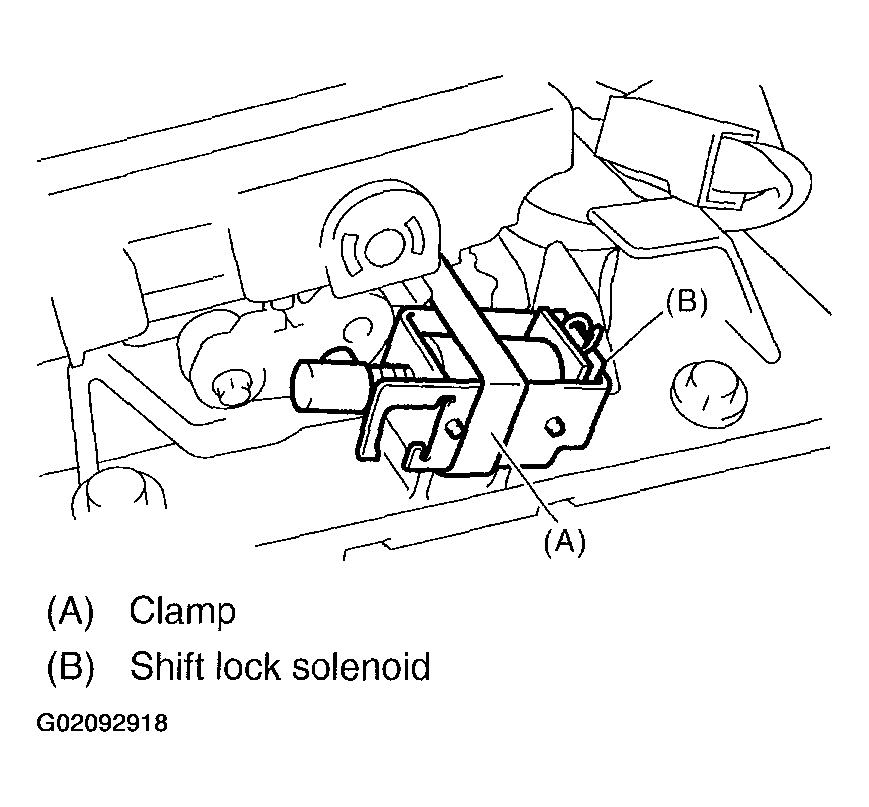

Remove the clamp and shift lock solenoid.

Fig 4: Removing Clamp & Shift Lock Solenoid
Courtesy of SUBARU OF AMERICA, INC.

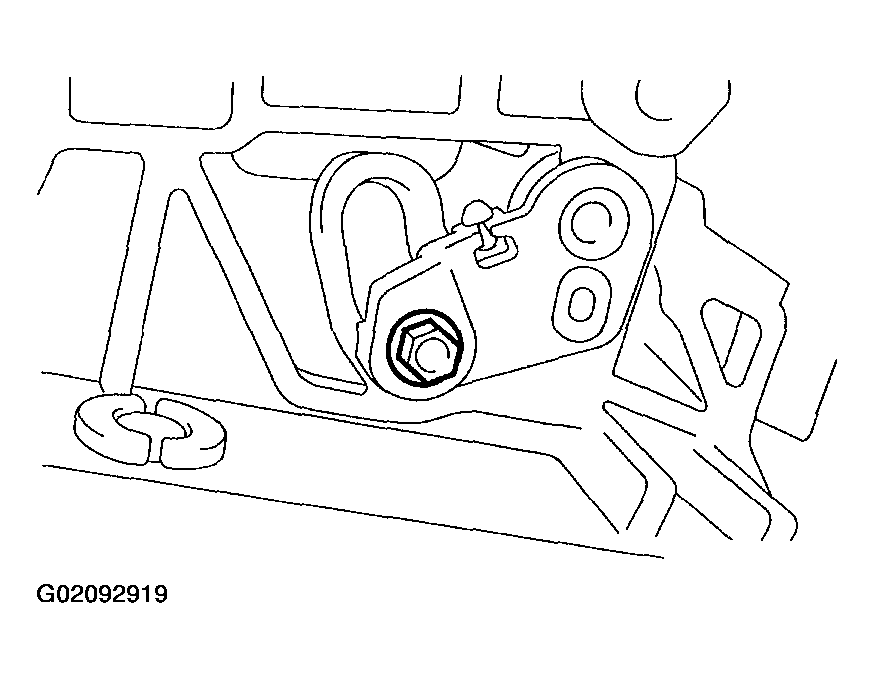

Remove the bolt.

Fig 5: Removing Bolt
Courtesy of SUBARU OF AMERICA, INC.

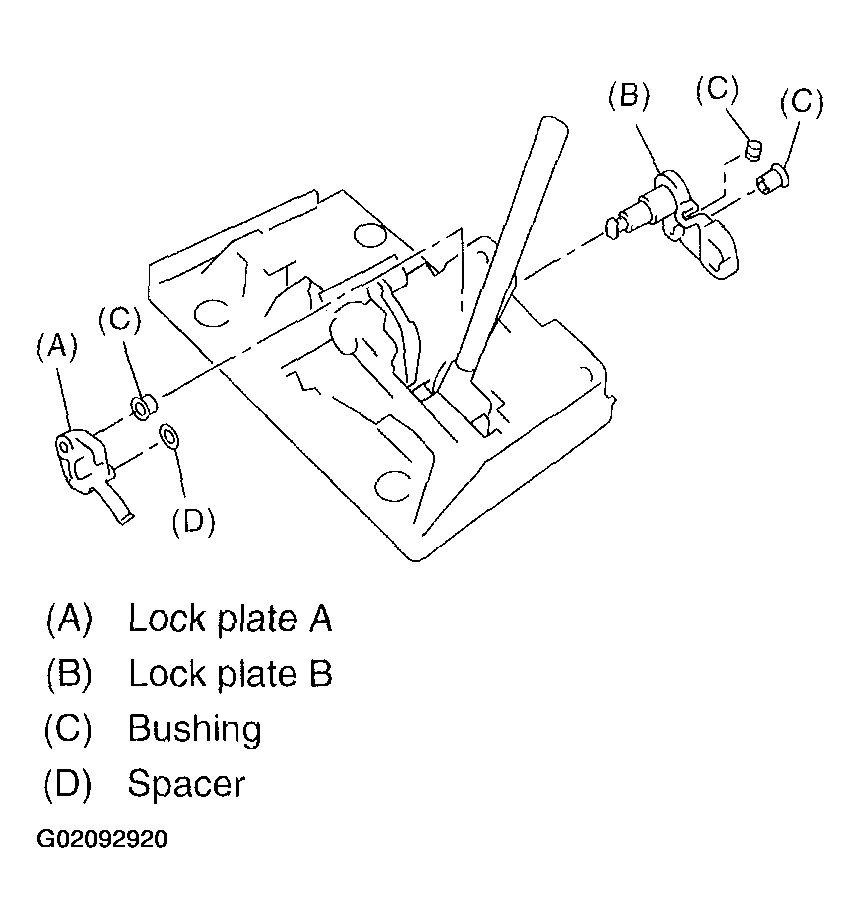

Remove the lock plate A, B, bushing and spacer.

Fig 6: Removing Lock Plate A, B, Bushing & Spacer
Courtesy of SUBARU OF AMERICA, INC.
Remove the cushion plate.

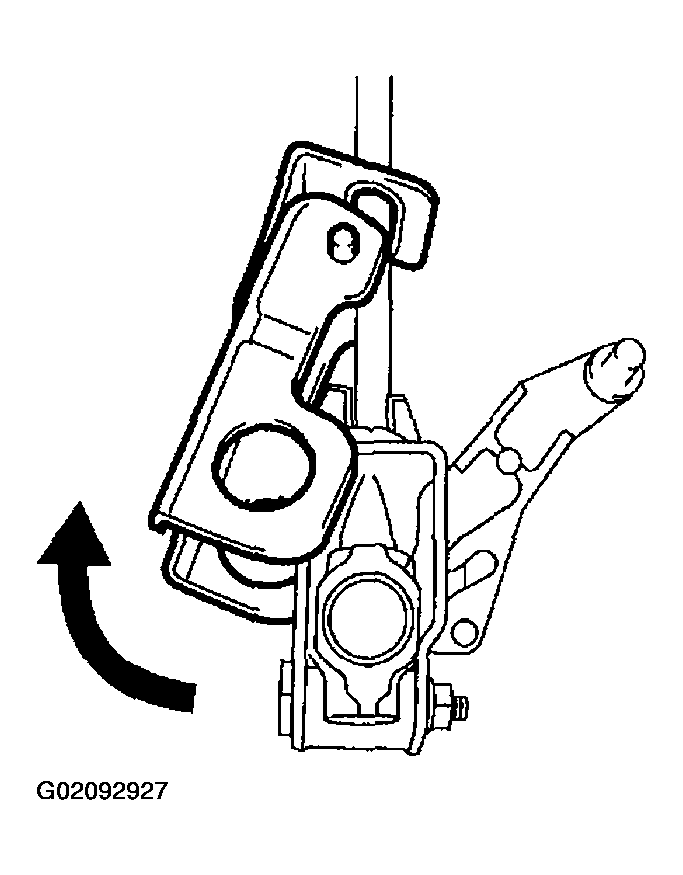

Fig 7: Removing Cushion Plate
Courtesy of SUBARU OF AMERICA, INC.
Remove the clip, and then remove the "P" position switch.

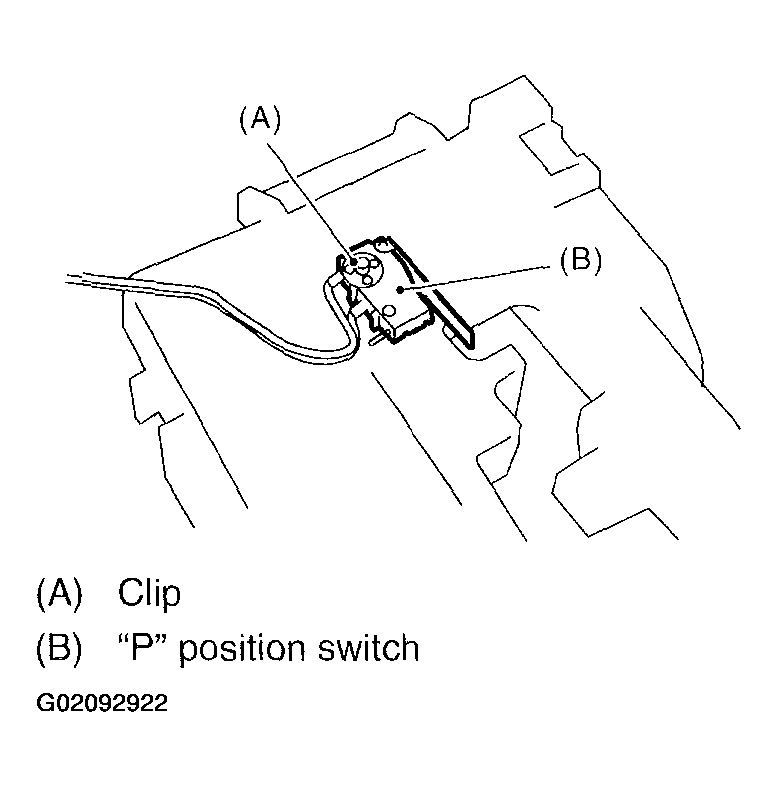

Fig 8: Removing Clip & Position Switch
Courtesy of SUBARU OF AMERICA, INC.
Remove the grommet, and then extract spring pin.

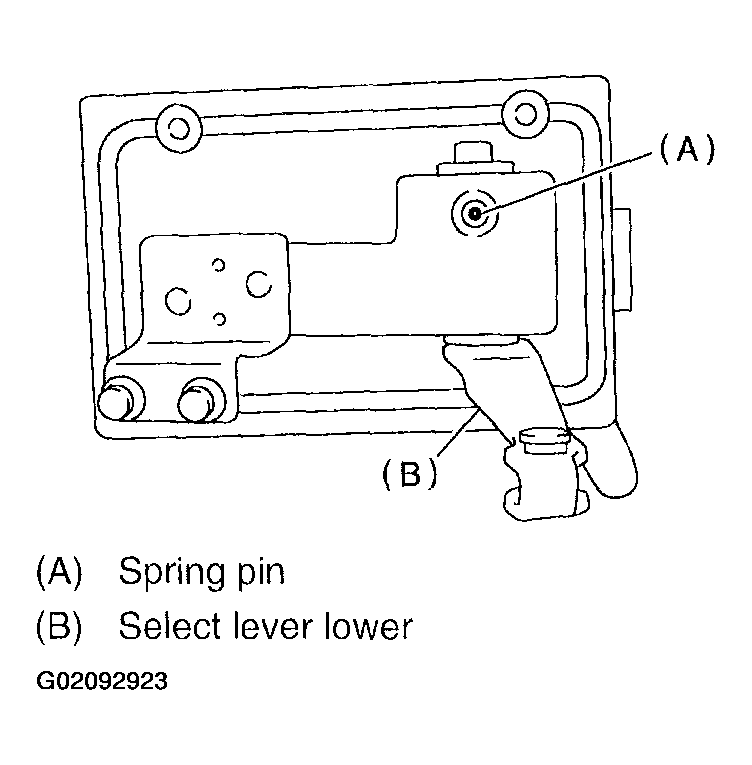

Fig 9: Removing Grommet & Extracting Spring Pin
Courtesy of SUBARU OF AMERICA, INC.

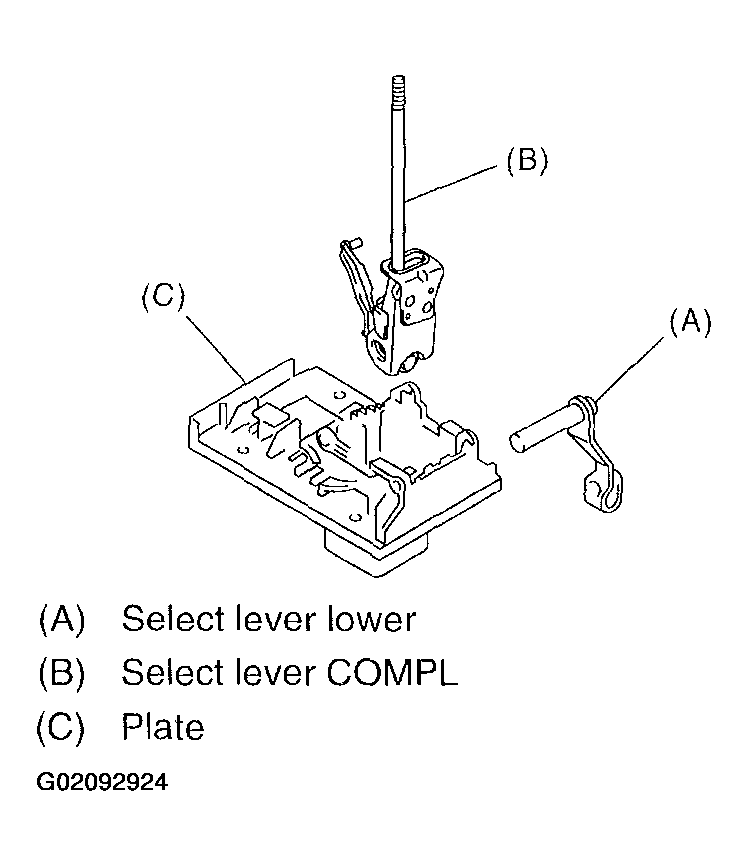

Remove the select lever lower, and then take away the select lever COMPL from plate.

Fig 10: Removing Select Lever Lower
Courtesy of SUBARU OF AMERICA, INC.

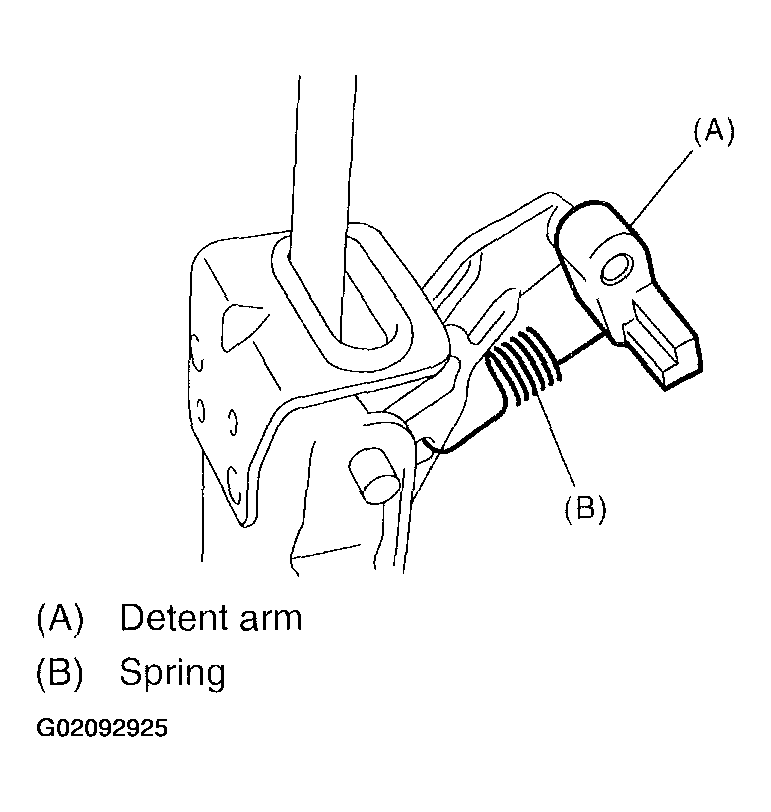

Remove the spring, and then remove the detent arm.

Fig 11: Removing Spring & Detent Arm
Courtesy of SUBARU OF AMERICA, INC.
Remove the bushing.

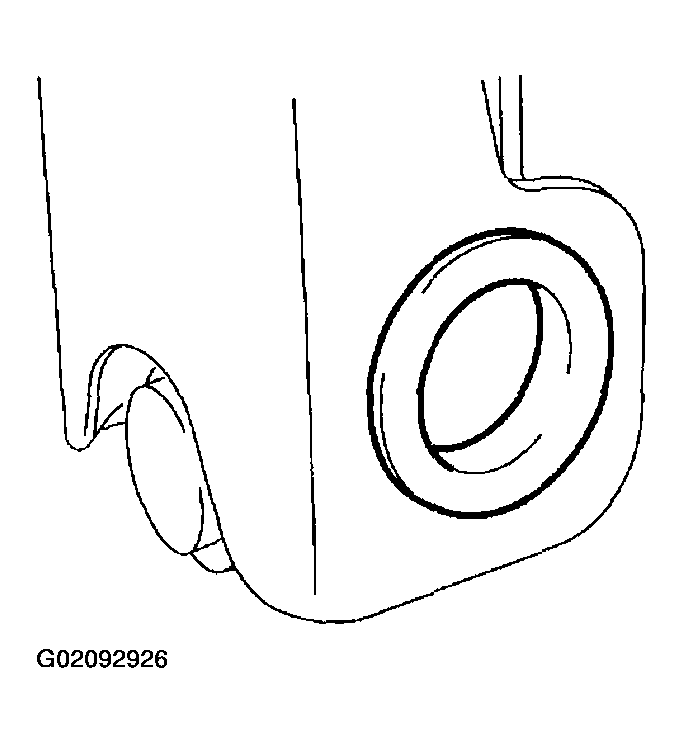

Fig 12: Removing Bushing
Courtesy of SUBARU OF AMERICA, INC.

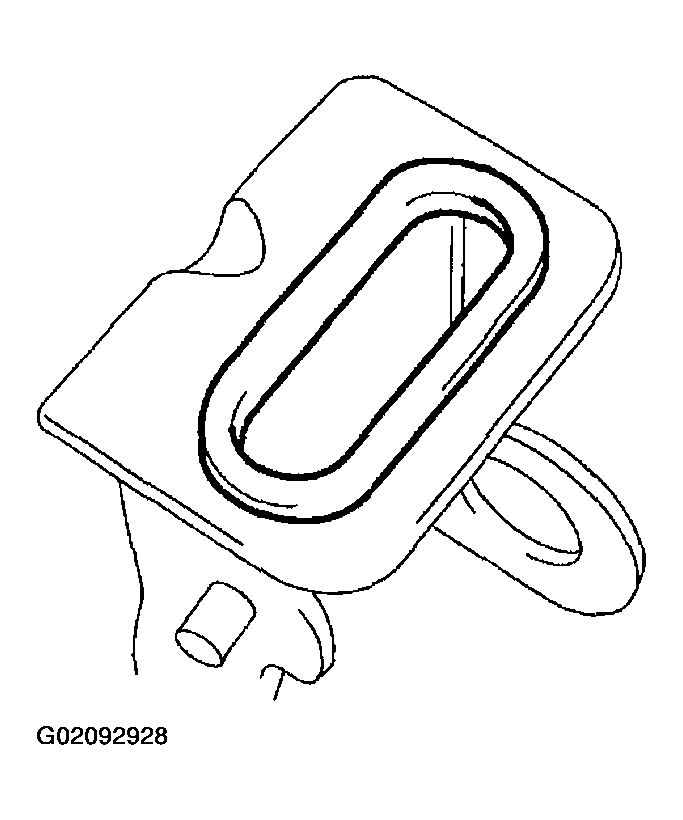

Remove the plate.

Fig 13: Removing Plate
Courtesy of SUBARU OF AMERICA, INC.
Remove the bushing.

Fig 14: Removing Bushing

Courtesy of SUBARU OF AMERICA, INC.
