Cruise Control Command Switch: Inspection

Measure the cruise control command switch resistance.

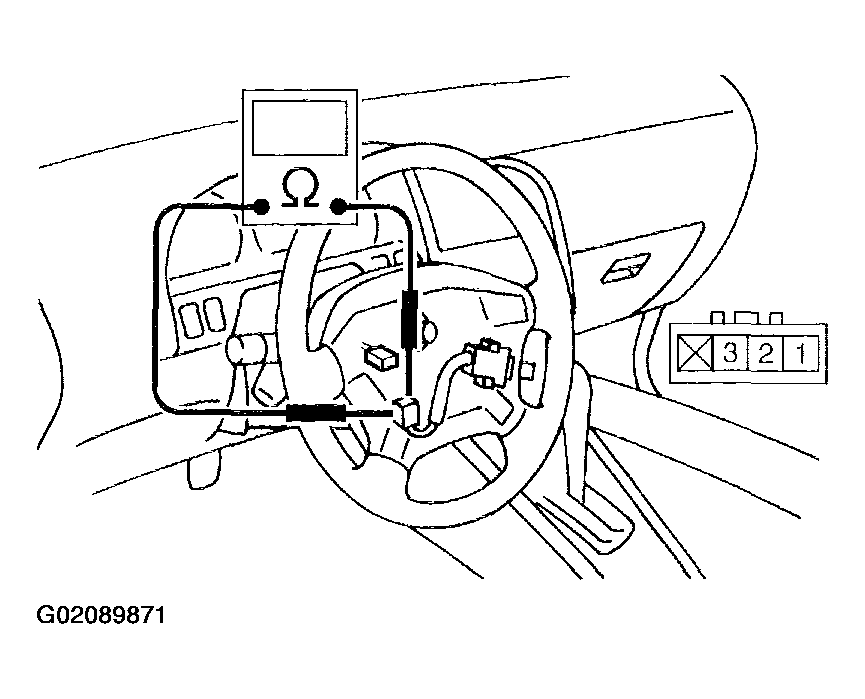

Fig 1: Measuring Cruise Control Command Switch Resistance

Courtesy of SUBARU OF AMERICA, INC.

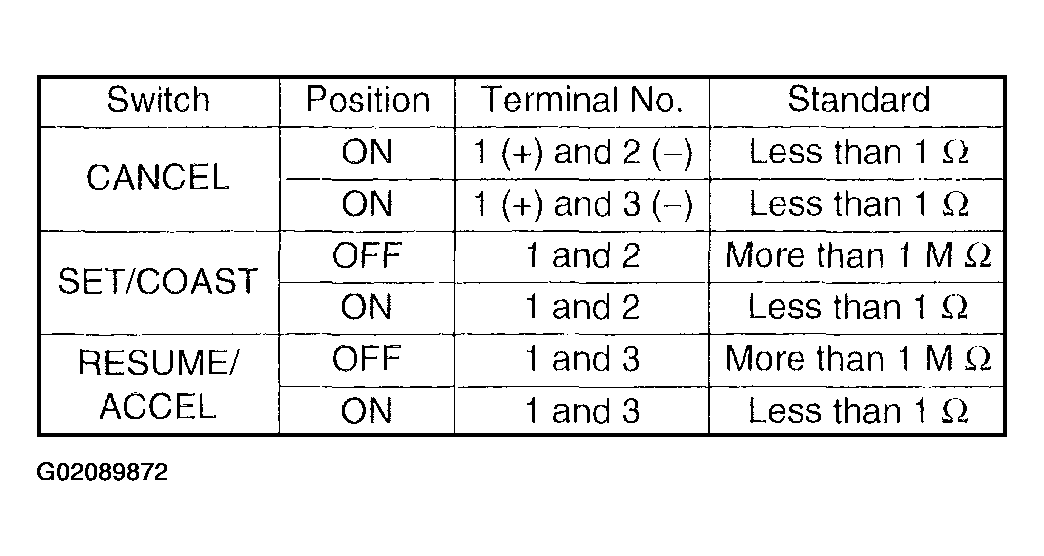

Fig 2: Cruise Control Command Switch Resistance Chart

Courtesy of SUBARU OF AMERICA, INC.

If NG, replace the cruise control command switch.
