Diagnostics Chart with Subaru Select Monitor
>>
DTC 41: Abs Control Module Malfunction
>>
Diagnostic Procedures:
April 5, 2026:
LEMON Manuals is launched!
Read the announcement.
Diagnostic Procedures:

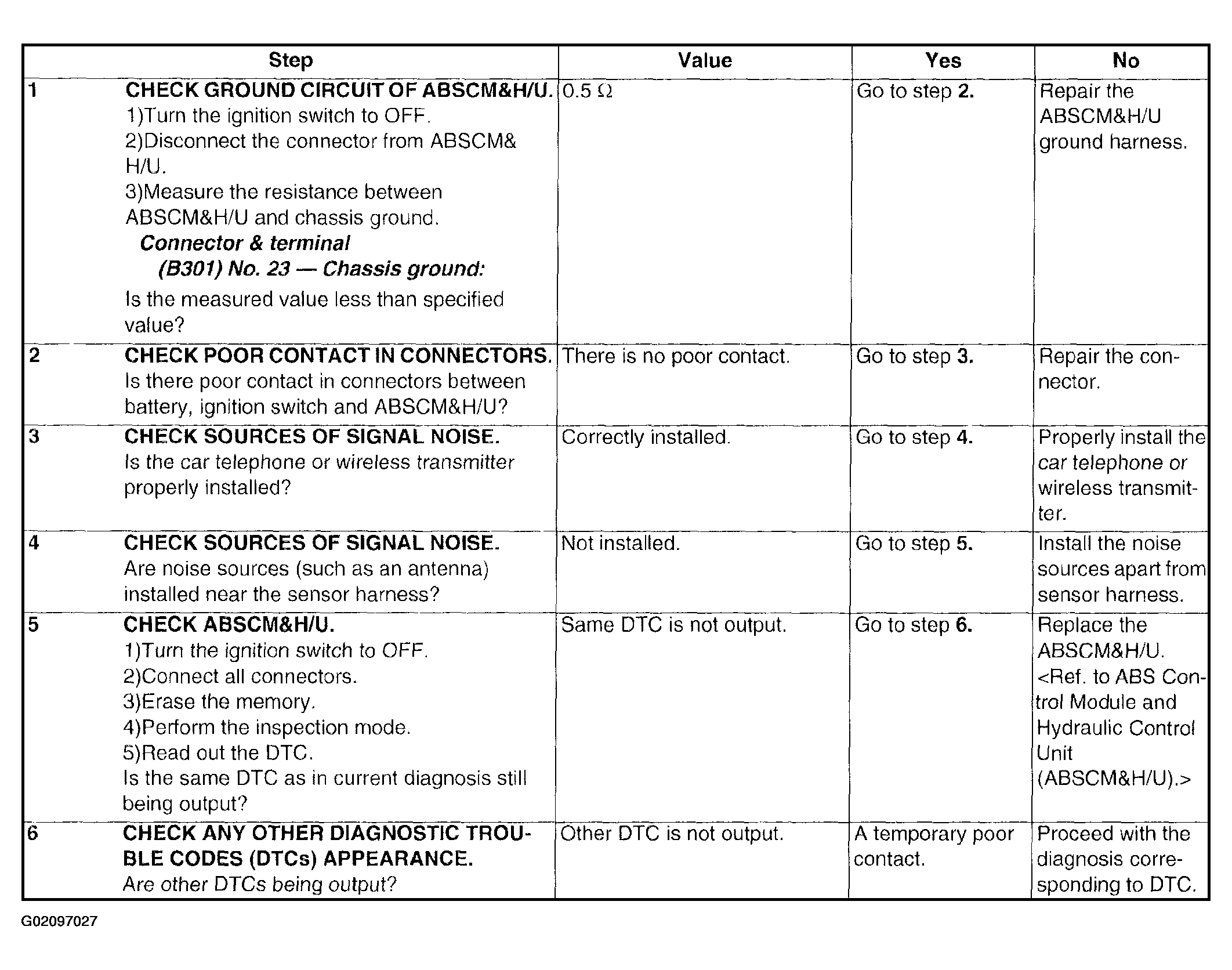

Fig 1: ABS Control Module Malfunction Diagnostic Procedure Chart
Courtesy of SUBARU OF AMERICA, INC.
Courtesy of SUBARU OF AMERICA, INC.
