Read Current Data

On the << Main Menu >> display screen, select the {Each System Check} and press << YES >> key.
On the << System Selection Menu >> display screen, select the {Brake Control System} and press << YES >> key.
Press the << YES >> key after displayed the information of ABS type.
On the << Brake Control Diagnosis >> display screen, select the {Current Data Display & Save} and press << YES >> key.
On the << Data Display Menu >> display screen, select the {Data Display} and press << YES >> key.
Using the scroll key, move the display screen up or down until desired data is shown.
- A list of the support data is shown in the following table.

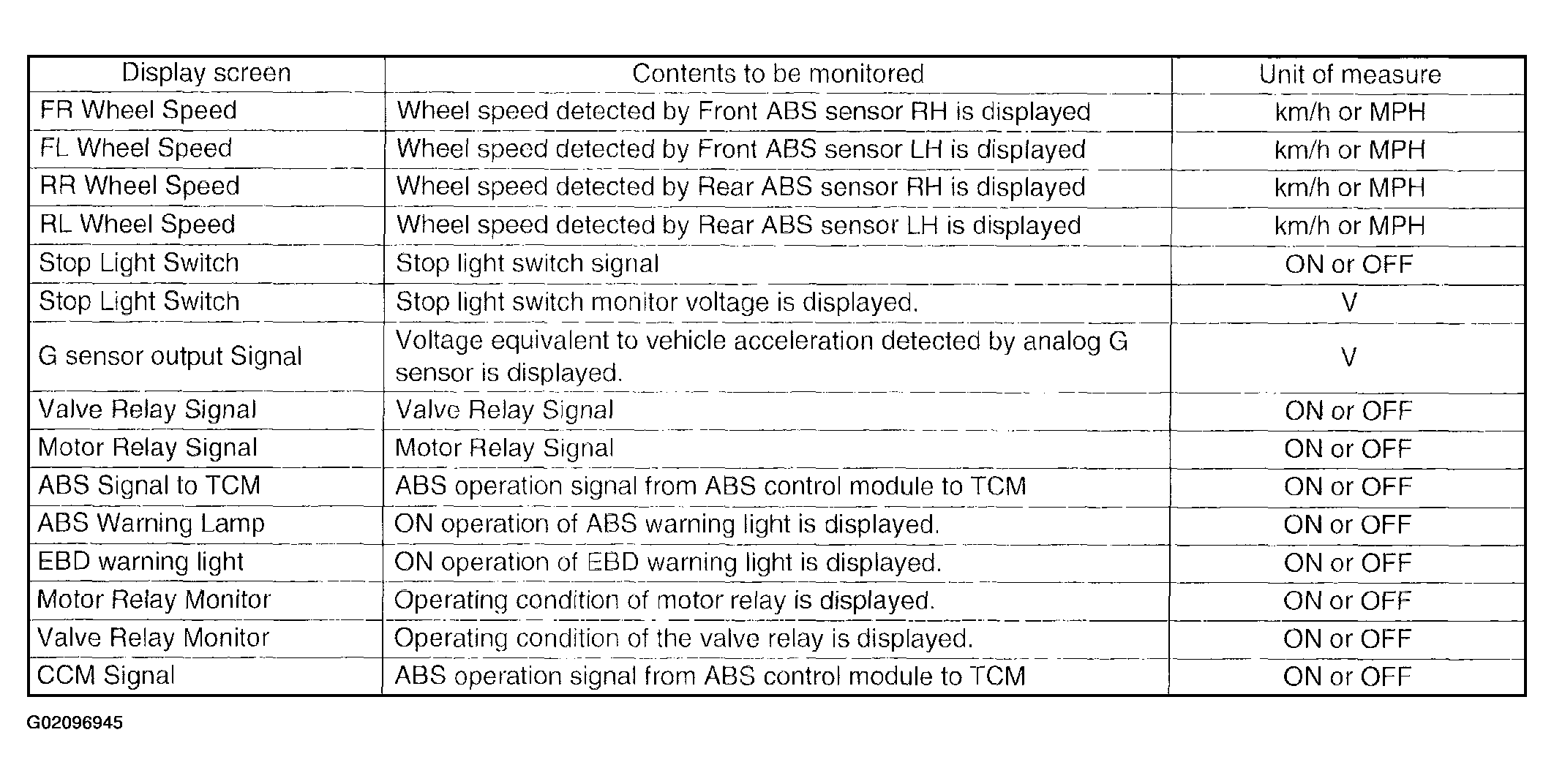

Fig 1: Read Current Data Chart

Courtesy of SUBARU OF AMERICA, INC.

NOTE: For detailed operation procedure, refer to the SUBARU SELECT MONITOR OPERATION MANUAL.
