Rear ABS Sensor: Removal
- Disconnect the ground cable from battery.
- Lift-up the vehicle.
- Remove the rear seat and disconnect the rear ABS sensor connector.
- Remove the rear sensor harness bracket from the rear trailing link and bracket.

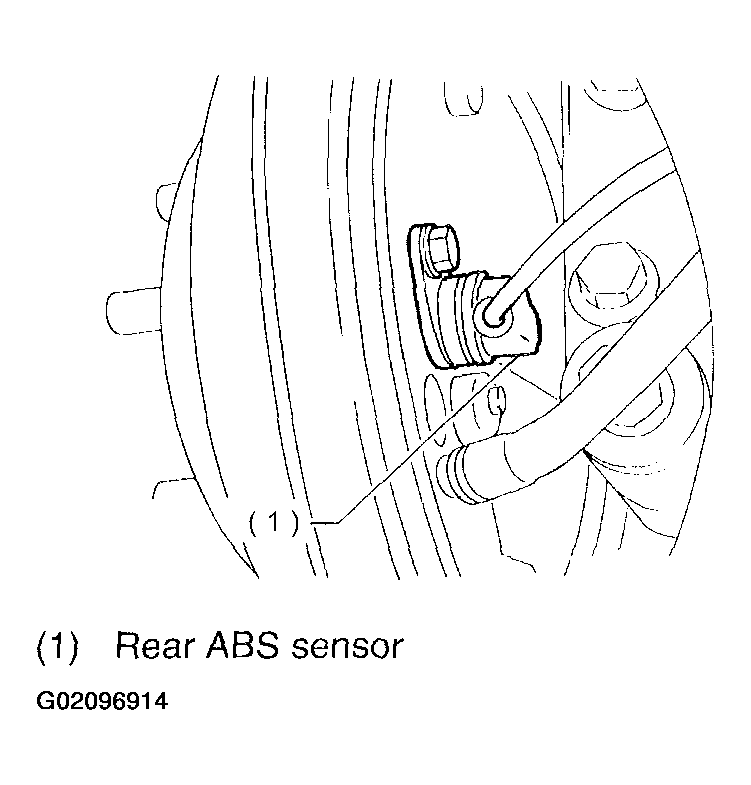

- Remove the rear ABS sensor from back plate.
CAUTION:
- Be careful not to damage the pole piece located at tip of the sensor and teeth faces during removal.
- Do not pull the sensor harness during removal.
Courtesy of SUBARU OF AMERICA, INC.
- Remove the rear tone wheel while removing the hub from housing and hub assembly. Refer to
REMOVAL
, Rear Axle.
