MT Gear Shift Lever: Disassembly

Disassemble the lock wire.

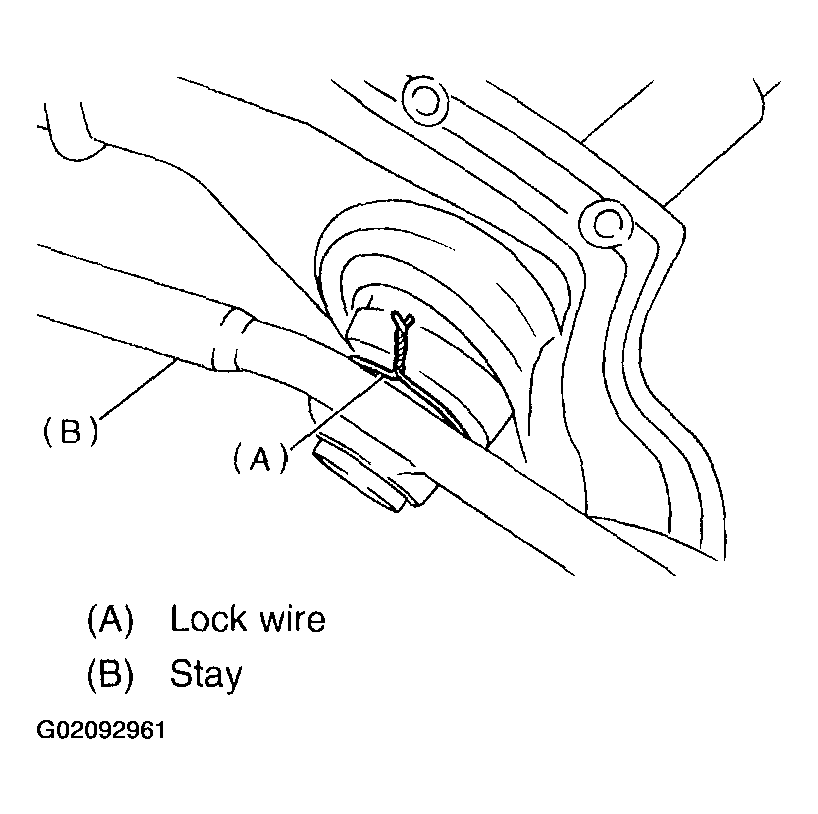

Fig 1: Disassembling Lock Wire
Courtesy of SUBARU OF AMERICA, INC.
Remove the rod from lever.

Fig 2: Removing Rod From Lever
Courtesy of SUBARU OF AMERICA, INC.
Remove the snap ring from bush B, and then disconnect the stay.

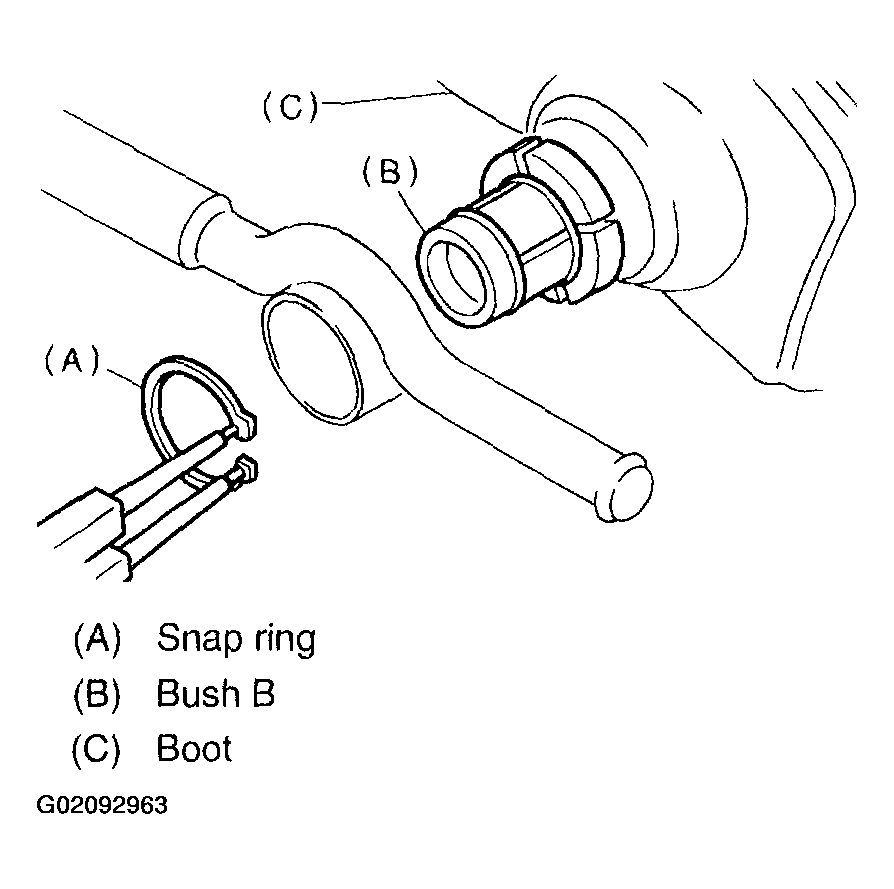

Fig 3: Removing Snap Ring From Bushing & Disconnecting Stay
Courtesy of SUBARU OF AMERICA, INC.
Remove the boot from gear shift lever.
Remove the bush and cushion rubber from stay.

Fig 4: Removing Bushing & Cushion Rubber From Stay
Courtesy of SUBARU OF AMERICA, INC.
Remove the O-ring, and then disconnect the bush B.

Fig 5: Removing O-Ring & Disconnecting Bushing
Courtesy of SUBARU OF AMERICA, INC.
Draw out the spring pin, and then remove the bush A from gear shift lever.

Fig 6: Drawing Out Spring Pin & Removing Bushing From Gear Shift Lever

Courtesy of SUBARU OF AMERICA, INC.
