ABS Control Module and Hydraulic Control Unit (ABSCM&H/U): Inspection: Notes

  1. Check the connected and fixed condition of connector.
  2. Check specifications of the mark with ABSCM&H/U.
    Fig 1: Specifications Of Mark
    G02096893Courtesy of SUBARU OF AMERICA, INC.

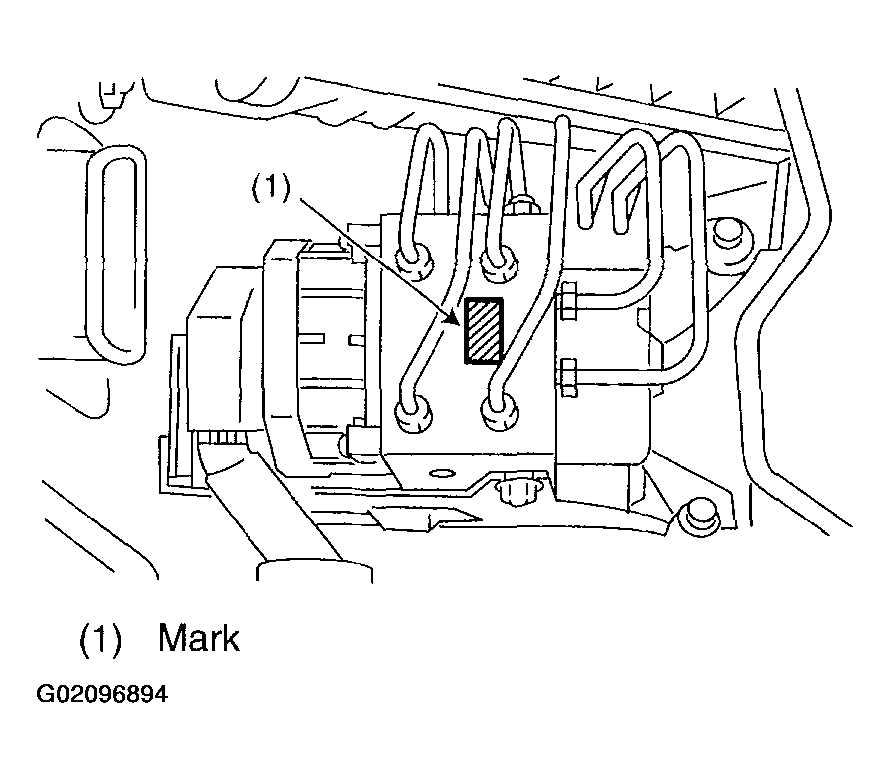

    Fig 2: Locating Mark On ABSCM&H/U Bracket
    G02096894Courtesy of SUBARU OF AMERICA, INC.
