Abs Control Module And Hydraulic Control Unit (ABSCM&H/U)

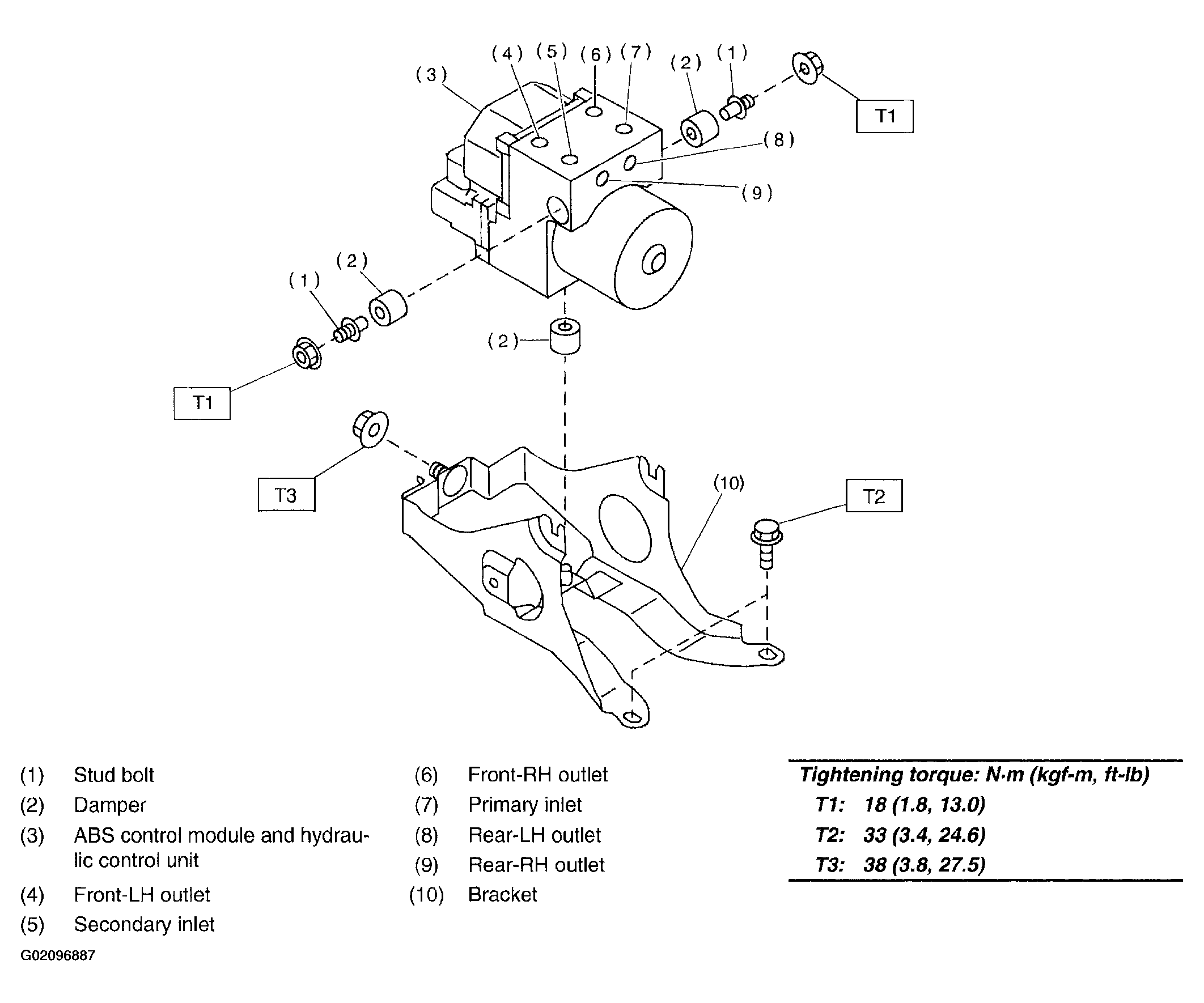

Fig 1: Identifying ABS Control Module & Hydraulic Control Unit (ABSCM&H/U) Component
G02096887Courtesy of SUBARU OF AMERICA, INC.
