Control Units

CONTROL UNITS LOCATION

Component Component Location

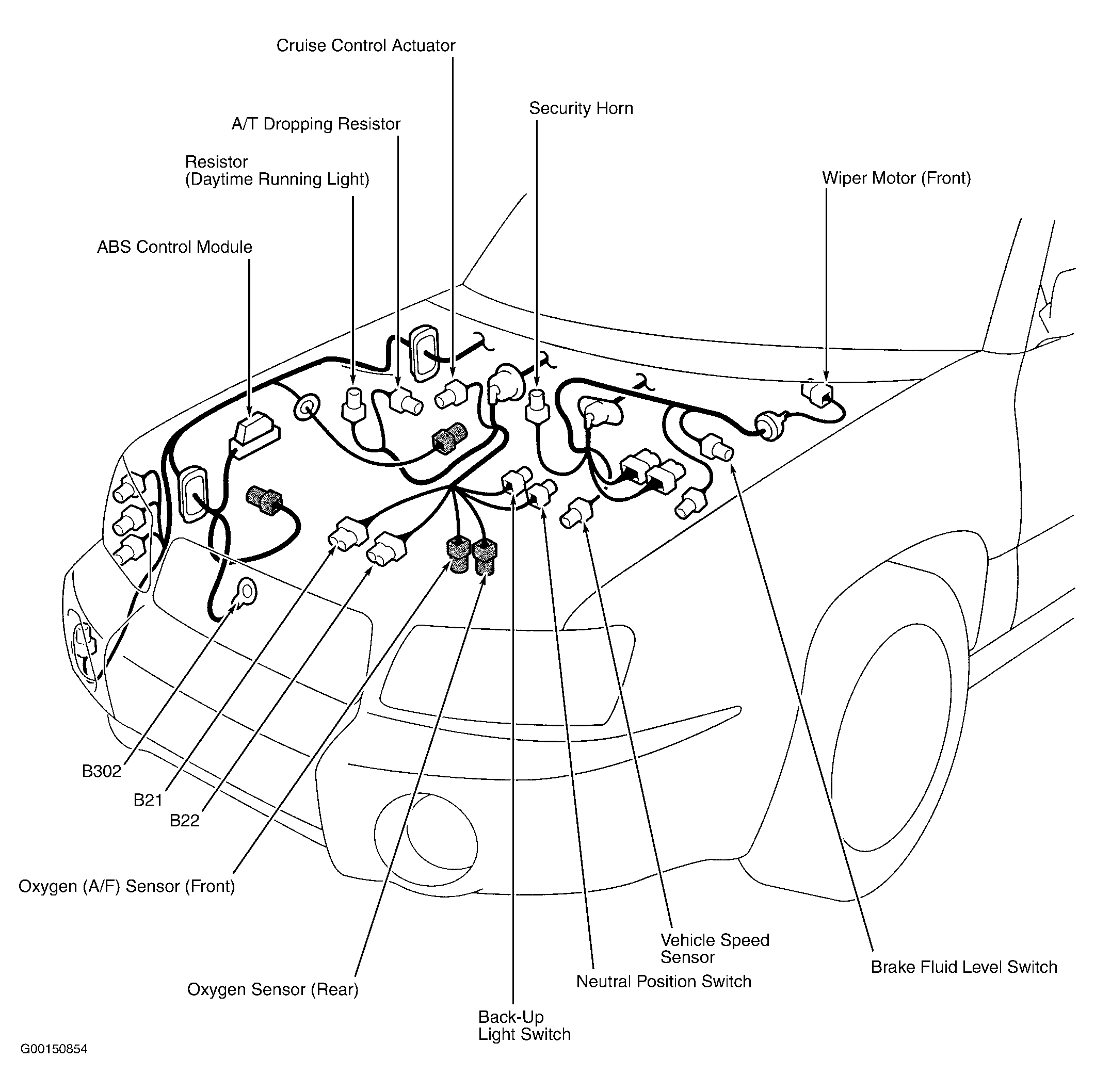

ABS Control Module On right front side of engine compartment. See Figure.
Auto A/C Control Module Behind lower center of dash.

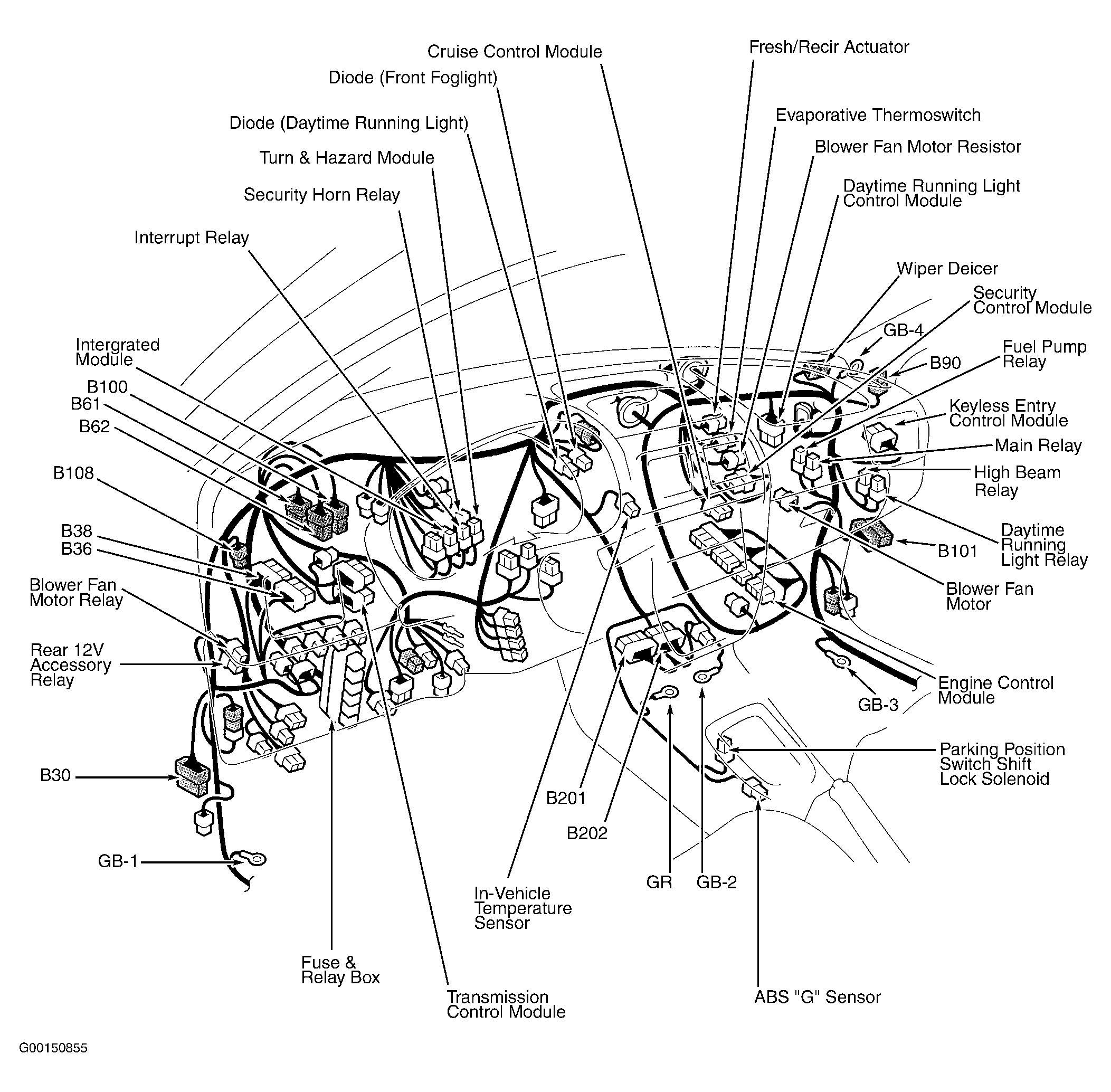

Cruise Control Module Behind right side of dash. See Figure.
Daytime Running Light Control Module Behind right side dash. See Figure.
Engine Control Module Under right side of dash. See Figure.
Integrated Module Behind left side of dash. See Figure.
Keyless Entry Control Module Behind right end of dash. See Figure.
Rear Wiper Intermittent Module At right rear corner of cargo compartment.
Security Control Module Behind right side of dash. See Figure.
Transmission Control Module Behind left side of dash. See Figure.
Turn & Hazard Module Behind left side of dash. See Figure.
