Power Assisted System (Power Steering): General Description: Specifications

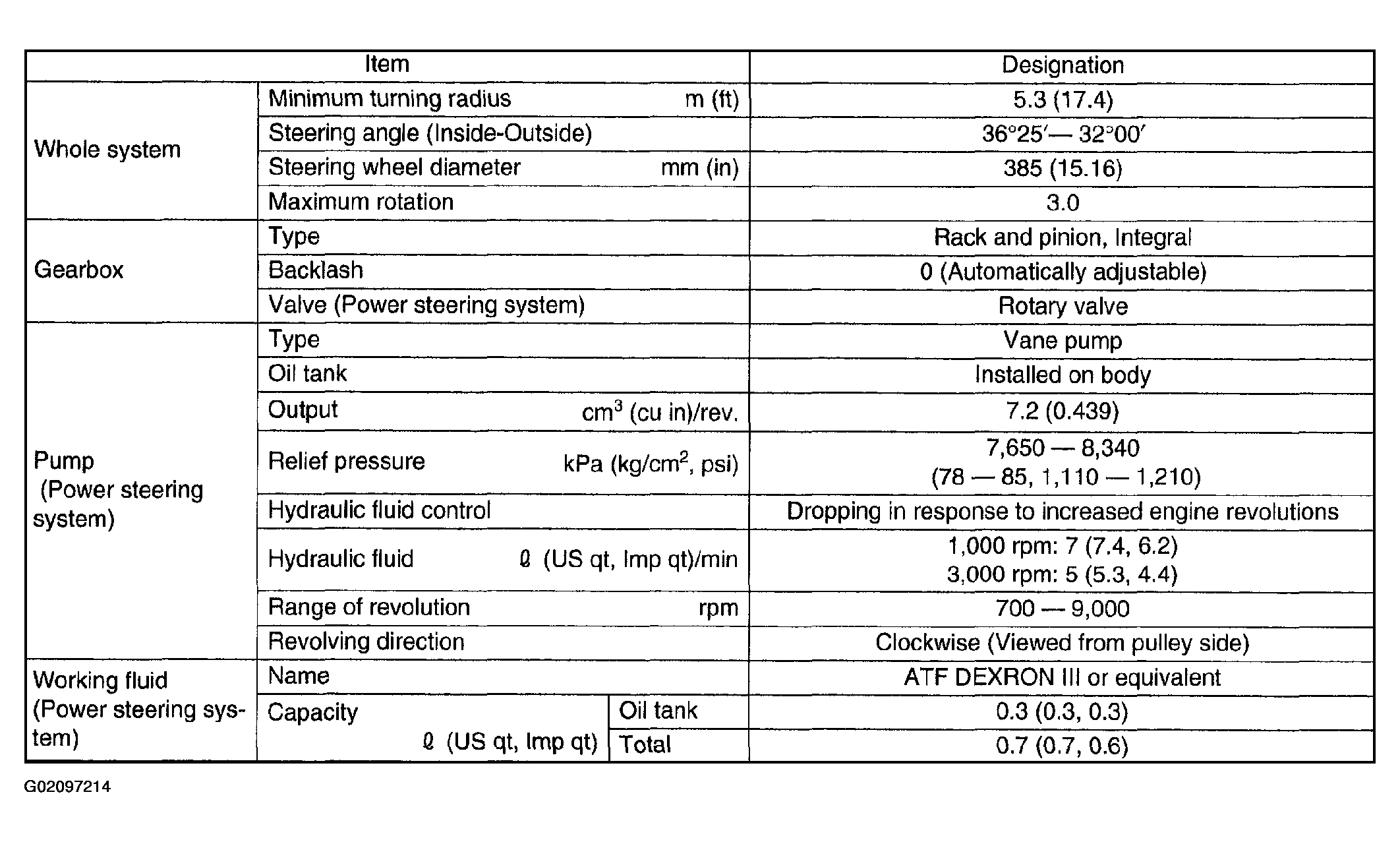

Fig 1: Power Assisted System Specifications Chart

Courtesy of SUBARU OF AMERICA, INC.

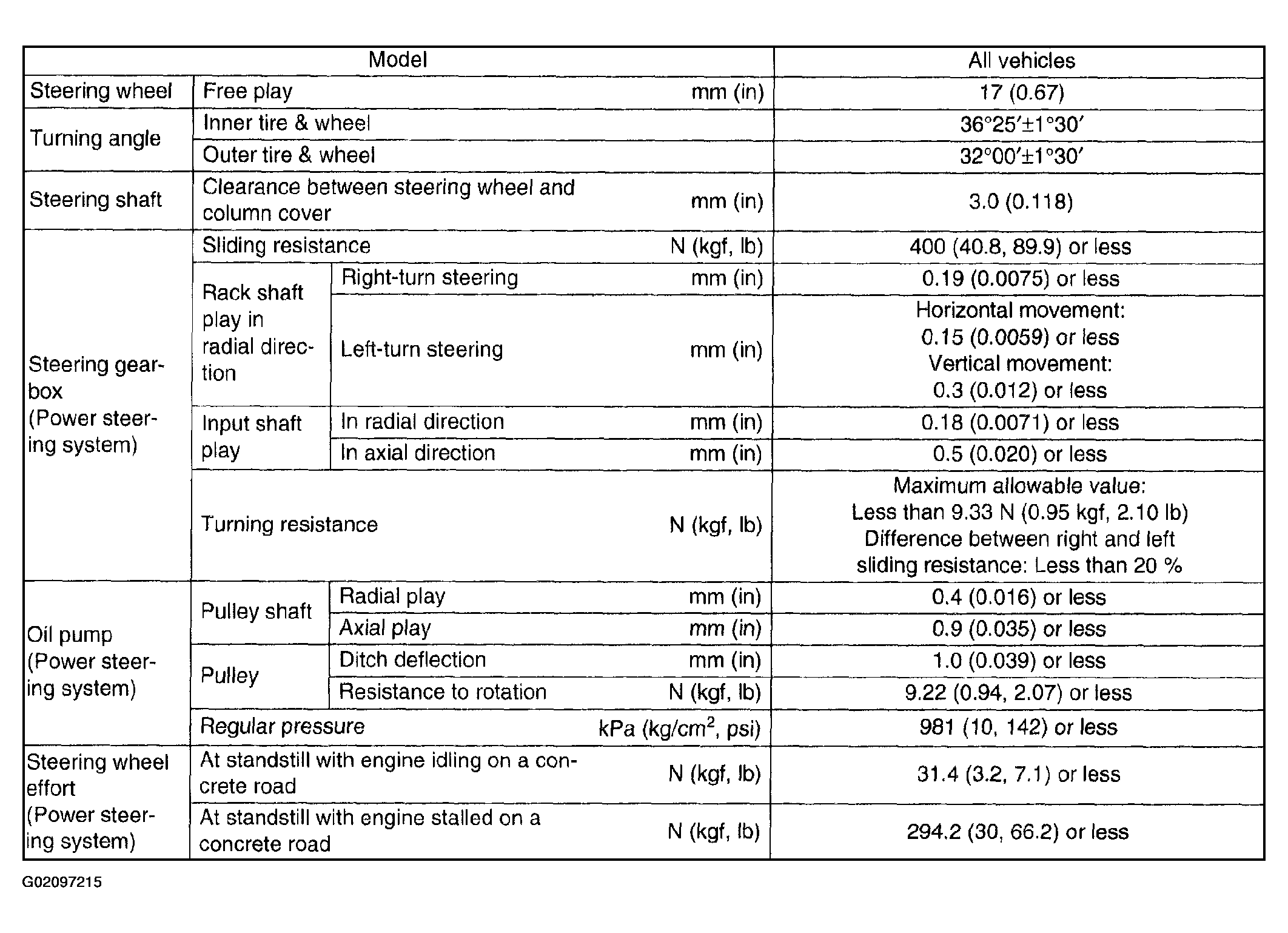

Fig 2: Power Steering System Specifications Chart

Courtesy of SUBARU OF AMERICA, INC.

Fig 3: Power Steering Fluid Specifications Chart

Courtesy of SUBARU OF AMERICA, INC.

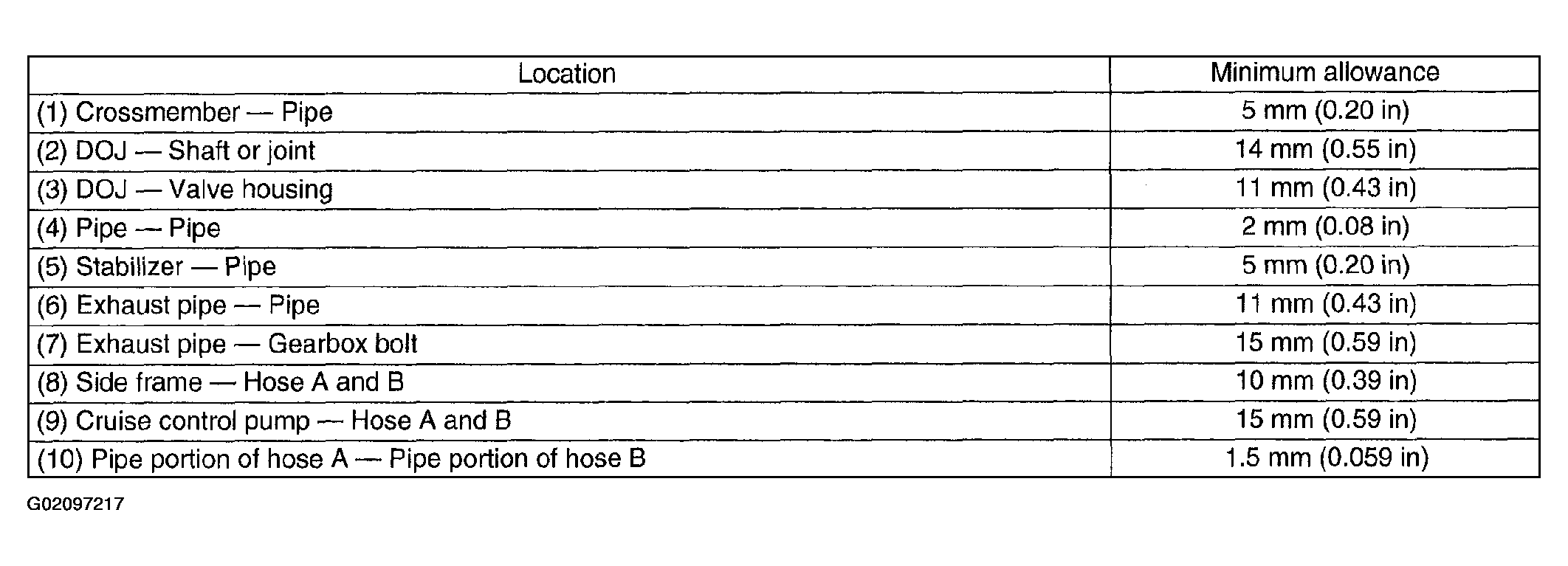

CAUTION: This table lists various clearances that must be correctly adjusted to ensure the normal vehicle driving without interfering noise, or any other faults.

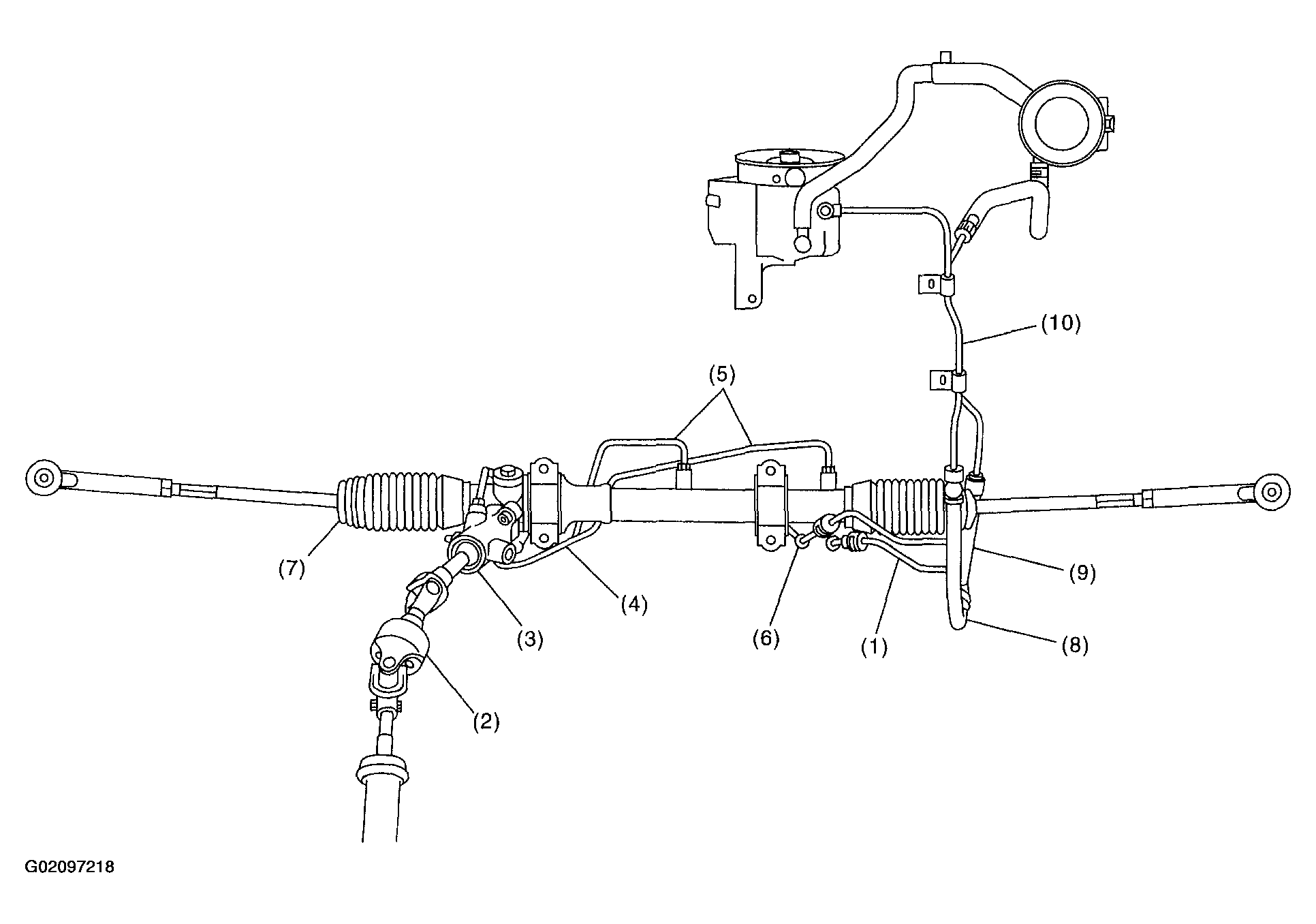

Fig 4: Locating Power Steering Parts (1 Of 2)

Courtesy of SUBARU OF AMERICA, INC.

Fig 5: Locating Power Steering Parts (2 Of 2)

Courtesy of SUBARU OF AMERICA, INC.
