Automatic Transmission - Mechanism & Function
>>
Schematic Drawing
>>
1ST Speed Of 1 Range
April 5, 2026:
LEMON Manuals is launched!
Read the announcement.
1ST Speed Of 1 Range

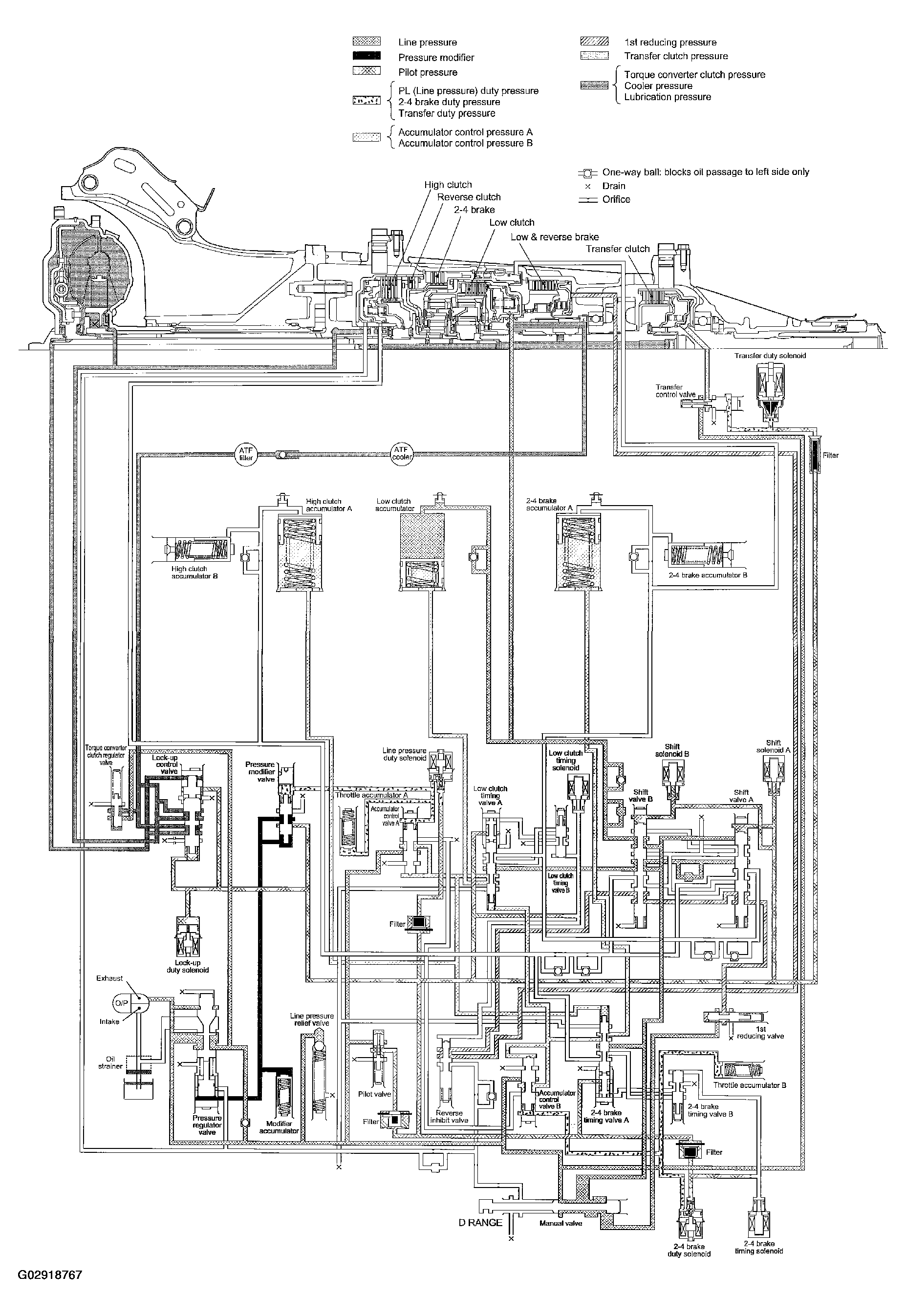

Fig 1: Hydraulic Schematic Diagram - 1st Speed Of 1 Range
Courtesy of SUBARU OF AMERICA, INC.
Courtesy of SUBARU OF AMERICA, INC.
