Transmission Control Device: Installation

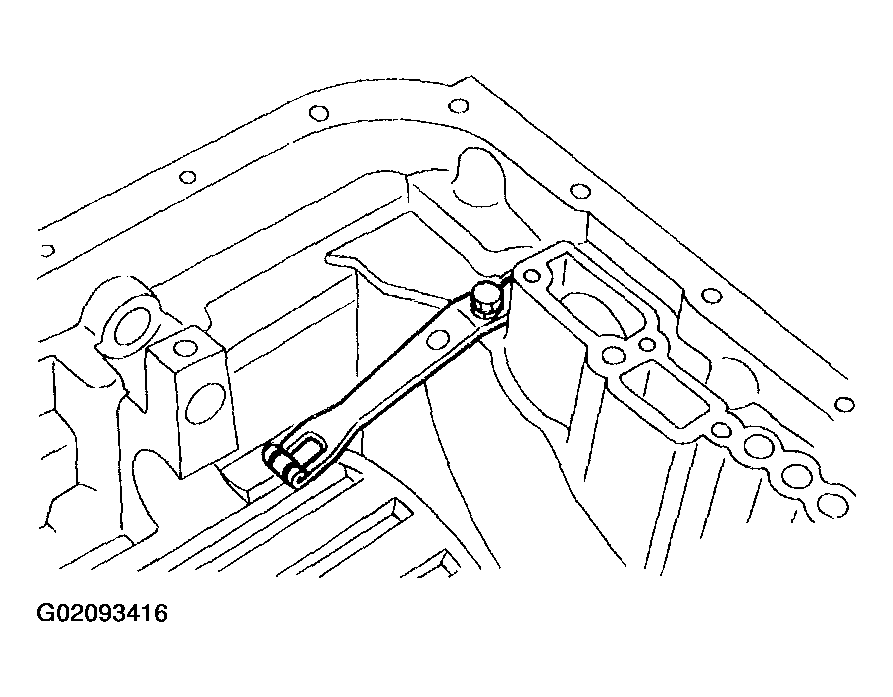

- Install detention spring to transmission case.
- Tightening torque:
6 N.m (0.6 kgf-m, 4.3 ft-lb)
Courtesy of SUBARU OF AMERICA, INC.

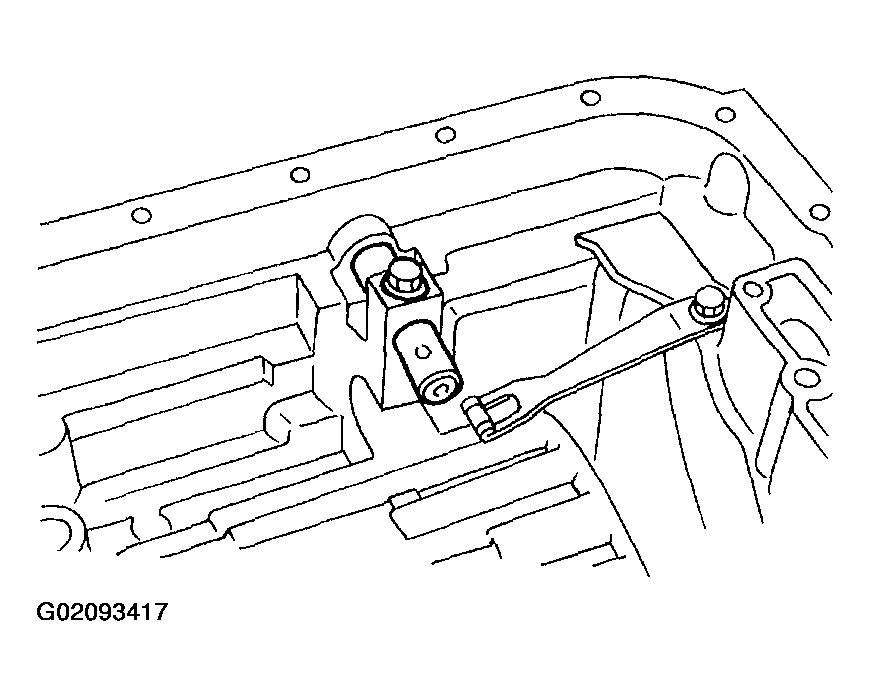

- Insert range select lever, and tighten bolt.
- Tightening torque:
6 N.m (0.6 kgf-m, 4.3 ft-lb)
Courtesy of SUBARU OF AMERICA, INC.

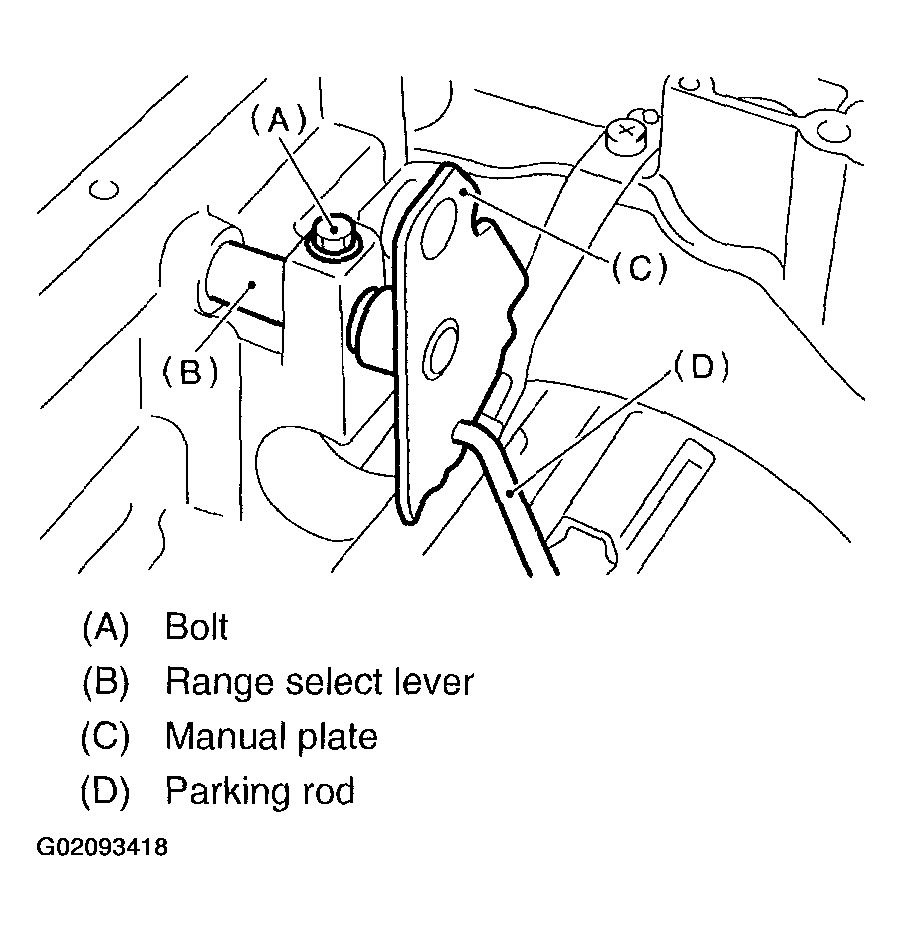

- Insert manual plate and parking rod.
Courtesy of SUBARU OF AMERICA, INC.

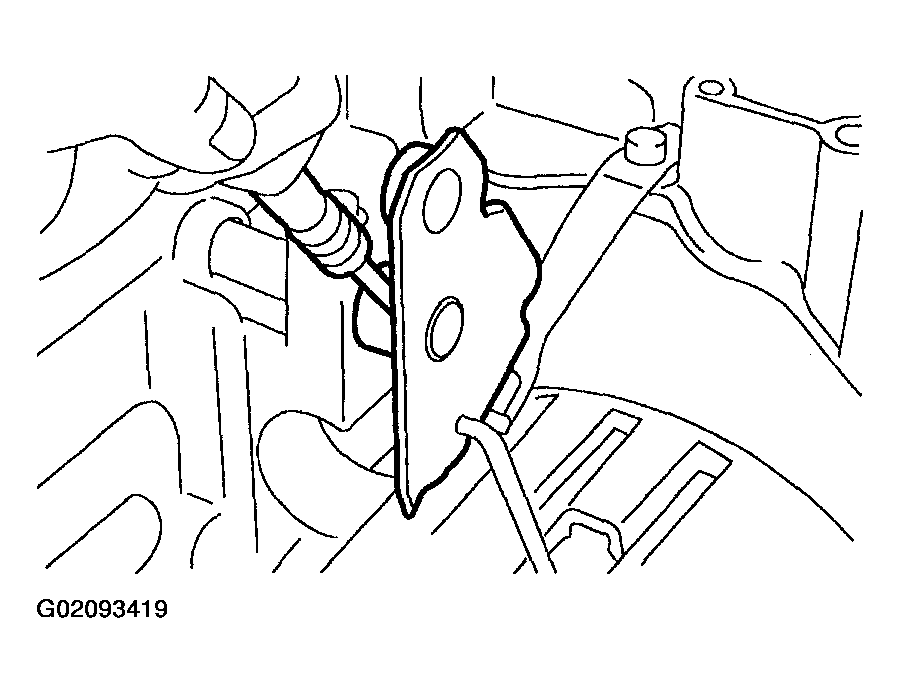

- Insert spring pin to manual plate.
Courtesy of SUBARU OF AMERICA, INC.
- Install control valve assembly and oil pan. Refer to
INSTALLATION , Control Valve Body.
- Turn over the transmission case to its original position.
- Install pitching stopper bracket.
- Tightening torque:
41 N.m (4.2 kgf-m, 30.4 ft-lb)
- Install inhibitor switch and adjust the inhibitor switch. Refer to
INHIBITOR SWITCH .

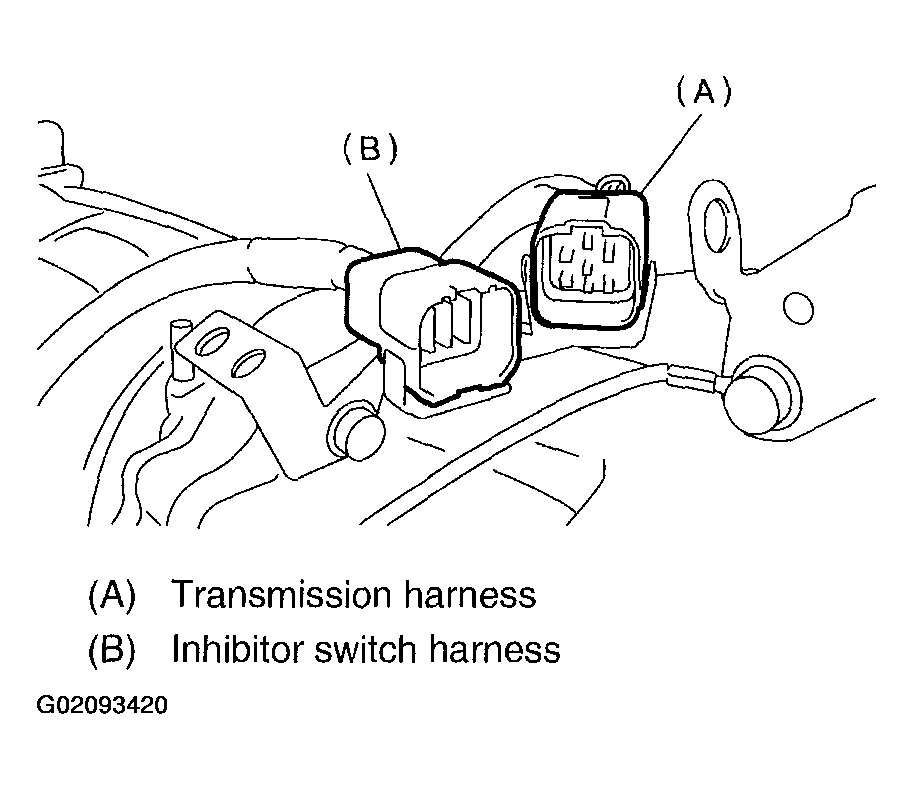

- Insert inhibitor switch and transmission connector into stay.
Courtesy of SUBARU OF AMERICA, INC.
- Install air breather hose. Refer to
INSTALLATION , Air Breather Hose.

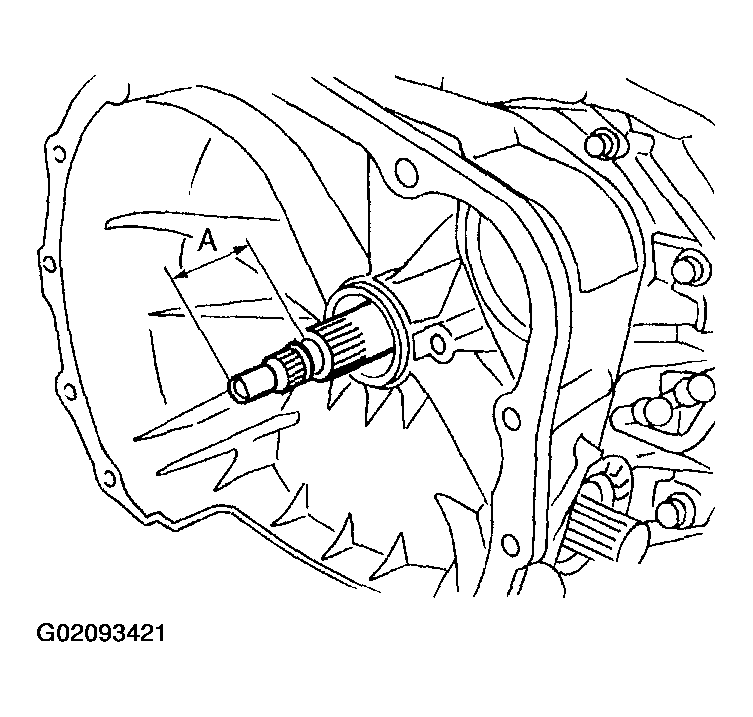

- Insert the input shaft while turning lightly by hand. At this time, not to damage the bushing.
- Normal protrusion A:
50 - 55 mm (1.97 - 2.17 in)
Courtesy of SUBARU OF AMERICA, INC.
- Install the torque converter clutch assembly. Refer to
INSTALLATION , Torque Converter Clutch Assembly.
- Install the transmission assembly to the vehicle. Refer to
INSTALLATION , Automatic Transmission Assembly.
