General Diagnostic: Inspection

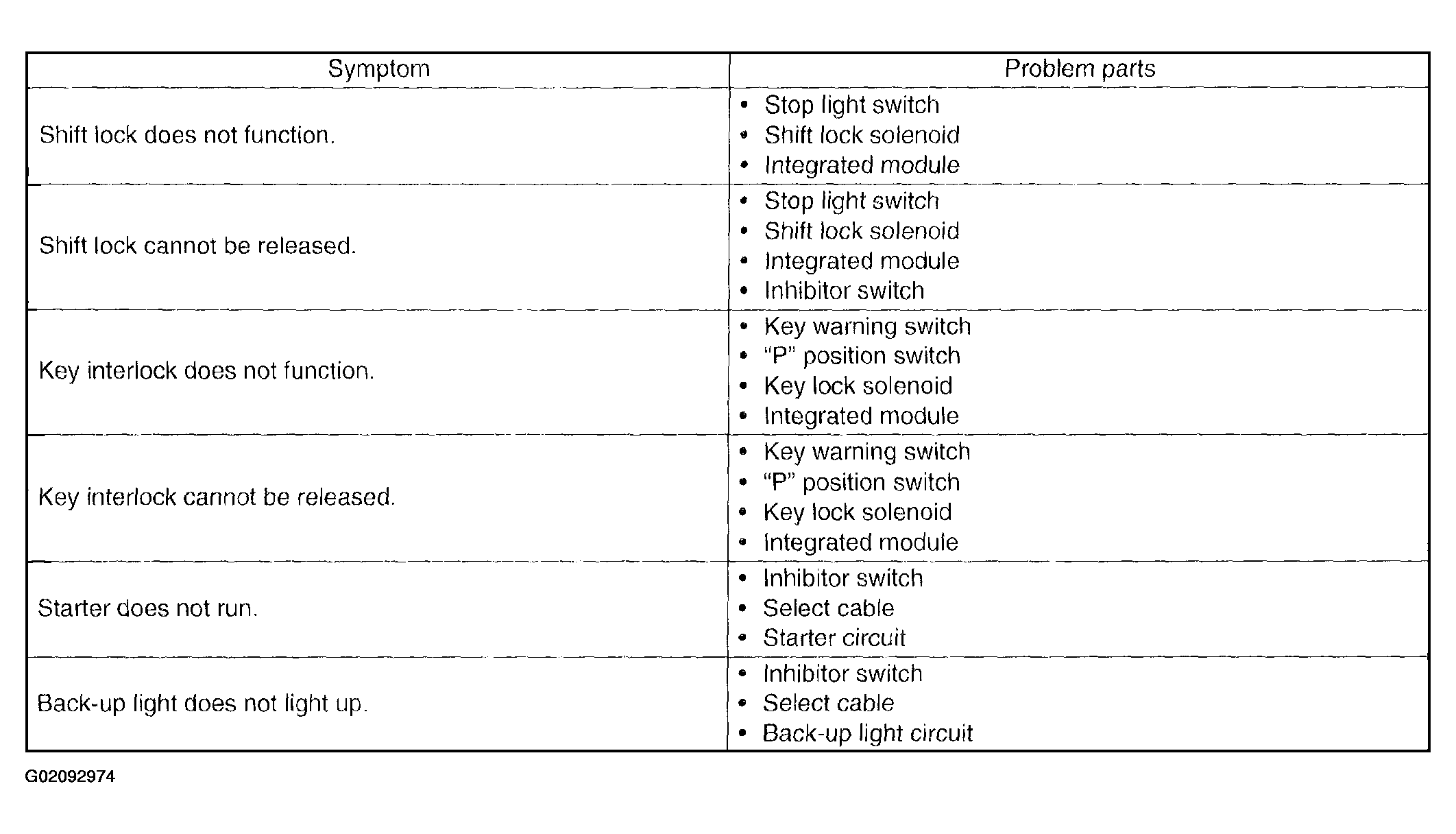

Fig 1: General Diagnostic Inspection Table
Courtesy of SUBARU OF AMERICA, INC.
Courtesy of SUBARU OF AMERICA, INC.
