Select Lever: Removal

  1. Set the vehicle on a lift.
  2. Disconnect the ground cable from battery.
  3. Move the select lever to "N" position.
  4. Lift-up the vehicle.
  5. Remove the rear exhaust pipe and muffler.

    Refer to REMOVAL , Rear Exhaust Pipe and REMOVAL , Muffler.

  6. Remove the heat shield cover. (If equipped)
  7. Disconnect the cable from select lever, and then remove the cable bracket.

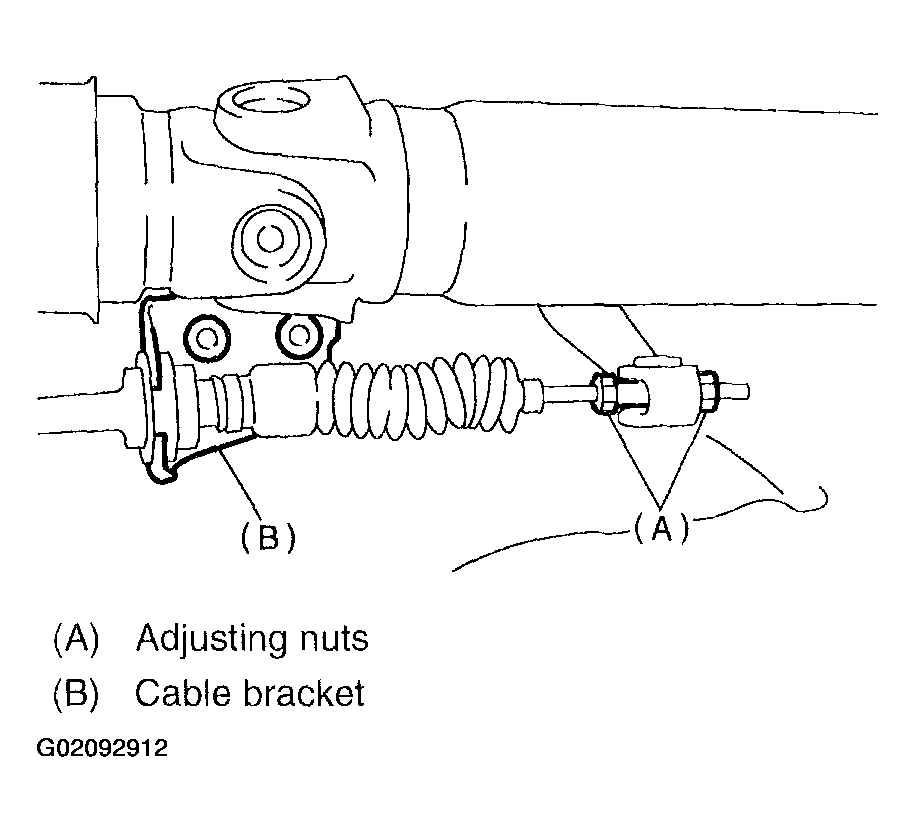

    Fig 1: Identifying Adjusting Nuts & Cable Bracket
    G02092912Courtesy of SUBARU OF AMERICA, INC.
  8. Lower the vehicle.
  9. Remove the console box. Refer to REMOVAL , Console Box.
  10. Disconnect the connectors, then remove the four bolts to take out the select lever assembly from body.

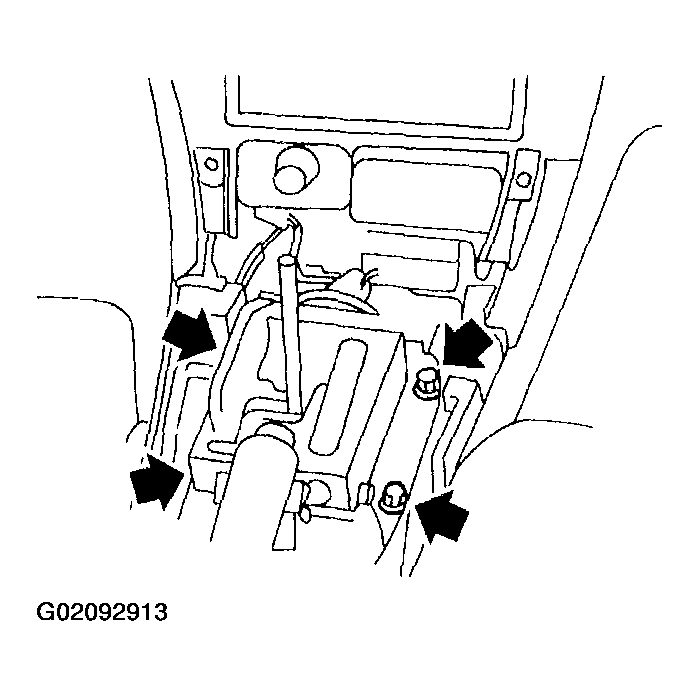

    Fig 2: Disconnecting Select Lever Connectors
    G02092913Courtesy of SUBARU OF AMERICA, INC.
