Engine Control Module

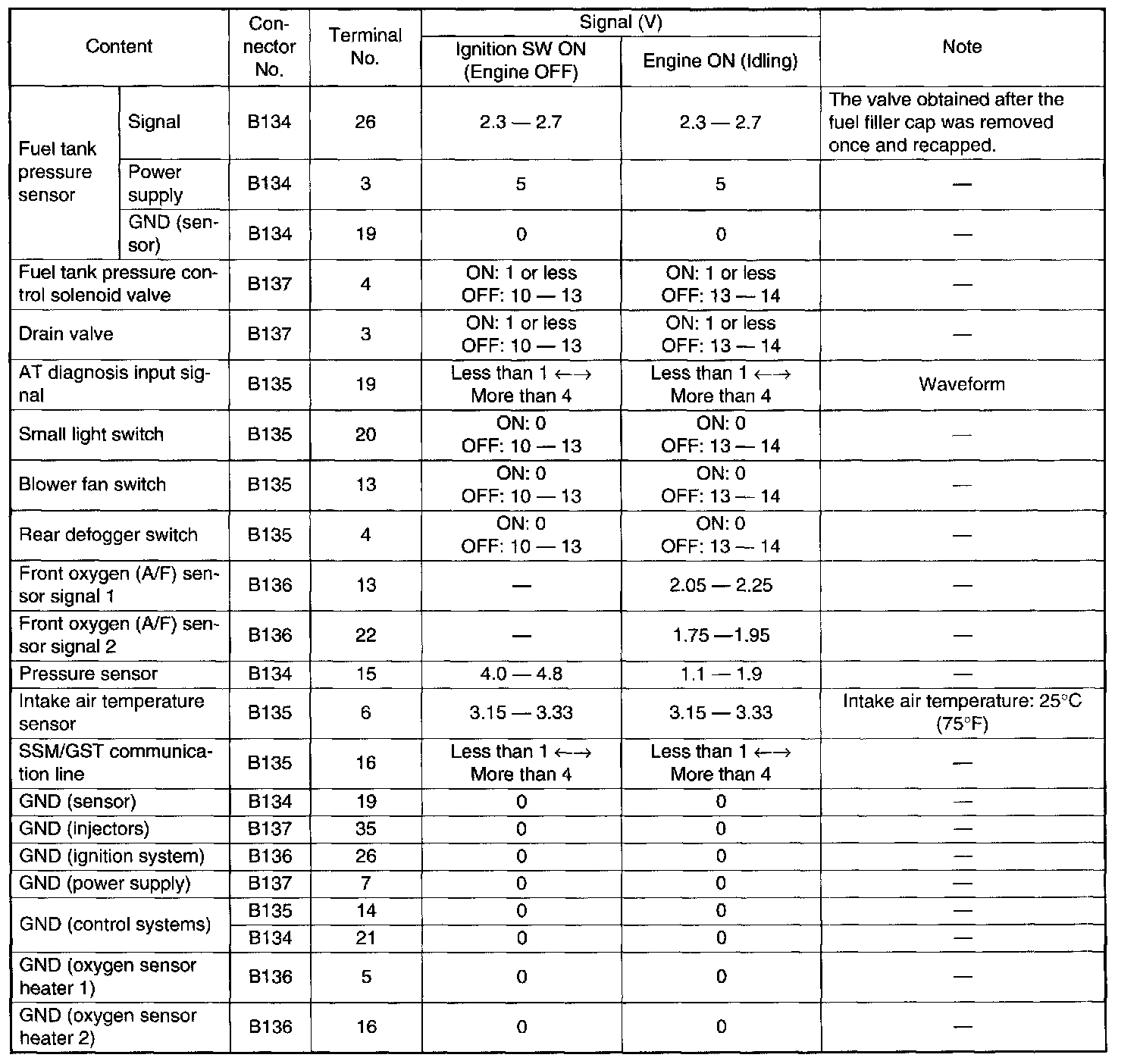

Engine Control Module (ECM) I/O Signals Part 1:

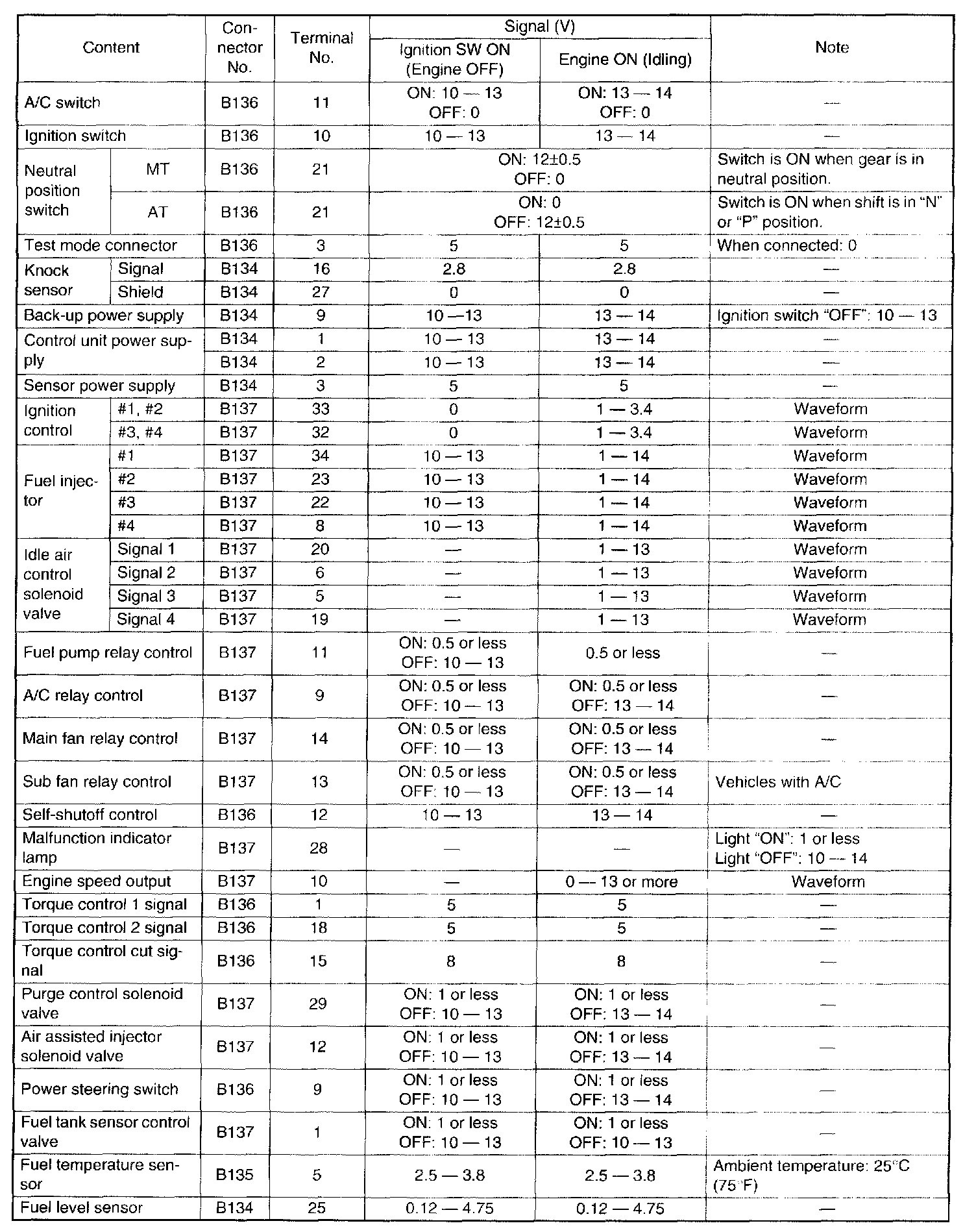

Engine Control Module (ECM) I/O Signals Part 2:

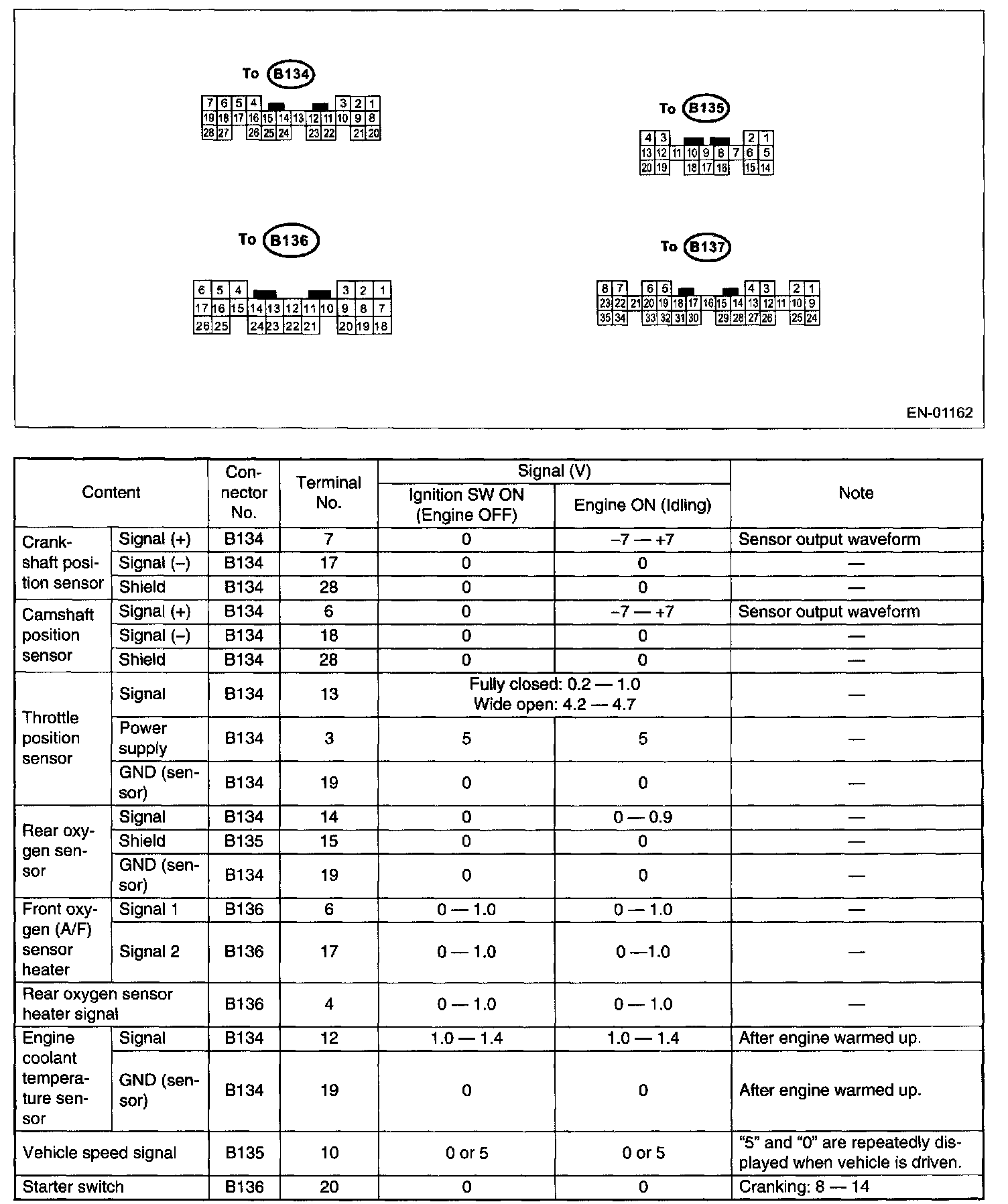

Engine Control Module (ECM) I/O Signals Part 3:
