System Diagram

COMPONENT

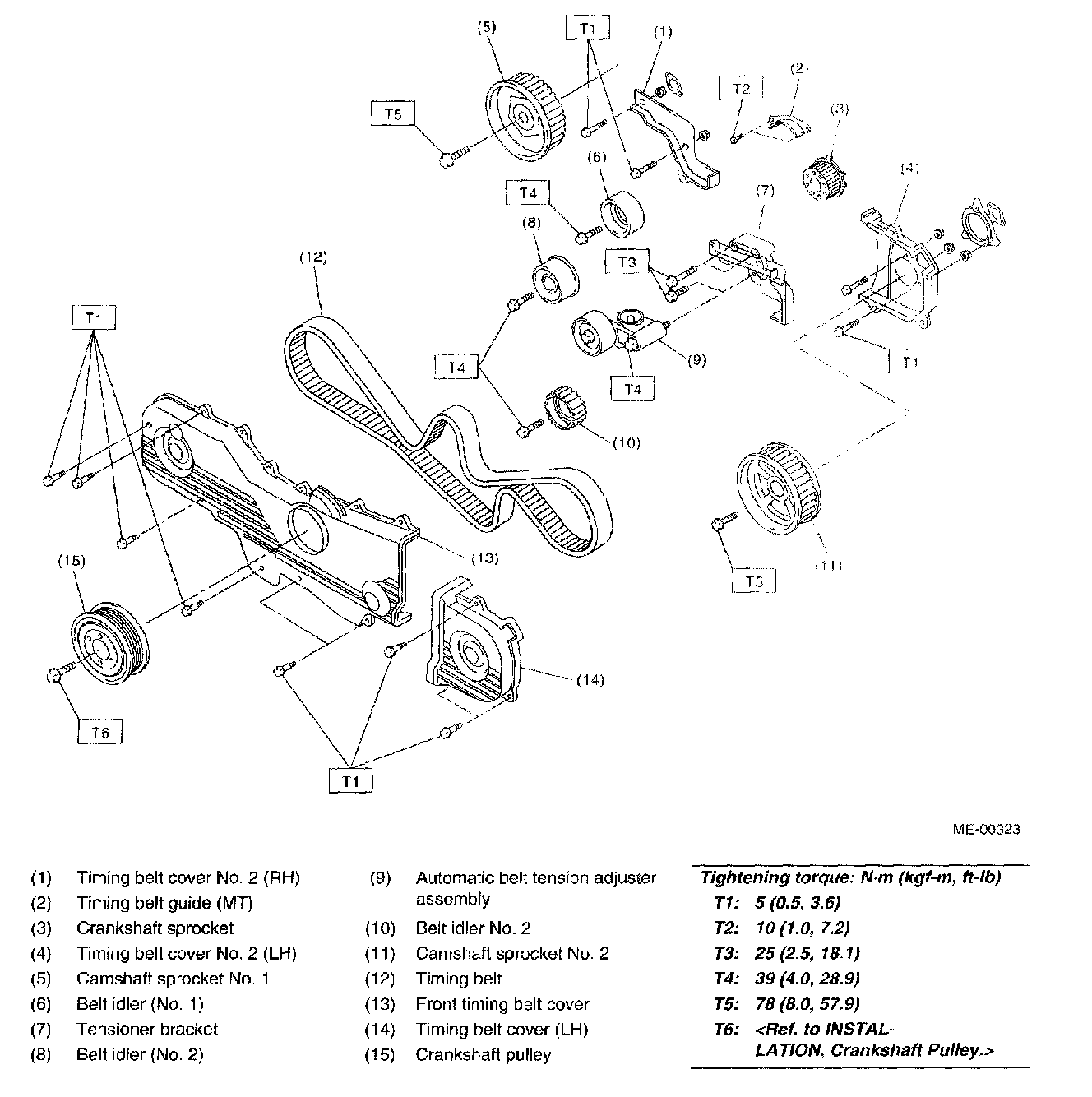

TIMING BELT

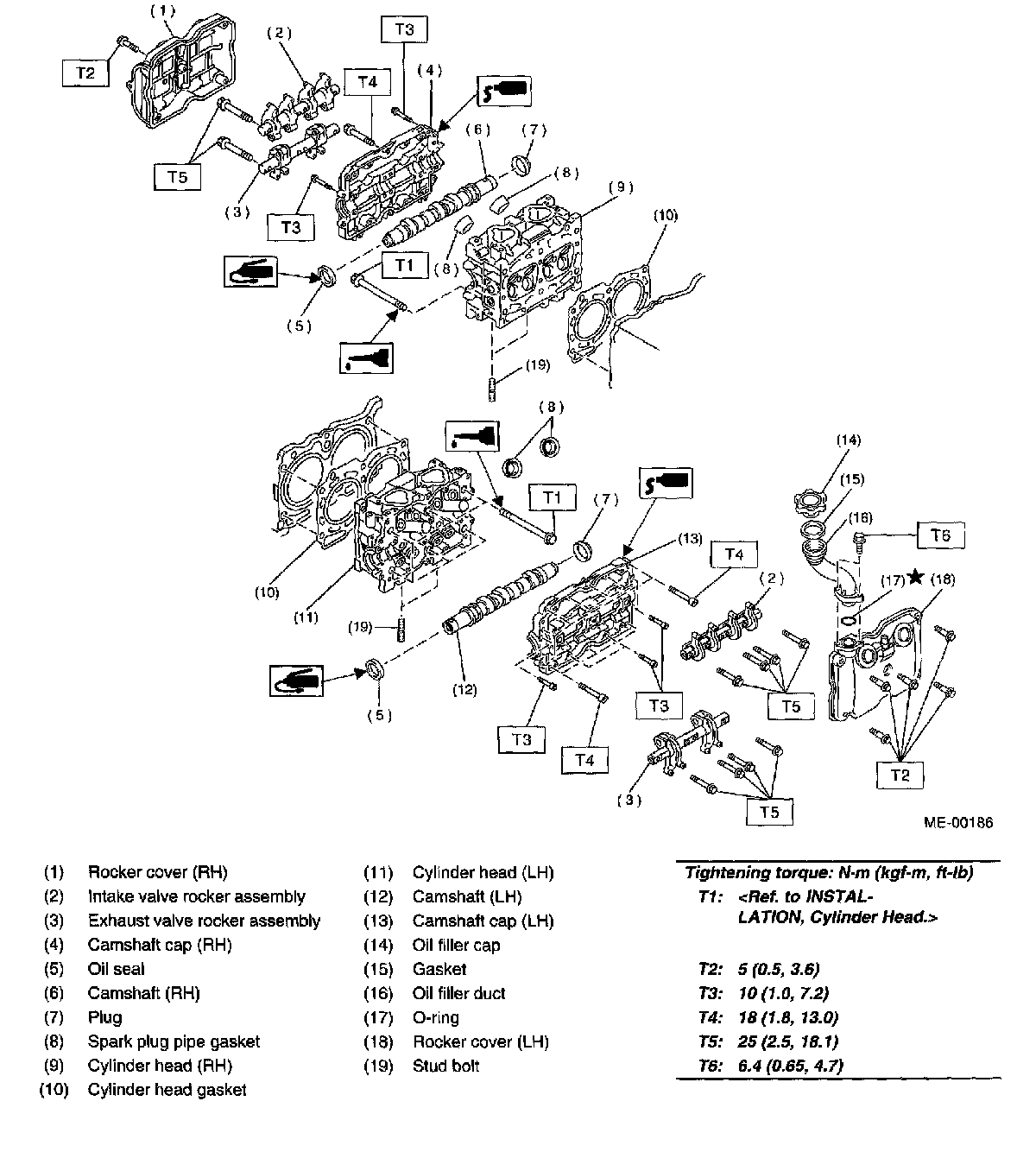

CYLINDER HEAD AND CAMSHAFT

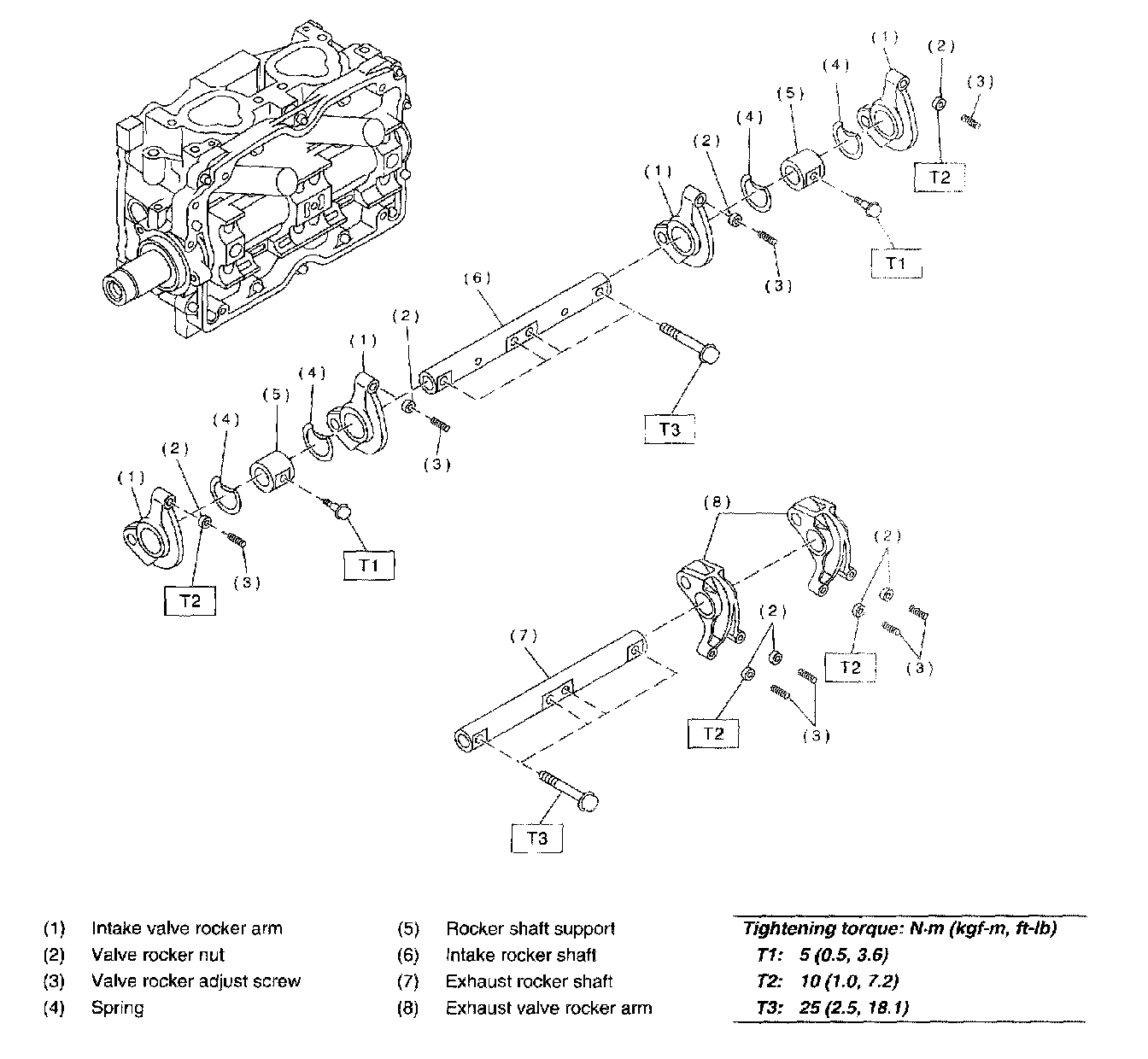

VALVE ROCKER ASSEMBLY

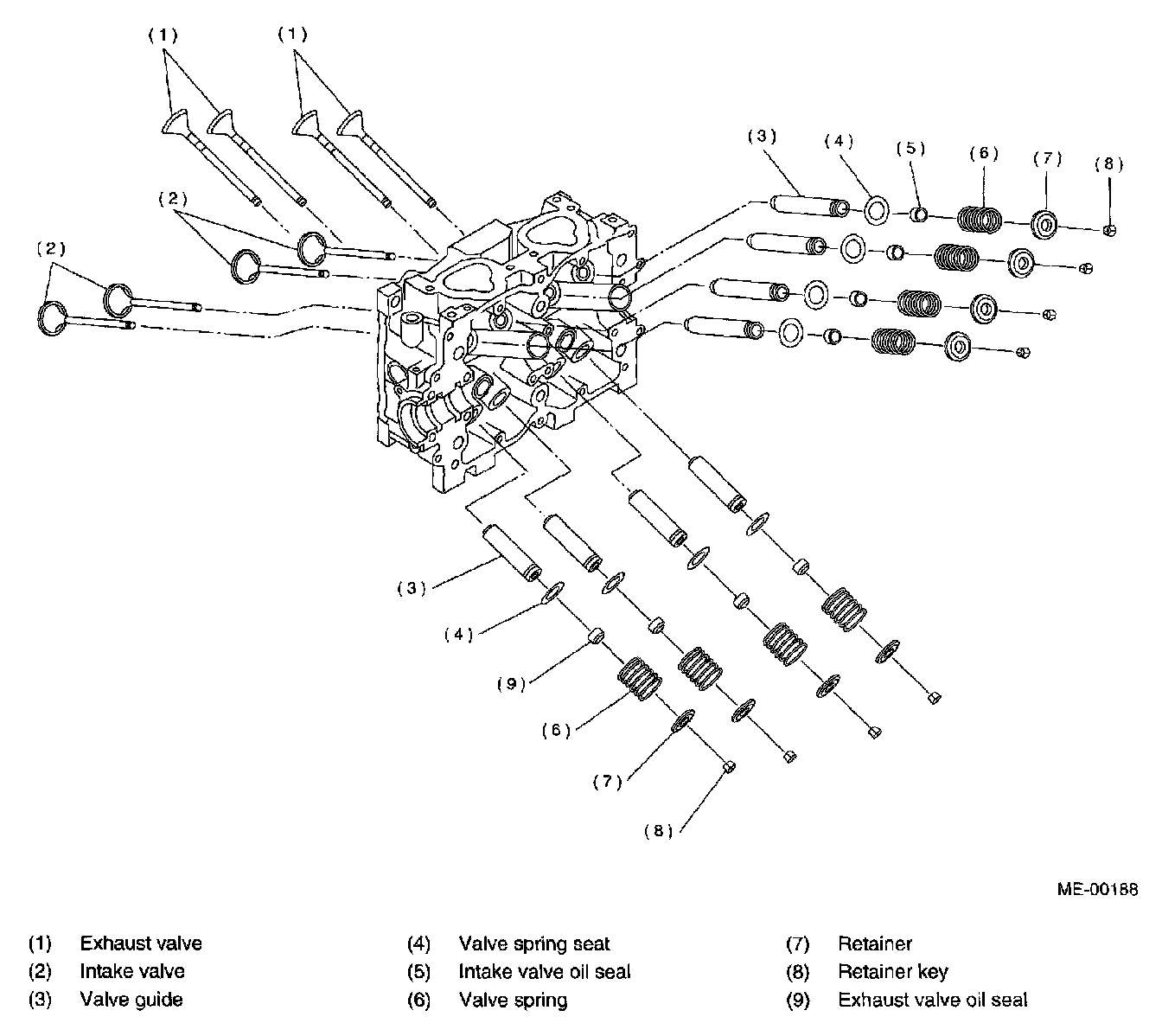

CYLINDER HEAD AND VALVE ASSEMBLY

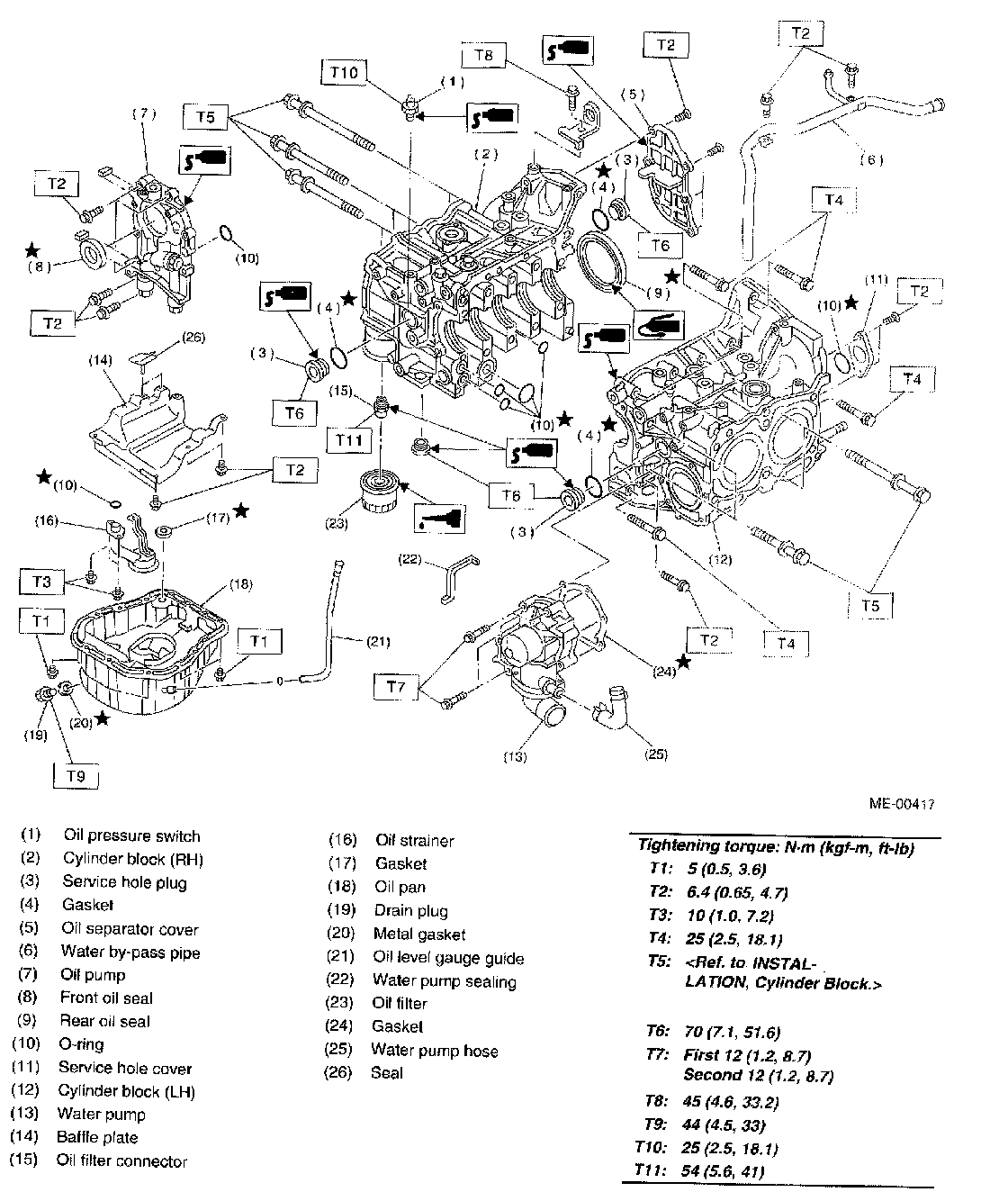

CYLINDER BLOCK

Part 1 Of 2:

Part 2 Of 2:

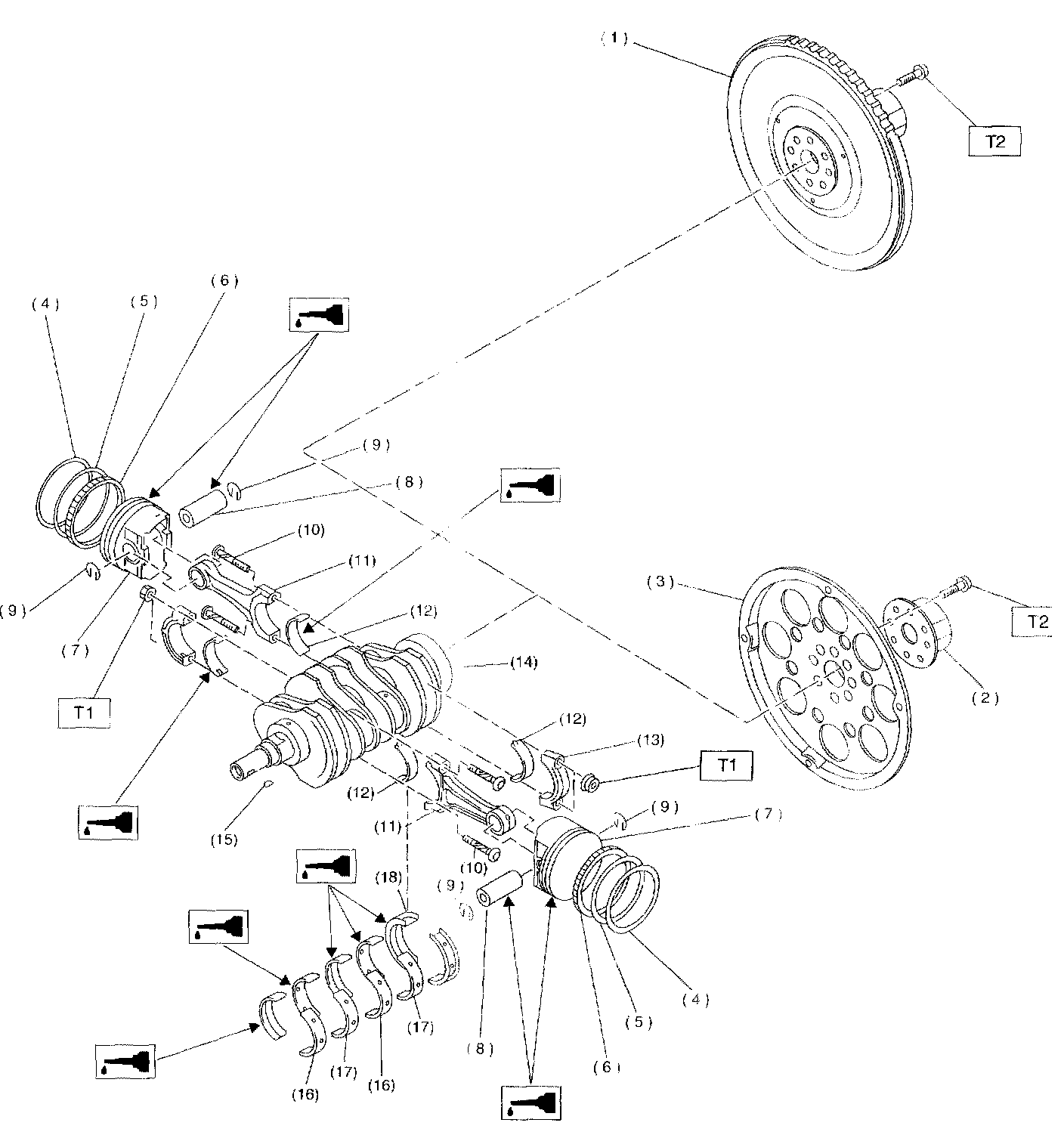

CRANKSHAFT AND PISTON

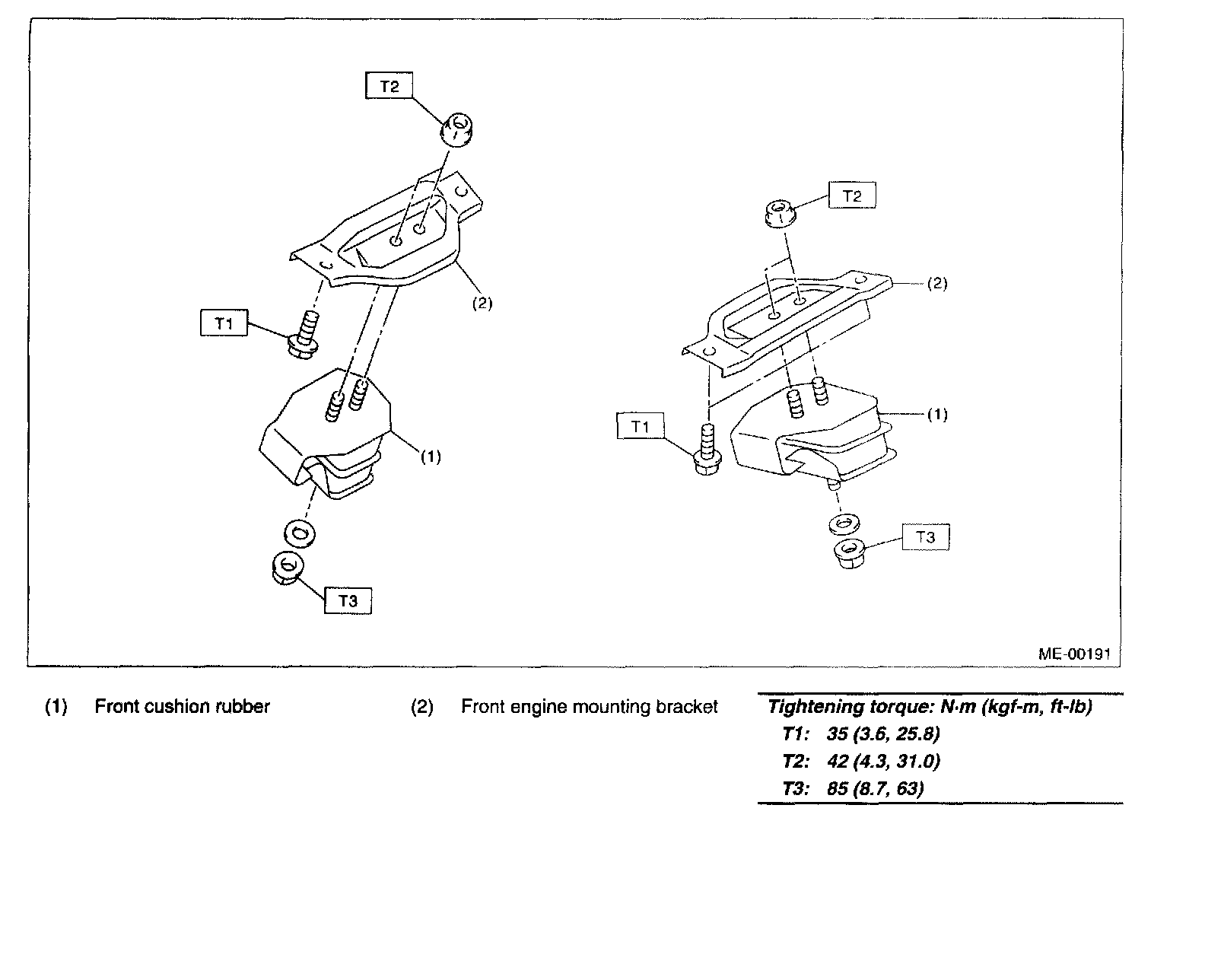

ENGINE MOUNTING
