Control Assembly: Service and Repair

Control Unit

REMOVAL




1. Disconnect the ground terminal from battery.
2. Remove the glove box.
3. Remove the lower panel.

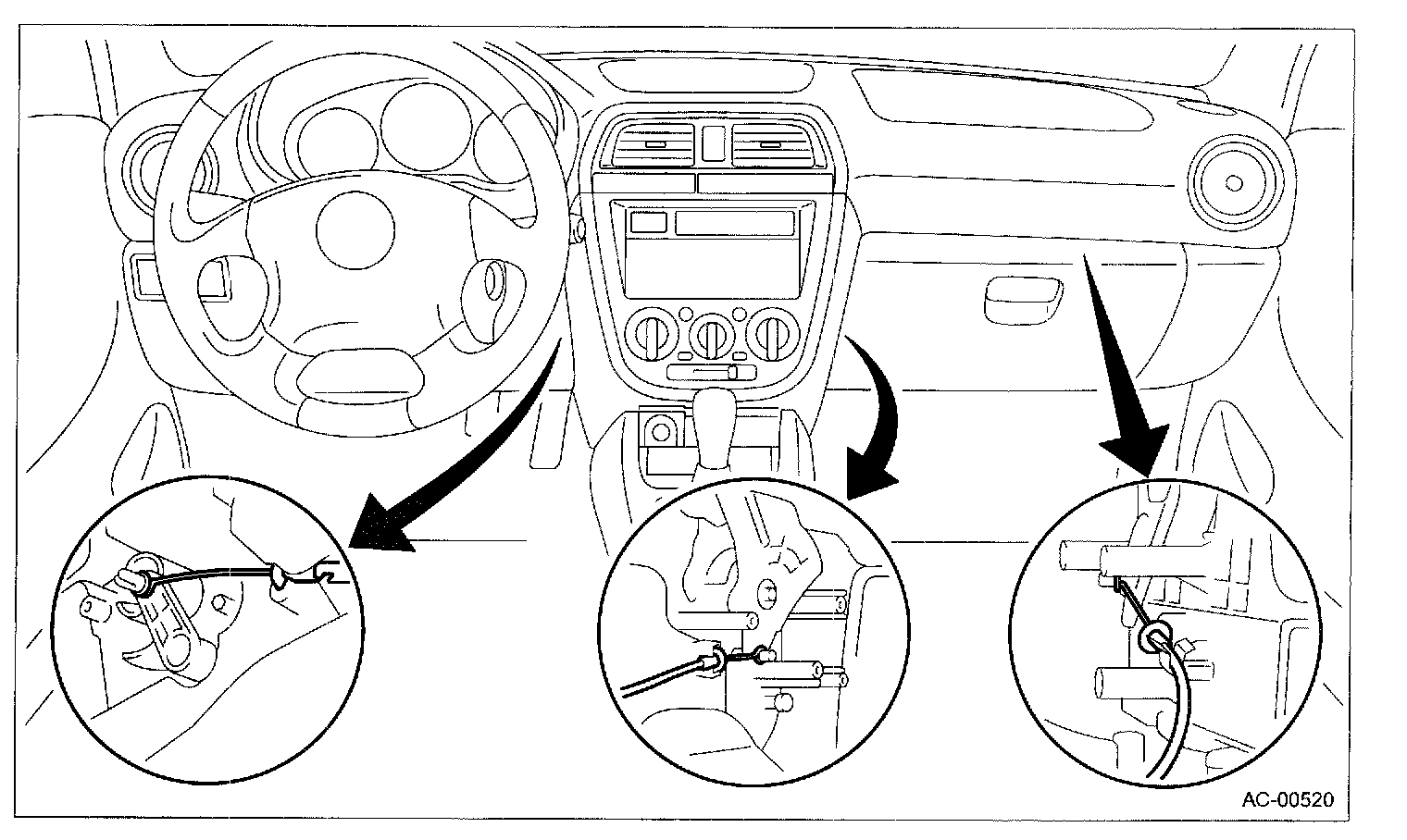

4. Remove the control wires.




5. Remove the center console panel.




6. Remove four screws.
7. Pull out the control unit and disconnect connectors.

INSTALLATION
Install in the reverse order of removal.
