Fuse Block: Locations

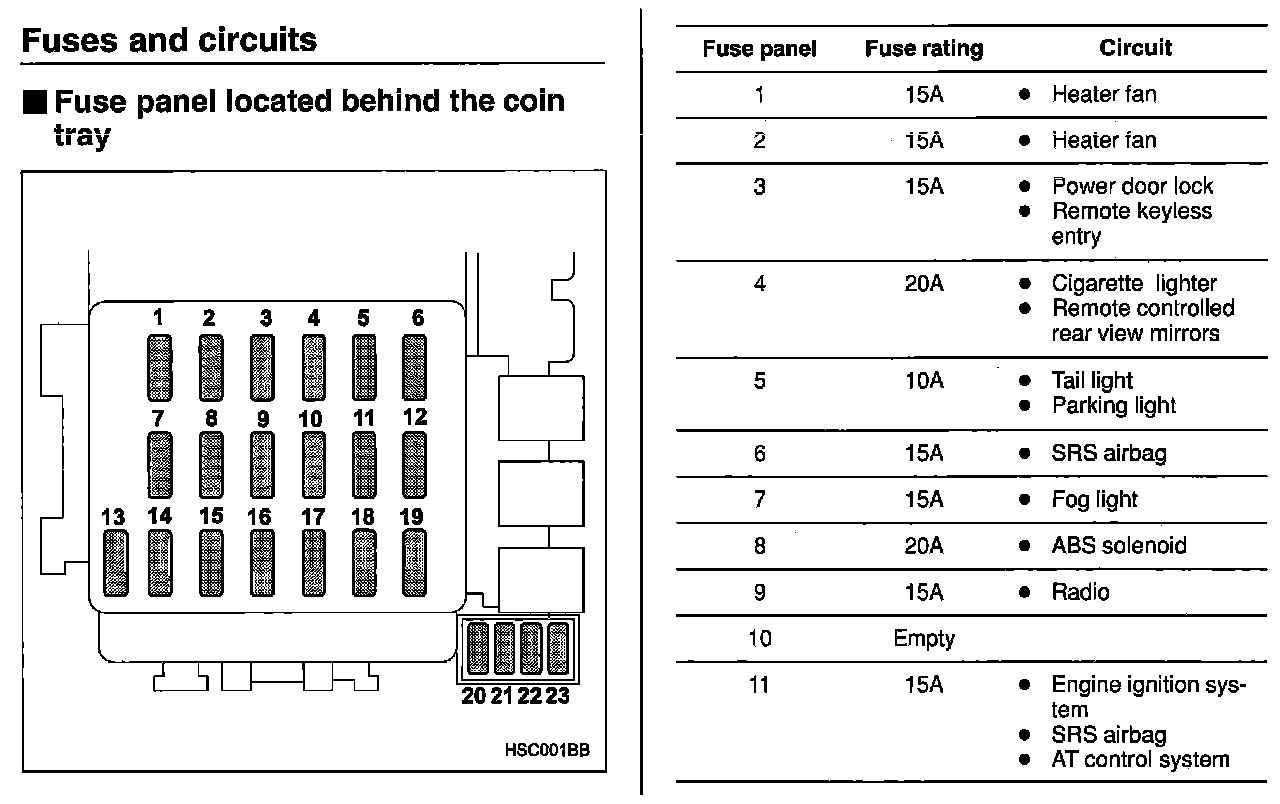

Fuse Panel Located Behind Coin Tray:







Fuse Box Locations

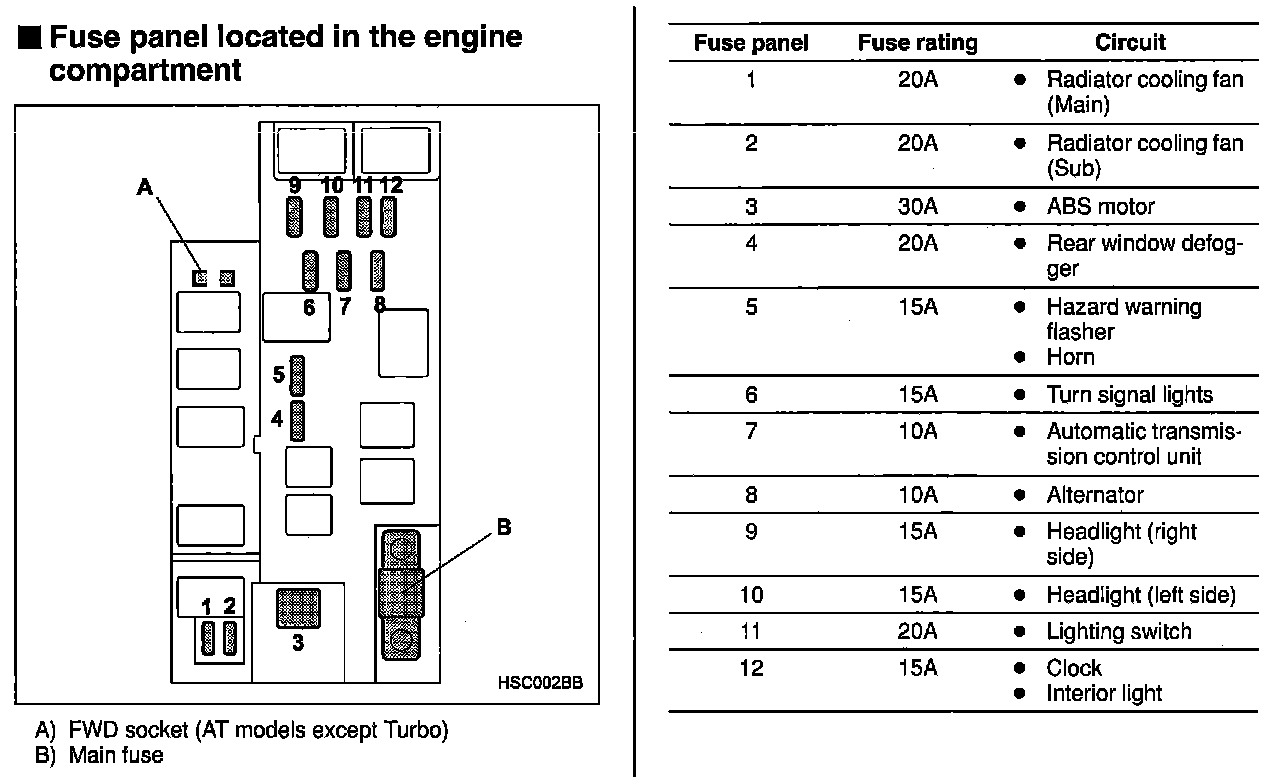

Main Fuse Box (M/B):




Fuse And Relay Box (F/B):




Fuse Panel Details
